TPON Solar Powered Submersible Fountain Garden Solar Water Pump Livestock |Factory in China
group name4 Inch Solar Well Pump with Plastic Impeller
-
Min Order1 piece
brand nameTOPN Solar Water Pump Manufacturer
model4TPPC- HV Series
payment methodL/C, T/T, Paypal
-
update timeSat, 06 Dec 2025 21:13:10 GMT
Paramtents
Material Stainless steel and plastic
Type Plastic impeller type solar well pump
Certificate CE, ISO9001
Warranty 18 months
MOQ 1 set
Packging & Delivery
Size103cm x23cm x13cm
Weight13kg / piece
Min Order1 piece
Briefing
4 Inch Solar Powered Submersible Pump with Plastic Impeller is used for livestock drinking water,agriculture irrigation etc.
Detailed
Advantages of Best Solar Powered Submersible Water Pump:
1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
5. Our solar water pump is comparable to grundfos and franklin solar submersible bore water pump.
TECHNICAL DATA
| NO. | Model | Power(w) | (AC）Voltage(V) | (DC) Optimum input Voltage (V) | Max flow(m³/h) | Max head(m) | Outlet(inch) | |
| 136 | 4TPPC4.5-80-110-750-HV | 750 | / | 110-350 | 4.5 | 80 | 1.25″ | |
| 137 | 4TPPC5-105-110-1100-HV | 1100 | / | 110-350 | 5 | 105 | 1.25″ | |
138 | 4TPPC6-56-110-750-HV | 750 | / | 110-350 | 6 | 56 | 1.25″ | |
139 | 4TPPC6.5-86-110-1100-HV | 1110 | / | 110-350 | 6.5 | 86 | 1.25″ | |
| 140 | 4TPPC6.5-112-110-1300-HV | 1300 | / | 110-350 | 6.5 | 112 | 1.25″ | |
141 | 4TPPC6.5-135-150-1500-HV | 1500 | / | 150-350 | 6.5 | 135 | 1.25″ | |
142 | 4TPPC9-45-110-750-HV | 750 | / | 110-350 | 9 | 45 | 2″ | |
143 | 4TPPC9-58-110-1100-HV | 1100 | / | 110-350 | 9 | 58 | 2″ | |
144 | 4TPPC9-71-110-1300-HV | 1300 | / | 110-350 | 9 | 71 | 2″ | |
145 | 4TPPC9-85-150-1500-HV | 1500 | / | 150-350 | 9 | 85 | 2″ | |
146 | 4TPPC13-36-110-750-HV | 750 | / | 110-350 | 13 | 36 | 2″ | |
147 | 4TPPC13-49-110-1100-HV | 1100 | / | 110-350 | 13 | 49 | 2″ | |
148 | 4TPPC13-54-110-1300-HV | 1300 | / | 110-350 | 13 | 54 | 2″ | |
149 | 4TPPC13-60-150-1500-HV | 1500 | / | 150-350 | 13 | 60 | 2″ | |
150 | 4TPPC17-48-150-1500-HV | 1500 | / | 150-350 | 17 | 48 | 2″ | |
164 | 4TPPC7-185-200-2200-HV | 2200 | / | 200-350 | 7 | 185 | 1.25″ | |
167 | 4TPPC9.5-125-200-2200-HV | 2200 | / | 200-350 | 9.5 | 125 | 2″ | |
170 | 4TPPC12-150-200-2200-HV | 2200 | / | 200-350 | 12 | 150 | 2″ | |
173 | 4TPPC14-125-200-2200-HV | 2200 | / | 200-350 | 14 | 125 | 2″ | |
180 | 4TPPC30-50-200-2200-HV | 2200 | / | 200-350 | 30 | 50 | 2″ | |
183 | 4TPPC36-45-200-2200-HV | 2200 | / | 200-350 | 36 | 45 | 3″ | |

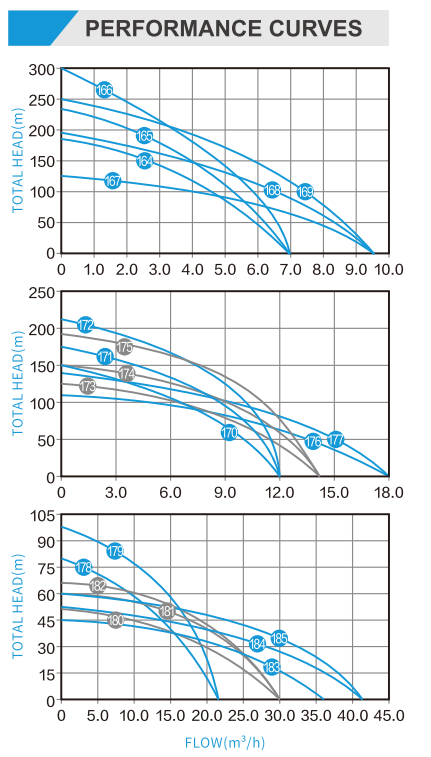

PERFORMANCE CURVES
Applications of Compass Solar Pump System Design Software:
1. Solve domestic drinking water
2. Small scale service industries
3. Irrigation in horticulture & agriculture
How to Choose the Correct Solar Water Pump?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank
Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
