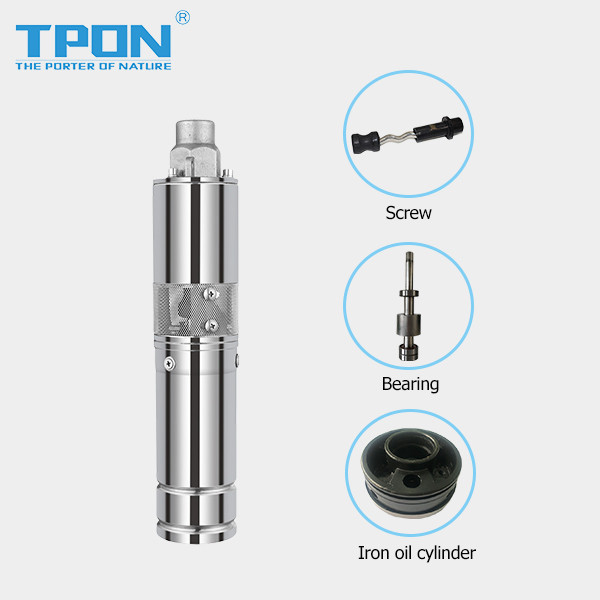

4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply
4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply

4 Inch Brushless Screw Water Pump |Solving Domestic Drinking Water and Agriculture Water Problems |Environmentally friendly, energy efficient and stable water supply

  • group name4 Inch Brushless Screw Solar Pump

  • Min Order1 piece

  • brand nameTOPN Solar Water Pump Manufacturer

  • model4TPS Series

  • payment methodL/C, T/T, Paypal

  • update timeFri, 05 Dec 2025 16:32:56 GMT

contact supplier

Paramtents

  • Material Stainless steel

  • Type Screw type solar well pump

  • Certificate CE, ISO9001

  • Warranty 18 months

  • MOQ 1 set

Packging & Delivery

  • Min Order1 piece

Briefing

Screw solar water well pump is characterized by high head and small flow, suitable for solving domestic drinking water problem.

Detailed

PRODUCT DESCRIPTION
CONNECTION DRAWING
PRODUCT PACKAGING
AFTER-SALES SERVICE AND STOCK
Advantages of 12V to 72V DC Solar Well Screw Pump :
1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
TECHNICAL DATA
NO.
Model
Power(w)
Voltage(v)
     Optimum input        Voltage(DC)
Max flow(m³/h)
Max head(m)
Outlet(inch)
6
4 TPS 2.6-70-48-500
500
48
60-90V
2.6
70
1″
7
4 TPS 2.6-103-48-600
600
48
60-90V
2.6
103
1″
8
4 TPS 3.7-112-72-750
750
72
90-120V
3.7
112
1″
PERFORMANCE CURVES
3TPS TECHNICAL DATA
Applications of Best Bermuda Solar Panel Pond Pump:
1. Solve domestic drinking water
2. Small scale service industries
3. Gardens or fountains
How to Choose the Correct Off Grid Solar Waster Pump mahadiscom?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
Tpon Solar Pump
How to Connect the Solar Water Pump
Tpon Solar Pump
Tpon Solar Pump
Working Environment and Electrical Property
Controller and Pump Matching Method
Controller Model
Adaptable Pump
Max. Input Current(A)
Max. Open Circuit Viltage(V)
Optimun MPPT Voltage Range(V)
Working Temperature(°C)
TP-24
Rated 24V pump
17
<50
30-48
-15-60
TP-48
Rated 48V pump
17
<100
60-90
-15-60
TP-72
Rated 72V pump
17
<150
90-120
-15-60
TP-96
Rated 96V pump
17
<200
110-150
-15-60
TP-72-A/D
Rated 72V pump
17
<430
100-350
-15-60
TP-110-A/D
Rated 72V pump
17
<430
100-350
-15-60
TP-200-A/D
Rated 72V pump
17
<430
200-350
-15-60
TP-245-A/D
Rated 72V pump
17
<430
245-350
-15-60
TP-300-A/D
Rated 72V pump
17
<430
300-350
-15-60
TP-520-A/D
Rated 72V pump
17-56
<430
520-650
-15-60
TP-110-HV
Rated 72V pump
17
<430
110-350
-15-60
TP-200-HV
Rated 72V pump
17
<430
200-350
-15-60
TP-245-HV
Rated 72V pump
17
<430
245-350
-15-60
Tpon Solar Pump
A set of specifications (Package include):

DC brushless solar Pump with 2m cable *1
Pump controller with MPPT function*1
Installation kit bag*1  (Inlucde teflon tape,insulation tape,heat-shrinkable tube,screwdriver,screw and nut,connection terminal)
Tpon Solar Pump
Tpon Solar Pump
About after-service：

 1. We provide 1 years warranty for solar pumps and MPPT controllers.

 2.  We will recommend the suitable solar panels for each solar pump.

 3.  Any installation question, we will provide the connection diagram or installation video for your reference.

 4.  Any installation question, we will provide the connection diagram or installation video for your reference.
Tpon Solar Pump
About stock：

 1.  We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.

 2.  If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
