Automatic Butt Fusion Machine V200CNC20 63MM-200MM (2" IPS - 6" IPS)
group nameAutomatic Butt Fusion Machines
-
Min Order1 set
brand nameRIYANG
modelV200 CNC 2.0
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 19:40:59 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1 set
Working Range in mm 63mm - 200mm
Working Range in inch 2" - 6"IPS
Working Pressure Range 0 - 80Bar
HDPE Welding Standard Applied ISO21307, DVS2207 etc
Operation Type Automatic
Packging & Delivery
Min Order1 set
Briefing
V200CNC20 is an automatic butt fusion welding machine suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Detailed
Automatic Butt Fusion Machine V200CNC20 63MM-200MM (2" IPS-6" IPS)
The RIYANG CNC2.0 is a premium, high-stability automatic butt fusion machine powered by a Siemens PLC. It is manufactured to meet rigorous standards including ISO 12176-1 for butt-fusion welding of thermoplastic pipes and the EU Machinery Directive 2006/42/EC.
The system supports pre-programmed welding standards conforming to major industry standards such as DVS, ISO, and ASTM. Custom standards can be incorporated on demand.
Welding records can be exported via USB, saved as PDF, and key parameters (time, operator, standard, welding result) can be printed on adhesive labels for on-site traceability. The machine’s memory supports storing up to 10,000 weld logs.
During welding, the system provides real-time alerts if key parameters—voltage, temperature, or pressure—are outside specified ranges, enabling immediate corrective action and maximizing weld integrity.
Welding parameters can be tailored to specific pipe materials and ambient conditions, enhancing flexibility and ensuring optimal weld results under varied conditions.
Backed by a 2-year industry-leading warranty.
|
Product Details
|
|||
|
Welding Range O.D. (mm)
|
63mm - 200mm
|
Welding Range O.D. (inch)
|
2" IPS -6" IPS
|
Power Supply | 220V±10%, 50/60HZ | Temperature Range | Max. 280℃ |
Heater Power | 1.5 KW | Packing Dimension | 820*400*440 MM |
|
Trimmer Power
|
0.75 KW
|
450*470*550 MM
|
|
|
Pump Power
|
1.1 KW
|
650*340*380 MM
|
|
Working Pressure Range | 0 - 80 BAR | Gross Weight | 156 KG |

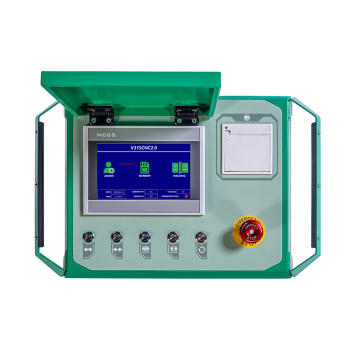

Integrated User Interface
Features a unified control panel that enhances operator efficiency and minimizes errors. Mechanical push-buttons are accompanied by status indicator lights, allowing real-time monitoring of the machine's operating status.
Versatile Control Box
One control box is compatible with machine models 160, 200, 250, 315, and 355, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.
Effortless Drag Pressure with Just One Click
Remote Diagnostics & Firmware Upgrades
