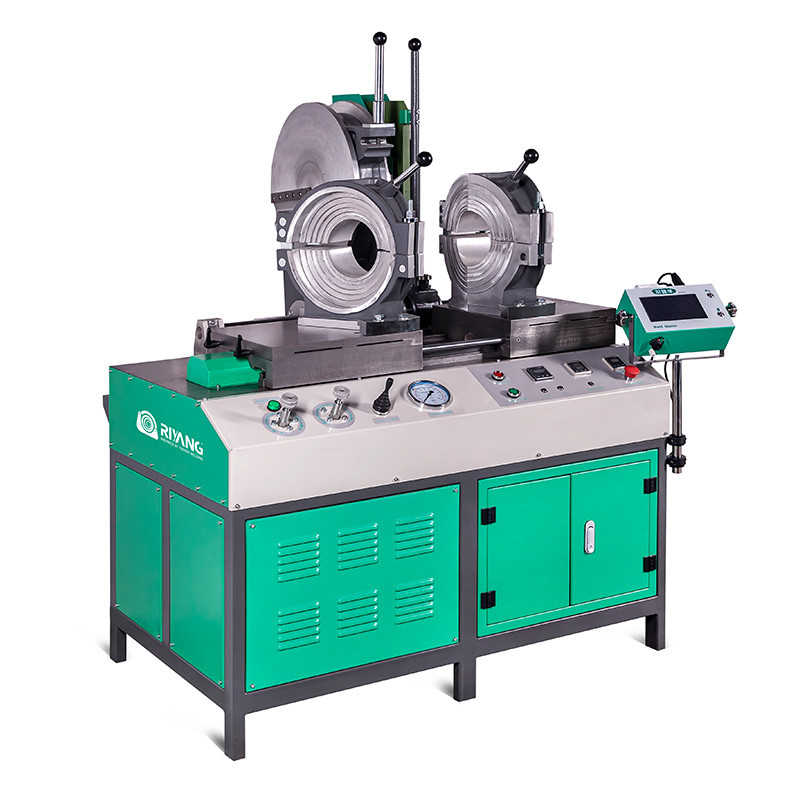

Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
group nameFitting Fabrication Machines
-
Min Order1 set
brand nameRIYANG
modelATLA315E
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 14:25:18 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1 set
Working Range in mm 90mm - 315mm
Working Range in Inch 3" IPS - 12" IPS
Fabricated Fitting Type Bend, Tee, Cross & Wye
Weldable Materials HDPE, PP, PVDF etc.
Fusion Welding Standard Applied ISO21307, DVS2207, ASTM F2620 etc.
Packging & Delivery
Min Order1 set
Briefing
Compact and reliable, the Riyang ATLA315 is a cost-effective butt fusion machine for fabricating HDPE fittings up to 315mm. Ideal for workshops and small-scale projects, it features manual control with hydraulic-powered trimmer movement and supports elbows, tees, and wyes.
Detailed
Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
The ATLA315E is a robust and cost-effective manual HDPE fitting fabrication machine designed to produce high-quality plastic fittings, including elbows, tees, crosses, and wyes. Suitable for pipe sizes ranging from 90mm to 315mm, this machine is ideal for workshop-based fabrication of fittings made from HDPE, PP, and PVDF.
Specifically engineered to meet the demands of utility contractors and plastic pipeline fabricators, the ATLA315E offers precise manual control, a durable structure, and a user-friendly interface for small to medium-diameter fabrication needs.
Technical Specifications | |
| Welding Range in mm | 90mm - 315mm |
Welding Range in inch | 3" IPS - 12" IPS |
Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
Applicable Materials | HDPE, PP, PVDF |
| Control System | Manual |
| Power Supply | 380V, 50HZ |
| Total Power Consumption | 7.25 KW |
Multi-Fitting Capability
> Fabricates elbows, tees, crosses and wyes (90–315mm) with precision using adjustable clamp sets.
Manual Control System
> Reliable and intuitive manual operation allows the welder to manage key welding steps and fine-tune pressure and alignment.
Stable Heating System
> Equipped with a durable, Teflon-coated heating plate offering consistent thermal performance and quick heat-up cycles.
Compact and Portable
> The machine’s small workshop footprint and modular design make it easy to position, operate, and maintain.
- Wyes clamps covering ranges φ90 to φ315 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Top fasten cylinder
- Data logger
- CNC system
