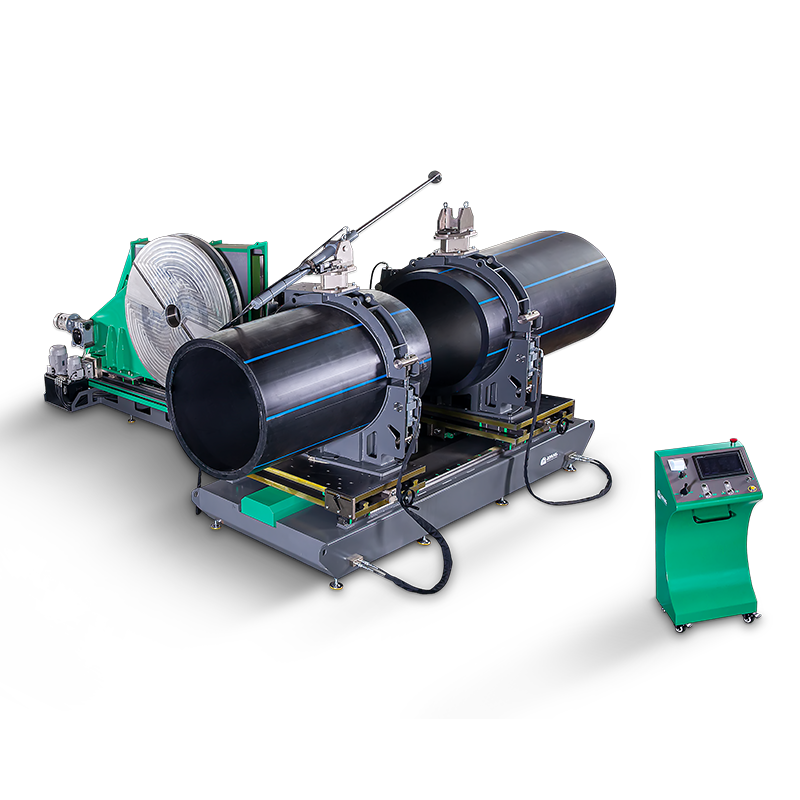

Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)
group nameFitting Fabrication Machines
-
Min Order1 set
brand nameRIYANG
modelATLA2000 CNC
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 15:19:13 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1 set
Working Range in mm 1200mm - 2000mm
Working Range in Inch 48" IPS - 78" IPS
Fabricated Fitting Type Bend, Tee, Cross & Wye
Weldable Materials HDPE, PP, PVDF etc.
Fusion Welding Standard Applied ISO21307, DVS2207, ASTM F2620 etc.
Packging & Delivery
Min Order1 set
Briefing
ATLA2000 CNC is a heavy-duty HDPE fitting fabrication machine designed for welding elbows, tees, crosses, and wyes up to 2000mm in diameter.
Detailed
Overview
The ATLA2000CNC is Riyang's flagship CNC-controlled HDPE fitting fabrication machine, engineered for precision and efficiency in fabricating large-diameter thermoplastic fittings. Designed to handle pipe sizes ranging from 1200mm to 2000mm, this machine is ideal for producing elbows, tees, crosses, and wyes in HDPE, PP, and PVDF materials.
| Technical Specifications | |
Welding Range in mm | 1200mm - 2000mm |
Welding Range in inch | 48" IPS - 78" IPS |
Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
| Applicable Materials | HDPE, PP, PVDF |
| Control System | Manual or Automatic |
| Power Supply | 380V, 50Hz |
Total Power Consumption | 260 KW |
Intelligent CNC Control System with IoT Integration
> Equipped with a fully automatic CNC control panel, the ATLA2000CNC simplifies the entire welding process.
> Operators can set SDR, pipe diameter, and welding standards—after which the system executes the welding process automatically.
> Built-in memory records every welding cycle and allows data to be exported via USB or directly printed.
> Integrated IoT module supports remote diagnostics, software upgrades, and real-time technical assistance.
Servo Motor Technology and Cost-Effective Maintenance
> Both the heater and trimmer are powered by servo motors for precise, fast, and quiet movements.
> Patented insert-in heating element design allows replacing only the broken element instead of the whole heater—cutting down maintenance costs significantly.
> The high-strength trimmer plate features dual blades on one side, ensuring clean and efficient facing.
>The enhanced CNC program enables full welding traceability and a user-friendly interface.
Robust Mechanical Design and Global-Grade Components
> Heavy-duty machine frame, powder-coated for corrosion resistance.
> Core parts sourced from world-renowned suppliers, like Siemens, Wika, Schneider, Dupont, etc.
> Backed by an industry-leading 2-year warranty.
- Wyes clamps covering ranges φ1200 to φ2000 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Safety fence
