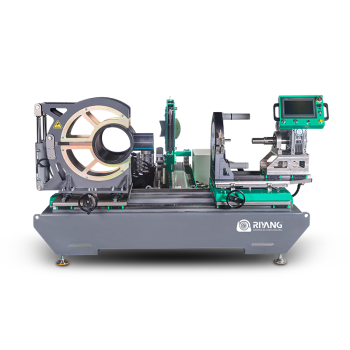

Saddle Fusion Machine MAX1200i
group nameSaddle Fusion Machines
-
Min Order1 set
brand nameRIYANG
modelMAX1200i
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 26 Sep 2026 20:43:47 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Pallet
MOQ 1set
Model MAX630i
Item Code 702309122
Welding Range / Main Pipe φ630-1200mm, φ24-48" IPS
Welding Range / Outlet Pipe φ315-630mm, φ12-24" IPS
Operation Mode Automatic
Packging & Delivery
Min Order1 set
Briefing
MAX1200i is designed to fabricate HDPE reducing tee with various pipe specifications.
Detailed
Saddle Fusion Machine MAX1200i
MAX1200i is designed to fabricate reducing tee with various pipe specifications.
This largely fills a vacancy in the coordination of different pipe diameters, which should be applied to special projects.
|
Product Details
|
|||
|
WELDING TYPE
|
SADDLE T TYPE
|
APPLIED MATERIAL
|
PE/PP/PVDF
|
APPLICABLE ENVIRONMENT TEMPERATURE | -10℃~ 45℃ | VOLTAGE | AC 380V, 50/60HZ |
|
MAX1200i Standard Configuration Table (Unit: mm)
|
|||||||
BRANCH \MAIN | 560 | 630 | 710 | 800 | 900 | 1000 | 1200 |
|
160
|
√
|
- | - | - | - |
-
|
-
|
200 | √ | √ | √ | - | - | - | - |
225 | √ | √ | √ | √ | - | - | - |
250 | √ | √ | √ | √ | √ | - | - |
280 | √ | √ | √ | √ | √ | √ | - |
315 | - | √ | √ | √ | √ | √ | √ |
355 | - | - | √ | √ | √ | √ | √ |
400 | - | - | - | √ | √ | √ | √ |
450 | - | - | - | - | √ | √ | √ |
500 | - | - | - | - | - | √ | √ |
560 | - | - | - | - | - | - | √ |
630 | - | - | - | - | - | - | √ |
Featured by
- Suitable for fabricating an HDPE reducing tee in a workshop. The integrated function of welding and taping enables the completion of the whole fabricating process.
- A Teflon-coated heating plate.
- Separate two-channel timer records times in soaking and cooling phases.
- Digital high-accuracy pressure meter indicates exact readings.
- Linear guide ways are equipped with a heating plate and a dragging plate.
