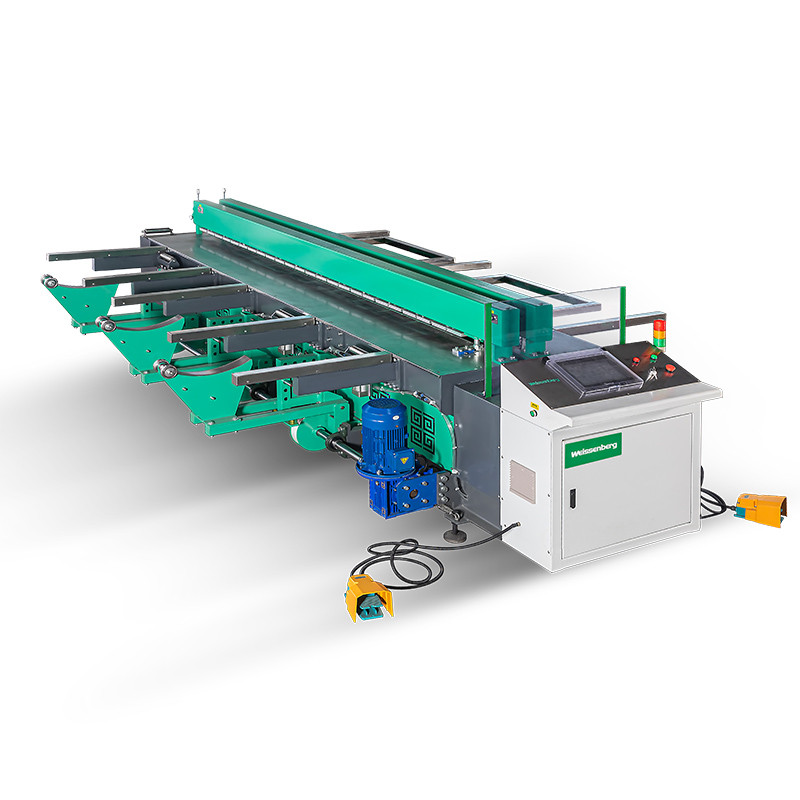

Plastic Sheet Butt Welding Machine RPH Series
group namePlastic Sheet Welding Machines
-
Min Order1 set
brand nameRIYANG
modelRPH1500, RPH2000, RPH3000, RPH4000, RPH4500, RPH5000, RPH6000, RPH7000
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 16:20:04 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1set
Power Pneumatic
Category Plastic Sheet Welding
Weldable Material HDPE, PP, PVC, PVDF sheet, etc
Welding Type Butt Welding
Applicable Sheet Thickness 3mm-60mm
Operation Automatic
Packging & Delivery
Min Order1 set
Briefing
Designed for efficiency and precise. The plastic sheet butt welding machine RPH Series are applied for manufacturing water tanks and containers, plastic devices and etc.
Detailed
Plastic Sheet Butt Welding Machine RPH Series Overview
The RPH series features a robust steel frame designed for welding HDPE, PP, PVC and other thermoplastic sheets. Key components from Mitsubishi (PLC), SMC (cylinders), and Omron (temperature controllers) are precisely matched to ensure stable and reliable welding performance. The reinforced worktable enhances flexural strength, the high-density locking clamps ensure even pressure distribution, and the independent centering structure guarantees precise sheet alignment, maintaining stable weld quality even during long production runs. The series supports sheet thicknesses from 3–40 mm, with options for 60 mm and above available on request, and working widths from 1500–6000 mm (customizable up to 7000 mm). The intuitive operator interface allows efficient process control and easy operation.
Welding Diagram
Product Specifications
|
Model
|
RPH1500 | RPH2000 |
RPH3000
|
RPH4000
|
RPH5000 | RPH6000 | RPH7000 | |
Max. Working Length (mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | |
Sheet Thickness (mm) | 3 - 15 | 3 - 20 | 3 - 40 | |||||
Min. Cylinder Dia. (mm) | 250 | 350 | 450 | 450 | 700 | 700 | 750 | |
Min. Channel Cross Section (mm) | 200 x 220 | 250 x 270 | 320 x 350 | 320 x 370 | 420 x 450 | 420 x 450 | 420 x 470 | |
Compressed Air Pressure (bar) | 4 - 8 | |||||||
Heating Element (mm), Teflon Coated, Temp Max. = 260 ℃ | 1750 x 85 x 20 | 2250 x 85 x 20 | 3250 x 85 x 20 | 4250 x 85 x 20 | 5250 x 85 x 20 | 6250 x 85 x 20 | 7250 x 85 x 20 | |
Power Supply | 230V, 50/60Hz | 230/400V, 3/N/PE, 60/60HZ | ||||||
Rated Power (kw) | 3 | 3.5 | 7.2 | 7.8 | 8.5 | 11 | 13 | |
Machine Dimension (mm) | 2150x600x1200 | 3050x2000x1200 | 4750x2500x1200 | 5750x2500x1200 | 6750x2500x1200 | 7750x2500x1200 | 8750x2500x1200 | |
Features
Featured by
· Heating plate with ±5°C precision, reliable for large sheets and changing environments.
· Synchronized steel structure of the worktable ensures even pressure distribution across the welding width.
· High-density locking clamps for precise sheet positioning and secure welds.
· Mitsubishi PLC control system for automated welding sequence and parameter management.
· Welding process complies with DVS 2207 temperature and quality standards.
· 3mm-40mm welding ability, special welding thickness up to 60mm.
· Welding parameters can be saved for quality tracking and traceability.
Available Options
· 90° vertical welding accessory
· Rolling welding accessory
· Remote control (with cable)
· Signal horn
· USB interface to document the welding data on a USB stick
