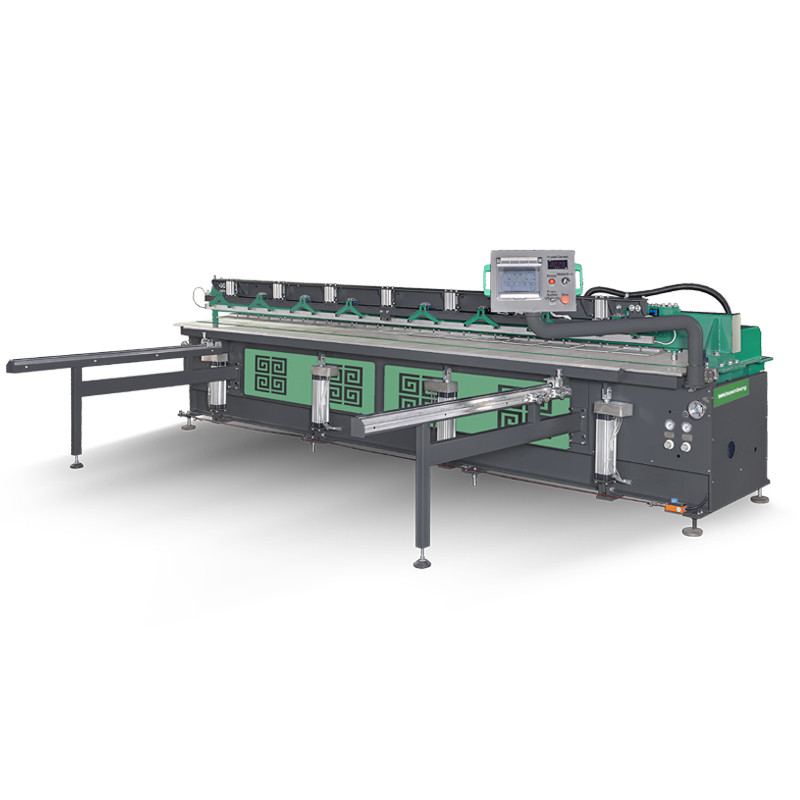

Plastic Sheet Bending Machine RZW Series
group namePlastic Sheet Welding Machines
-
Min Order1 set
brand nameRIYANG
modelRZW1500, RZW2000, RZW3000, RZW4000, RZW4500, RZW5000, RZW6000, RZW7000
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 04:20:44 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1set
Maximum Bending Width 7000mm
Maximum Bending Thickness 25mm
Bending Angle 5°-95°
Standard Applied DVS2207
Applicable Materials PE, PP, PVDF, PVC, ABS etc
Working Type Bending Thermoplastic Sheet
Operation Mode Semi - Automatic
Packging & Delivery
Min Order1 set
Briefing
A plastic sheet bending machine is a precision-engineered solution designed for forming thermoplastic sheets with consistent accuracy and repeatability.
Detailed
Plastic Sheet Bending Machine RZW Series Overview
The RZW series bending machines are specially designed for HDPE, PP, PVC, and other thermoplastic sheets. Equipped with a V-shaped heating knife and lower heating plate, it provides uniform heating and precise bending angles. For applications where melting area is not required, a flat heating knife with lower plate can be optionally used, maintaining bending strength while offering greater operational flexibility.
The semi-automatic interface is simple and intuitive, making operation easy and adaptable to various sheet thicknesses and sizes. With a compact structure suitable for both factory and on-site use, the machine ensures stable bending quality with high repeatability.
Ideal for manufacturers of tanks, ventilation systems, environmental equipment and custom plastic assemblies, the machine provides reliable performance for continuous workshop use. Its adjustable heating zones, robust clamping systems, and compatibility with a wide range of sheet thicknesses make it an essential tool for any professional plastic fabrication environment.
Bending Diagram
Product Specifications
|
Model
|
RZW1500
|
RZW2000
|
RZW3000 | RZW4000 | RZW5000 | RZW6000 | RZW7000 | |
Max. Bending Length (mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | |
Bending Sheet Thickness (mm) | 3 -15 | 3 -20 | 3 -25 | |||||
Bending Angle Range | 5° - 95° | |||||||
|
Min. Channel Cross Section (mm)
|
380 x 300 | 380 x 350 |
||||||
Compressed Air Pressure (bar) | 4 - 8 | |||||||
Power Supply | 230V, 50/60Hz | 230/400V, 3/N/PE, 50/60Hz | ||||||
Rated Power (kW) | 2.2 * 2 | 2.9 * 2 | 4.6 * 2 | 6 * 2 | 6.5 * 2 | 7 * 2 | 7.5 * 2 | |
Machine Dimension (mm) | 2100x2800x1220 | 2600x2800x1220 | 3700x3000x1220 | 4700x3000x1850 | 5700x3000x1850 | 6700x3000x1850 | 7700x3000x1850 | |
Features
Featured by
· Dual-Zone Heating—Independent control for upper and lower elements for uniform heat.
· Material Specific Settings —bending pressure and temperature set according to material properties.
· Wide Thickness Range— Handles sheets from 3–25 mm.
· Adjustable Angles—Bends from 5° to 95°.
· Precise Heating—Temperature variation kept within ±5°C.
· Optional Heating Knives — choose V-shaped or flat to suit different bending requirements.
Application Scenarios
