Fitting Fabrication Machine ATLA400 90MM - 400MM (4" IPS - 16" IPS)
group nameFitting Fabrication Machines
-
Min Order1 set
brand nameRIYANG
modelATLA400
payment methodL/C, Western Union, T/T, Paypal
-
update timeSun, 22 Mar 2026 12:40:39 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1 set
Working Range in mm 90mm - 400mm
Working Range in Inch 4" IPS - 16" IPS
Fabricated Fitting Type Bend, Tee, Cross & Wye
Weldable Materials HDPE, PP, PVDF etc.
Fusion Welding Standard Applied ISO21307, DVS2207, ASTM F2620 etc.
Packging & Delivery
Min Order1 set
Briefing
The ATLA400 is a manual HDPE fitting fabrication machine for producing elbows, tees, crosses (90–400mm) and wyes (up to 315mm). Designed with hydraulic trimmer control and precision clamps, it offers efficient, workshop-grade fabrication of HDPE, PP, and PVDF fittings.
Detailed
Overview
The ATLA400 is a robust and cost-effective manual HDPE fitting fabrication machine designed to produce high-quality plastic fittings, including elbows, tees, crosses, and wyes. Suitable for pipe sizes ranging from 90mm to 400mm (Wye fittings are supported only up to 315mm), this machine is ideal for workshop-based fabrication of fittings made from HDPE, PP, and PVDF.
Specifically engineered to meet the demands of utility contractors and plastic pipeline fabricators, the ATLA400 offers precise manual control, a durable structure, and a user-friendly interface for small to medium-diameter fabrication needs.
Technical Specifications | |
Welding Range in mm | 90mm - 400mm |
Welding Range in inch | 3" IPS - 16" IPS |
Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
Applicable Materials | HDPE, PP, PVDF |
| Control System | Manual |
| Power Supply | 380V, 50Hz |
| Total Power Consumption | 12.3 KW |
Multi-Fitting Capability

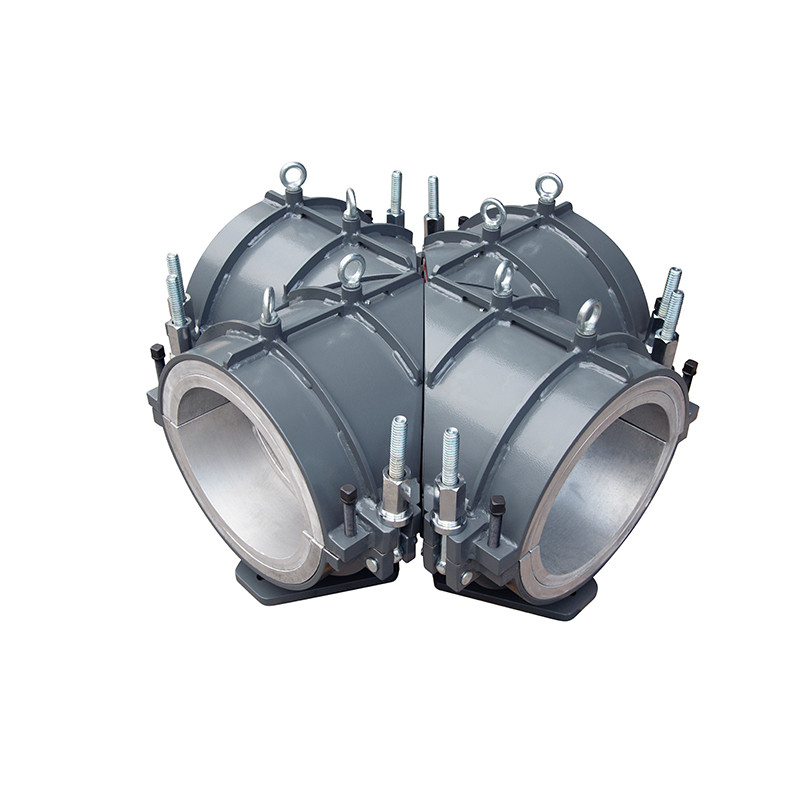

> Fabricates elbows, tees, crosses (90–400mm), and wyes (90–315mm) with precision using adjustable clamp sets.
Manual Control System
> Reliable and intuitive manual operation allows the welder to manage key welding steps and fine-tune pressure and alignment.
Hydraulic Trimmer Drive
> The trimmer's in-and-out motion is powered by a hydraulic system, delivering smooth and stable face-off performance with minimal vibration.
Stable Heating System
> Equipped with a durable, Teflon-coated heating plate offering consistent thermal performance and quick heat-up cycles.
Compact and Portable
> The machine's small workshop footprint and modular design make it easy to position, operate, and maintain.
- Wyes clamps covering ranges φ90 to φ315 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Top fastening cylinder
- Data logger
- CNC system
