Nano Fitting Fabrication Machine FUSENANO110 20MM-110MM (1/2" IPS - 3" DIPS)

  • group nameManual Butt Fusion Machines

  • Min Order1 set

  • brand nameRIYANG

  • modelFUSENANO110

  • payment methodL/C, Western Union, T/T, Paypal

  • update timeFri, 05 Dec 2025 23:57:55 GMT

Paramtents

  • Certificate CE, ISO9001

  • Packing Material Plywood Box

  • MOQ 1set

  • Working Range in mm 20mm - 110mm

  • Working Range in Inch 1/2"IPS - 3" DIPS

  • Fabricated Fitting Type Bend

  • Weldable Materials HDPE, PP, PVDF etc.

Packging & Delivery

  • Min Order1 set

Briefing

FUSENANO110 is a compact and professional butt-welding solution for PE, PP, and PVDF pipes and fittings, covering all pressure classes from O.D. 20 mm to 110 mm.

Detailed

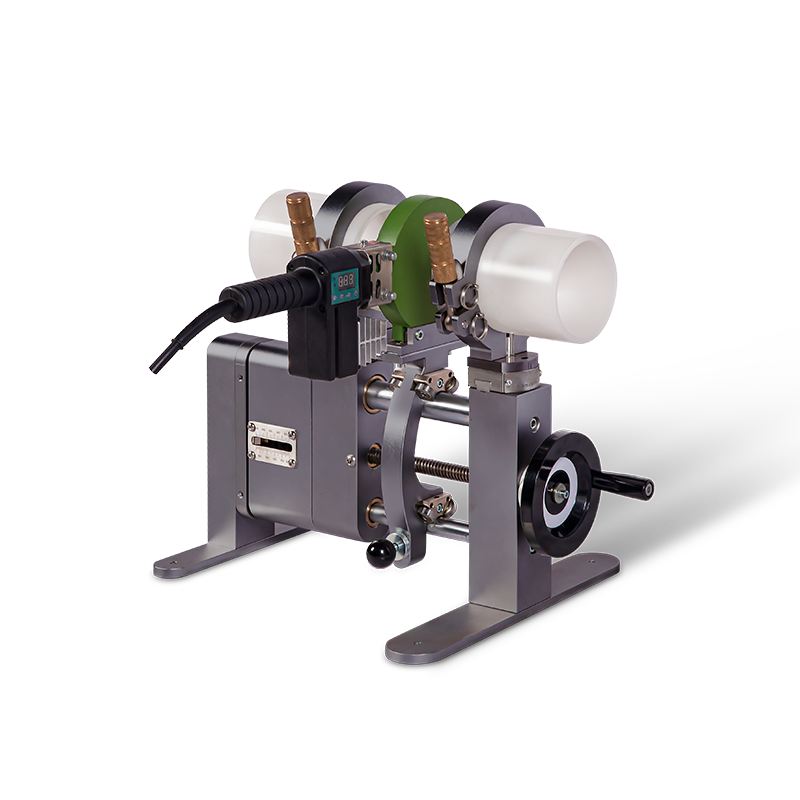

Nano Fitting Fabrication Machine FUSENANO110 20MM-110MM
FUSENANO 110 is a compact and professional butt-welding solution for PE, PP, and PVDF pipes and fittings, covering all pressure classes from O.D. 20 mm to 110 mm. Designed for maximum versatility, it offers a user-friendly, portable system that performs seamlessly both on construction sites and in workshop environments. With its unique handling and smart engineering, FUSENANO 110 delivers the reliability and flexibility that modern pipe welding professionals demand — in a compact footprint that fits wherever you need it.
Product Details
Elbow
OD 20mm - 110mm ( 0º - 30º )
Weldable Materials
HDPE, PP, PVDF, PPR etc
Maximum Force
900 N
Inserts Type
Single Layer
Rated Power
1850 W
Power Supply
220V, 50HZ
Total Packages
1 Box
Net Weight
25 KG, Excluding inserts
hdpe welding machine
Butt Fusion Machine

• The machine's chassis features horizontally adjustable clamps, allowing precise positioning of pipes on both sides before welding—a critical advantage for achieving optimal results in segmented bend welding applications.

• The upper and lower clamps, as well as the installation of the reducing inserts, are secured using locking pins, ensuring a simple and quick setup. This design is especially convenient during overhead welding operations, making clamp assembly and adjustment much easier when the machine is suspended.

• The rotating clamps can be precisely locked at angles ranging from 0°to 15°for both butt and miter welds, enabling the fabrication of bends up to a maximum of 30°.
Butt Fusion Machine
Butt Fusion Machine

• Powered by a Makita drill, the trimmer offers horizontal adjustability and double-sided blades for long-lasting performance and easy upkeep.

• The PTFE-coated heating plate features electronic temperature control and horizontal adjustability for precise, consistent welding.
Butt Fusion Machine
hdpe welding machine

- Imperial Reduction Inserts
- Stub End Device
- Narrow Clamps
