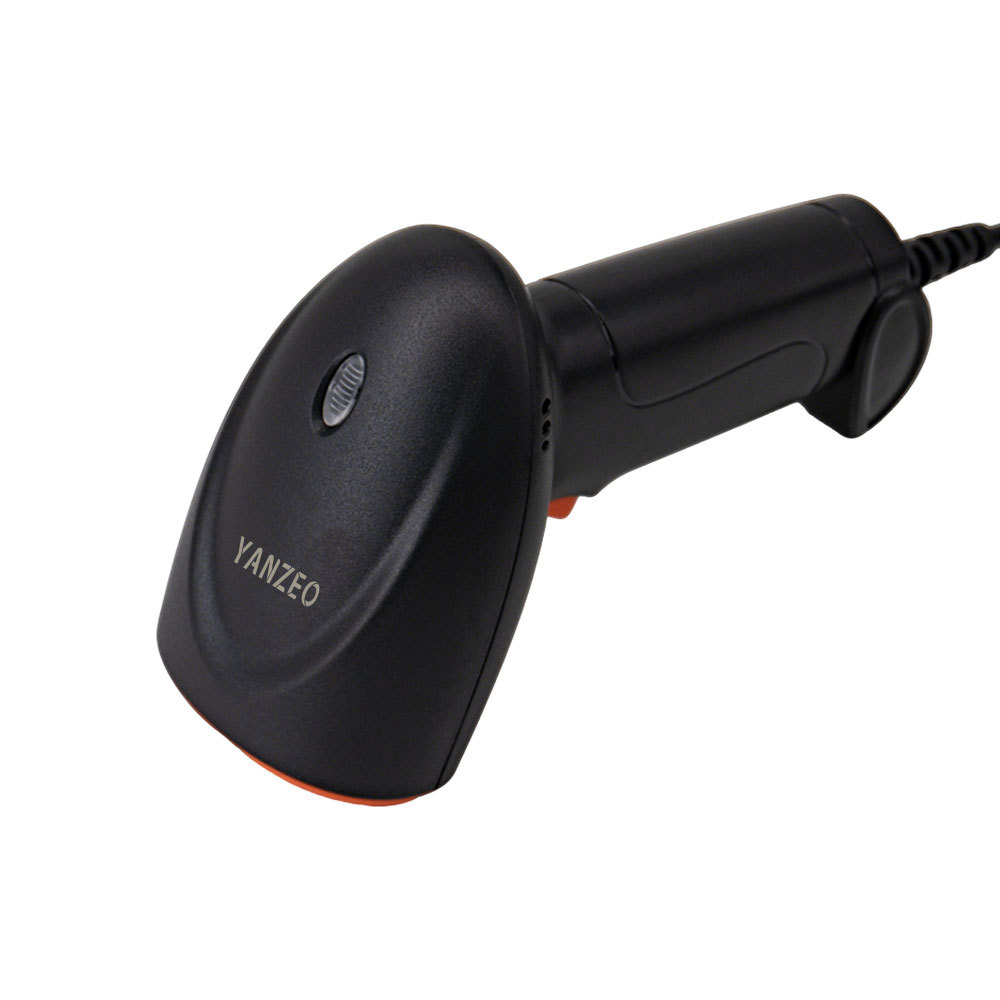

YANZEO YU37 High Speed 2D Wired Barcode Scanner IP54 Shockproof QR Code Reader for POS System
group nameHandheld Barcode Scanners
-
Min Order1 piece
brand nameYanzeo Pro RFID & BarCode Solutions
modelYU37
payment methodT/T, Paypal
-
update timeSat, 26 Sep 2026 01:24:47 GMT
Paramtents
Light Source White LED
Packging & Delivery
Min Order1 piece
Briefing
Featuring a 30fps scanning frame rate, this scanner delivers fast and stable decoding performance. It adopts an ergonomic ABS+PC handheld design with an IP54 rating, surviving 1.5m drops onto concrete.
Multiple communication modes are available: USB-HID, USB-COM and optional RS232. Users can configure settings via programming barcodes and upgrade firmware remotely. It works reliably across a wide temperature range for retail, warehouse and logistics applications.
Detailed
|
Physical parameters |
||
|
Scan mode |
Key trigger/auto-sensing/continuous scanning |
|
|
Communication interface |
USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional). |
|
|
Interface type |
USB TYPE-B |
|
|
Prompt method |
Buzzer, LED light |
|
|
How to set it up |
Scan the setting code manually in turn |
|
|
Housing material |
ABS+PC |
|
|
Cable standard |
Straight line 1.6m |
|
|
Appearance dimensions |
165mm×66mm×95mm (product); 195mm×105mm×80mm (Outer Packaging) |
|
|
weight |
178g (net weight); 297g (including packaging accessories). |
|
|
Performance parameters |
||
|
Sensors |
CMOS |
|
|
Discrimination rate |
800*600 |
|
|
light source |
White LED |
|
|
Scan angle |
± 60°, ± 60°, 360° (elevation, declination, turning angle). |
|
|
Scan rate |
30 frames per second |
|
|
Field of view |
48° (H) x 30° (V) |
|
|
Printing contrast |
Minimum 15% |
|
|
Decoding types |
1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc， Supports scanning codes with the phone screen |
|
|
Minimum resolution |
1D code 3MIL; QR code 5MIL |
|
|
depth of view |
QR (7k) QR payment code (mobile code) Data Matrix （ 10mil ） PDF 417 (6.7k) EAN-13 (13.3k) Code 39 （ 8.3mil ） |
30~110mm 40~500mm 20- 150mm 20- 150mm 30~300mm 40~235mm |
|
Electrical parameters |
||
|
Input voltage |
DC 5V±10% |
|
|
current |
Working: 350 mAh; Standby: 130 mAh |
|
|
Environmental parameters |
||
|
Temperature |
-10°C~50°C (operating); -40°C~+60°C (storage). |
|
|
Humidity |
5%-95% non-condensation |
|
|
Ambient brightness |
Max.5,000 Lux (fluorescent) |
|
|
Seismic resistance |
It can withstand a drop from the air up to 1.5m |
|
