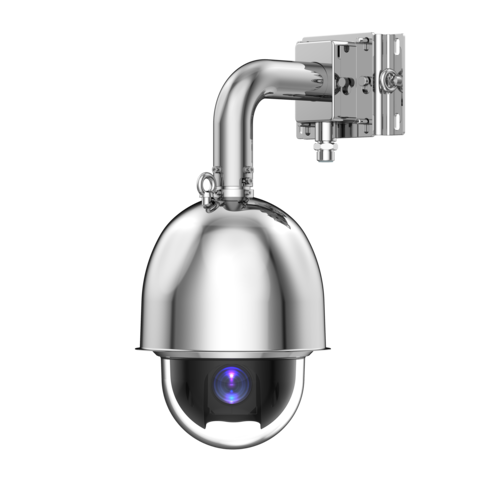

Stainless Steel Explosion Proof Dome Camera(ATEX)
group nameExplosion Proof Dome Cameras(ATEX&IECEx)
-
Min Order1 piece
brand nameStan Explosion Proof Cameras Manufacturer
modelCZ637
payment methodT/T, Cash
-
update timeSat, 19 Feb 2022 08:19:23 GMT
Paramtents
Material Stainless steel 304 or 316L
Certified ATEX, IECEx
apply Gas Zone 1, Zone 2, Dust Zone 21, 22.
Power Supply AC100-240V or AC24V or POE(IEEE802.3at)
Water Resistant Grade IP68(1.2m/45min)
Packging & Delivery
Min Order1 piece
Briefing
A Classic Explosion-proof Dome Camera，applicable to hazardous areas, such as combustible gases and dust mixture places.
Detailed
Features
·Stainless Steel Explosion Proof Dome Camera(ATEX) for hazardous area
·Certified standards IEC/EN60079 (2014)·Strong tempered glass, fit for hydrofluoric acid area
·Auto temperature adjust kit for aggressive area
·Intelligent long focal speed limit, fit for long distance monitoring
·H.265+/H.265/H.264+/H.264 Video Compression
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
ATEX Certificate Mark
|
CE2460EX Ⅱ2G Ex db op is IIC T6 Gb,
Ⅱ2D Ex tb op is IIIC T80 ℃ Db |
||
|
Certificate
|
Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
|
||
Standards | IEC/EN60079 | ||
Image | |||
Effective Pixels | 2M(1920x1080) | ||
|
Image Device
|
1/1.8" Progressive Scan CMOS
|
||
Optical zoom | 33X ,5.8-191.4mm | ||
Day&Night | IR cut filter | ||
Standard | ONVIF, PSIA, CGI, ISAPI | ||
Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485. | ||
Minimum illumination | Color: 0.001Lux..........5 B/W: 0.0001Lux..........5 | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | AC100V～AC240V or AC24V or POE(IEEE802.3at) | ||
Optional network signal | RJ45 | ||
Optical Video signal | 1-way analog video output | ||
Optical Audio | 1-way input, 1-way output | ||
Optical Alarm | 2-way alarm input, 1-way alarm output | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -40℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Communication | |||
Communication type | RS485 | ||
Protocol | Pelco-D, Pelco-P | ||
Pan & Tilt | |||
Horizontal | 360° | ||
Vertical | 0 to +90° | ||
Network | |||
Network Interface | 1pcs of RJ45, support 10M/100M/1000M | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: M25x1.5, or M27×1.25
Dimension: 282.5*282.5*408.1mm
Net Weight: 18kg
Mount: wall, pole
Wall bracket: CZ630B
Ceiling mounted bracket：ZAZ630BC
