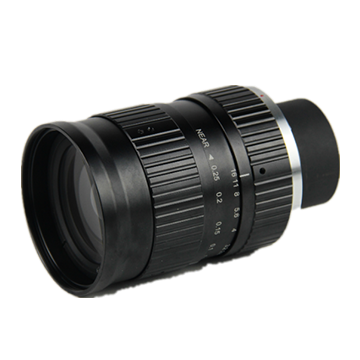

F-Mount lens | LF2528M-F Large Format Φ43.2mm 25mm Focal Length FA LENS

Resolution is a measured by how closely 2 points can be before they cannot be distinguished. For example, 1μm resolution means that 2 points that are 1μm away from each other can be distinguished. Resolution values in this catalog are theoretical resolutions for the lenses. The following is a formula to calculate theoretical resolution based on a lens's ray diffraction with no aberration.

Resolution=0.61×λ/NA          λ : Wavelength       0.61: Fixed Number

Distortion is the aberration of a lens where a straight object outside of the optical axis appears curved. Distortion of a straight line towards the center is called pincushion distortion, while distortion expanding outwards is called barrel distortion

The value indicates lens brightness. It is calculated by dividing the focal distance of the lens by its effective diameter (entrance pupil diameter D mm) looking from its object side. It can also be calculated by NA and the lens' optical magnifi cation ( ). The smaller the number the brighter the lens is.

Field of view is the size of an object that can be shot when the lens is attached to a camera.

The size of fi eld of view is (sensor size) ÷ (optical magnification ).

(Calculation Example) Optical Magnification =0.2x, camera Size 1/2" (4.8mm Long, 6.4mm Wide) :

                Size of Field of View   Length =4.8/0.2=24 (mm)

                                                    Width =6.4/0.2=32 (mm)
