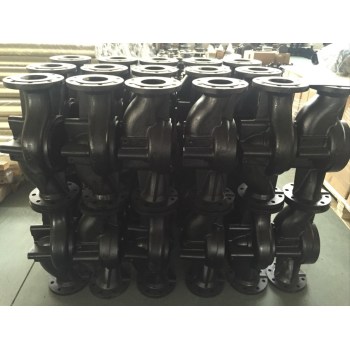

Vertical Inline Centrifugal Pump

  • group nameInline Pumps

  • Min Order1 piece

  • brand nameRondos Water Pump Manufacturer

  • modelTD

  • payment methodPayPal, Westem Union, Cash, Escrow

  • update timeFri, 05 Dec 2025 21:25:50 GMT

Paramtents

  • The liquid temperature -15ºC to +70ºC

  • hot water type +70ºC to +115ºC

  • Flow range 2m³/h~1200m³/h

  • Head range 4.40m~85.50m

  • The environment temperature +40ºC

Packging & Delivery

  • Min Order1 piece

Briefing

vertical inline pump, with compact structure, axial inlet and radial outlet

Detailed

Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC, hot water type +70ºC to +115ºC.
3. Flow range 0.4m³/h~28m³/h, head range 6m~234m.
4. Model range TD32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
5. Material CI, SS304  available.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet: 50Hz
vertical inline centrifugal pump performance data
Model
TD32
TD40
TD50
TD65
TD80
TD100
flow range. m³/h
2~16
4~32
2.5~60
5~90
10~100
10~160
Max.head. m
51.7
49.8
85.5
85.4
69.2
55.3
Model
TD125
TD150
TD200
TD250
TD300
flow range. m³/h
40~200
50~240
90~480
150~750
270~1200
Max.head. m
51.5
52.4
55.7
56.2
58.2
Applications:
Vertical Inline Centrifugal Pump
Vertical Inline Centrifugal Pump
Vertical Inline Centrifugal Pump
