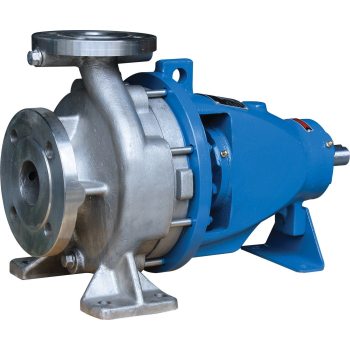

End Suction Pump
group nameFar Coupled Pumps
-
Min Order1 piece
brand nameRondos Water Pump Manufacturer
modelPA
payment methodPayPal, Westem Union, Cash, Escrow
-
update timeSat, 06 Dec 2025 08:32:38 GMT
Paramtents
The liquid temperature -15ºC to +70ºC
hot water type +70ºC to +115ºC
Flow range 4m³/h~1500m³/h
Head range 2.30m~146m
The environment temperature +40ºC
Packging & Delivery
Min Order1 piece
Briefing
End Suction Pump vertical inline pump, with compact structure, axial inlet and radial outlet
Detailed
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC, hot water type +70ºC to +115ºC.
3. Flow range 0.4m³/h~28m³/h, head range 6m~234m.
4. Model range PA32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
5. Material CI, SS304 available.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet: 50Hz
Model |
PA32 |
PA40 |
PA50 |
PA65 |
PA80 |
PA100 |
flow range. m³/h |
3.1~32.4 |
6.3~43.2 |
13.3~108 |
21.6~156 |
37.2~251.9 |
62.3~354 |
Max.head. m |
89.3 |
155 |
151.5 |
143.5 |
146 |
95 |
Model |
PA125 |
PA150 |
PA200 |
PA250 |
PA300 |
|
flow range. m³/h |
93.1~432 |
158.3~578.9 |
229.5~829.4 |
382.2~1175 |
549.2~1404 |
|
Max.head. m |
51.7 |
98 |
88.5 |
87.5 |
49.5 |
Applications:
