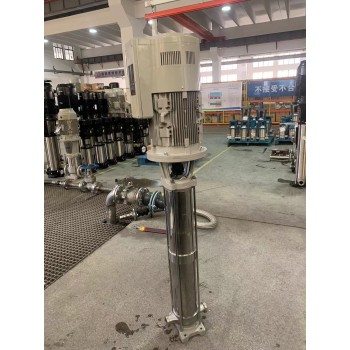

HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
group nameStainless Steel High Pressure Vertical/Horizontal Multistage pump
-
Min Order1 piece
brand nameRondos Water Pump Manufacturer
modelHSP/MHP
payment methodPayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 23:26:41 GMT
Paramtents
Material SS304, SS316L.
The environment temperature +40ºC
The minimum entrance pressure curve NPSH +0.5m
Motor Permanent magnet variable frequency, speed 5200rpm
Flow 0.5~90m3/h
Head 50~1180m
Packging & Delivery
Min Order1 piece
Briefing
HSP/MHP multistage high pressure centrifugal pump is equiped with custom-designed mechanical seal and wet parts,can be for some certain high pressure application, such as carpet cleaning, bolier water feed,hot water pressure wash
machine and other industries.We develop HSP/MHP series pump with ultra-advanced technology, which is matched with 5200rpm long-time running permanent magnet motor, to realize a technical breakthrough of pressure up to 1000
meters of single pump
machine and other industries.We develop HSP/MHP series pump with ultra-advanced technology, which is matched with 5200rpm long-time running permanent magnet motor, to realize a technical breakthrough of pressure up to 1000
meters of single pump
Detailed
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC
3. Flow range 0.5m³/h~90m³/h, head range 50m~1180m.
4. Model range HSP2,3,4,5,8,10,12,15,16,20,25,30, MHP2,3,4,5,8,10,12,15,16,20,25,30,50,60
5. Material SS304, SS316L. Duplex 2205
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:
Model |
HSP2 |
HSP3 |
HSP4 |
HSP5 |
HSP8 |
HSP10 |
rated flow. m³/h |
2 |
3 |
4 |
5 |
8 |
10 |
Max.head. m |
790 |
705 |
700 |
645 |
705 |
630 |
Model |
HSP12 |
HSP15 |
HSP16 |
HSP20 |
HSP25 |
HSP30 |
rated flow. m³/h |
12 |
15 |
16 |
20 |
25 |
30 |
Max.head. m |
700 |
700 |
700 |
680 |
690 |
640 |
Model |
MHP2 |
MHP3 |
MHP4 |
MHP5 |
MHP8 |
MHP10 |
MHP12 |
rated flow. m³/h |
2 |
3 |
4 |
5 |
8 |
10 |
12 |
Max.head. m |
1000 |
1005 |
990 |
1020 |
880 |
800 |
1030 |
Model |
MHP15 |
MHP16 |
MHP20 |
MHP25 |
MHP30 |
MHP50 |
MHP60 |
rated flow. m³/h |
15 |
16 |
20 |
25 |
30 |
50 |
60 |
Max.head. m |
1000 |
980 |
990 |
690 |
640 |
950 |
700 |
