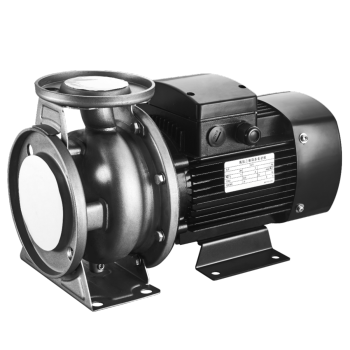

HS/HM Single Stage Stainless Steel Horizontal Pump
group nameHS/HM Single Stage Stainless Steel Horizontal Pump
-
Min Order1 piece
brand nameRondos Water Pump Manufacturer
modelHS,HM
payment methodL/C, T/T
-
update timeSat, 06 Dec 2025 01:25:11 GMT
Paramtents
The liquid temperature -15ºC to +70ºC
hot water type +70ºC to +115ºC
Flow range 3m³/h~240m³/h
Head range Max.67.8m
The environment temperature +40ºC
Packging & Delivery
Min Order1 piece
Briefing
Stainless Steel horizontal single stage non-self priming centrifugal pump, with compact structure, axial inlet and radial outlet
Detailed
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC, hot water type +70ºC to +115ºC.
3. Flow range 3m³/h~240m³/h, head range 8m~67.8m.
4. Model range HS/HM50-32, HS/HM65-40, HS/HM65-50, HS/HM80-65, HS/HM100-80
5. Material SS304, SS316L available.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:
| Model | Flow [m³/h] |
Head [m] |
Speed [r/min] |
Motor Power | ||
| 1×220V | 3×380V | |||||
| P[kW] | P[kW] | |||||
| 1 | HS/HM50-32-125/1.1 | 12.5 | 18.5 | 2900 | 1.1 | |
| 2 | HS/HM50-32-160/1.5 | 12.5 | 24.5 | 2900 | 1.5 | |
| 3 | HS/HM50-32-160/2.2 | 12.5 | 32 | 2900 | 2.2 | |
| 4 | HS/HM50-32-200/3 | 12.5 | 37.5 | 2900 | 3 | |
| 5 | HS/HM50-32-200/4 | 12.5 | 45 | 2900 | 4 | |
| 6 | HS/HM50-32-200/5.5 | 12.5 | 55 | 2900 | 5.5 | |
| 7 | HS/HM50-32-200/7.5 | 12.5 | 62 | 2900 | 7.5 | |
| 8 | HS/HM65-40-125/1.5 | 25 | 15 | 2900 | 1.5 | |
| 9 | HS/HM65-40-125/2.2 | 25 | 20 | 2900 | 2.2 | |
| 10 | HS/HM65-40-125/3 | 25 | 24 | 2900 | 3 | |
| 11 | HS/HM65-40-160/3 | 25 | 25 | 2900 | 3 | |
| 12 | HS/HM65-40-160/4 | 25 | 33 | 2900 | 4 | |
| 13 | HS/HM65-40-200/5.5 | 25 | 40 | 2900 | 5.5 | |
| 14 | HS/HM65-40-200/7.5 | 25 | 50 | 2900 | 7.5 | |
| 15 | HS/HM65-40-200/9.2 | 25 | 56 | 2900 | 9.2 | |
| 16 | HS/HM65-40-200/11 | 25 | 64 | 2950 | 11 | |
| 17 | HS/HM65-50-125/2.2 | 42 | 13.5 | 2900 | 2.2 | |
| 18 | HS/HM65-50-125/3 | 42 | 17.5 | 2900 | 3 | |
| 19 | HS/HM65-50-125/4 | 42 | 23 | 2900 | 4 | |
| 20 | HS/HM65-50-160/5.5 | 50 | 25.5 | 2900 | 5.5 | |
| 21 | HS/HM65-50-160/7.5 | 50 | 33 | 2900 | 7.5 | |
| 22 | HS/HM65-50-200/9.2 | 50 | 40 | 2900 | 9.2 | |
| 23 | HS/HM65-50-200/11 | 50 | 48 | 2950 | 11 | |
| 24 | HS/HM65-50-200/15 | 50 | 58 | 2950 | 15 | |
| 25 | HS/HM65-50-200/18.5 | 50 | 66 | 2950 | 18.5 | |
| 26 | HS/HM80-65-125/4 | 72 | 14 | 2900 | 4 | |
| 27 | HS/HM80-65-125/5.5 | 72 | 18 | 2900 | 5.5 | |
| 28 | HS/HM80-65-125/7.5 | 72 | 24.5 | 2900 | 7.5 | |
| 29 | HS/HM80-65-125/9.2 | 72 | 27 | 2900 | 9.2 | |
| 30 | HS/HM80-65-160/11 | 100 | 28 | 2950 | 11 | |
| 31 | HS/HM80-65-160/15 | 100 | 36.5 | 2950 | 15 | |
| 32 | HS/HM80-65-200/18.5 | 100 | 45 | 2950 | 18.5 | |
| 33 | HS/HM80-65-200/22 | 100 | 53 | 2950 | 22 | |
| 34 | HS/HM80-65-200/30 | 100 | 62 | 2950 | 30 | |
| 35 | HS/HM100-80-160/11 | 160 | 17.5 | 2950 | 11 | |
| 36 | HS/HM100-80-160/15 | 160 | 26 | 2950 | 15 | |
| 37 | HS/HM100-80-160/18.5 | 160 | 30.5 | 2950 | 18.5 | |
| 38 | HS/HM100-80-200/22 | 160 | 38 | 2950 | 22 | |
| 39 | HS/HM100-80-200/30 | 160 | 49 | 2950 | 30 | |
| 40 | HS/HM100-80-200/37 | 160 | 56.5 | 2950 | 37 | |
Applications:
