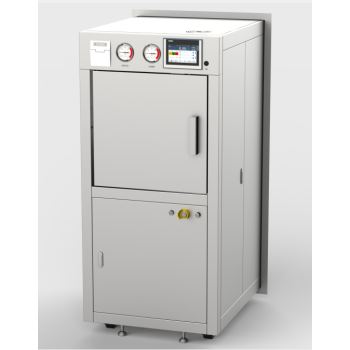

Laboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200L
Laboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200LLaboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200LLaboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200LLaboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200LLaboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200L

Laboratory Horizontal Steam Autoclave Sterilizers Culture Medium | LABH-100/160/200L

  • group nameHorizontal Steam Sterilizer LABH Series

  • Min Order1 set

  • brand nameAIKSMED Steam Autoclave Sterilizer Manufacturer

  • modelLABH-100S

  • payment methodT/T

  • update timeTue, 07 Apr 2026 12:36:33 GMT

contact supplier

Paramtents

  • Loading Capacity 100L,160L,200L

  • Customized Available

  • Application Fabrics, Liquids, Utensils, Instruments, etc.

  • Door Single, Pass-through/Double Doors(Optional)

  • Lead Time 60~90 working days

Packging & Delivery

  • Min Order1 set

Briefing

Laboratory Horinzontal Steam Autoclave Sterilizers is used for sterilization of Culture Medium, Instruments in laboratory.

Detailed

Application
Features
Technology
Customer Options
Video

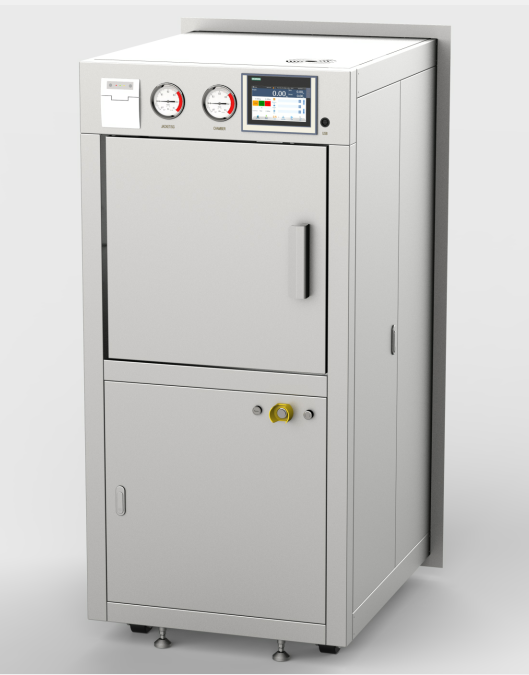

                                                           LABORATORY STEAM AUTOCLAVE STERILIZER

            LABH Model Laboratory Steam Autoclaves are used for Culture Medium, Textile, and solutions sterilization in Laboratory.

                                             AIKSMED provides wide range of volumes for options, including 100L, 160L, 200L.

                                                   To adapt for space requirement, LABH Series have very compact structure,

                                                            meanwhile combined with various features for strict requirements,

                         such as multiple sterilization process, easy maintenance, stable performance, and highly efficient process time

                                                           Additional accessories can be fitted to achieve higher level requests.

                      eg. for biological safety laboratories, to separate sterile and non-sterile areas, and protect external environment,

                                                  pass-through safety interlock, air extract filtration and sterization in place(SIP) ,

                               condensate re-sterilization/re-inactivation and cooling discharge can be realized via LABH Series.

                                                                      AIKSMED GUARDS LABORATORY SAFETY!
Application
Custom Laboratory Steam Sterilizer Autoclave for Laboratory sterilization of liquids, solids, utensils, wrapped waste, hazardous biological substances, etc.
AIKSMED sterilizer autoclave machine CSSD

AIKSMED sterilization autoclave machine BSL laboratory

AIKSMED sterilization autoclave machine surgical instruments

AIKSMED sterilizer autoclave machine laboratory culture medium

LABH Model

Model
Vol(L)
Chamber Size(mm)
Dimension(mm)
N/W
LABH-100
100
Φ500x500
750x780x1710
450
LABH-160
160
Φ500x820
990x780x1710
500
LABH-200
200
Φ500x1020
1200x780x1710
550
★★★Features:
Laboratory Steam Sterilizer
✔ Built-in steam generator;

✔ Low water cut-off function;

✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material;

✔ Autoclave vessel is made of AISI316L, jacket made of AISI304;

✔ Design pressure up to 0.3MPa/3bar;

✔ Safety valves for chamber and steam generator, with over-pressure protection;

✔ Condensate can be re-inactivated;

✔ Quick security door lock;

✔ Door lock with durable, heat and pressure-resistant seal/gasket;

✔ Touch screen(HMI) control;

✔ Access code to prevent uncontrolled software changes;

✔ Three-level authority management;

✔ Over 20 sterilization cycles;

✔ Portable PT-100 temperature sensor (Class A);

✔ Display of sterilization temperature, time, F0 value in real time;

✔ Validation port to test thermal distribution;

✔ Network and USB ports for data transfer;

✔ Equipped with pre-vacuum, gravity and pulse cycles;

✔ Emergency stop button to stop autoclave cycles;

✔ Alarm information in form of code and full message;

✔ Filter cartridge pore size 0.22µm, with sterilization in place function, easy access for replacement;

✔ Integrated drainage cooling system before discharge into sewer.



Laboratory Steam Sterilizer Jacket
Design
■ Advanced structure of chamber combined with jacket for faster heating-up and cooling, due to more contact areas.
■ Totally 4 chamber diameter are available
laboratory steam sterilizer steam generator
Steam Generation
■ Built-in steam generator with sectional heating-up control mode, saving water consumption.
AIKSMED sterilizer autoclave machine laboratory control cycle
Cycles:
■ Over 20 cycles for regular use, including 134℃ and 121℃ for fabric, apparatus, liquid, Class B biological, Class N, and Class S for liquid fast cooling, and etc.
autoclave sterilization equipment door
Door
■ Driven by door motor, with electric safety interlock, and pressure safety device.
Laboratory Steam Sterilizer Air Filter
Air inlet & Extract Filtration
■ Air exhaust can be sterilized in Place(SIP), PTFE element.
autoclave sterilization machine drainage
Drainage Cooling & Security System
■Discharing temperature settable, it can reach 60℃.
Options:
Additional options on Hardware
■ Bio-safety Partition to separate sterile and non-sterile areas.
■ Air exhaust filtration safety system without release of infection pathogens.


Options on Cycles

■ Additional Cycles.
■ Three-level cooling function for liquid cycle.
■ Up to 5*PT100 Sensors.
■ Condensate re-sterilized inside chamber.
■ Condensate re-sterilized outside chamber.
Laboratory Steam Sterilizer Bioseal
