High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp160A PRO
group nameA Pro Series Butt Fusion Machines
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelWP160A Pro
payment methodL/C, Western Union, T/T, Paypal
-
update timeTue, 08 Sep 2026 23:29:06 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 40mm to 160mm pipe and fittings, with durability and reliability.
Detailed

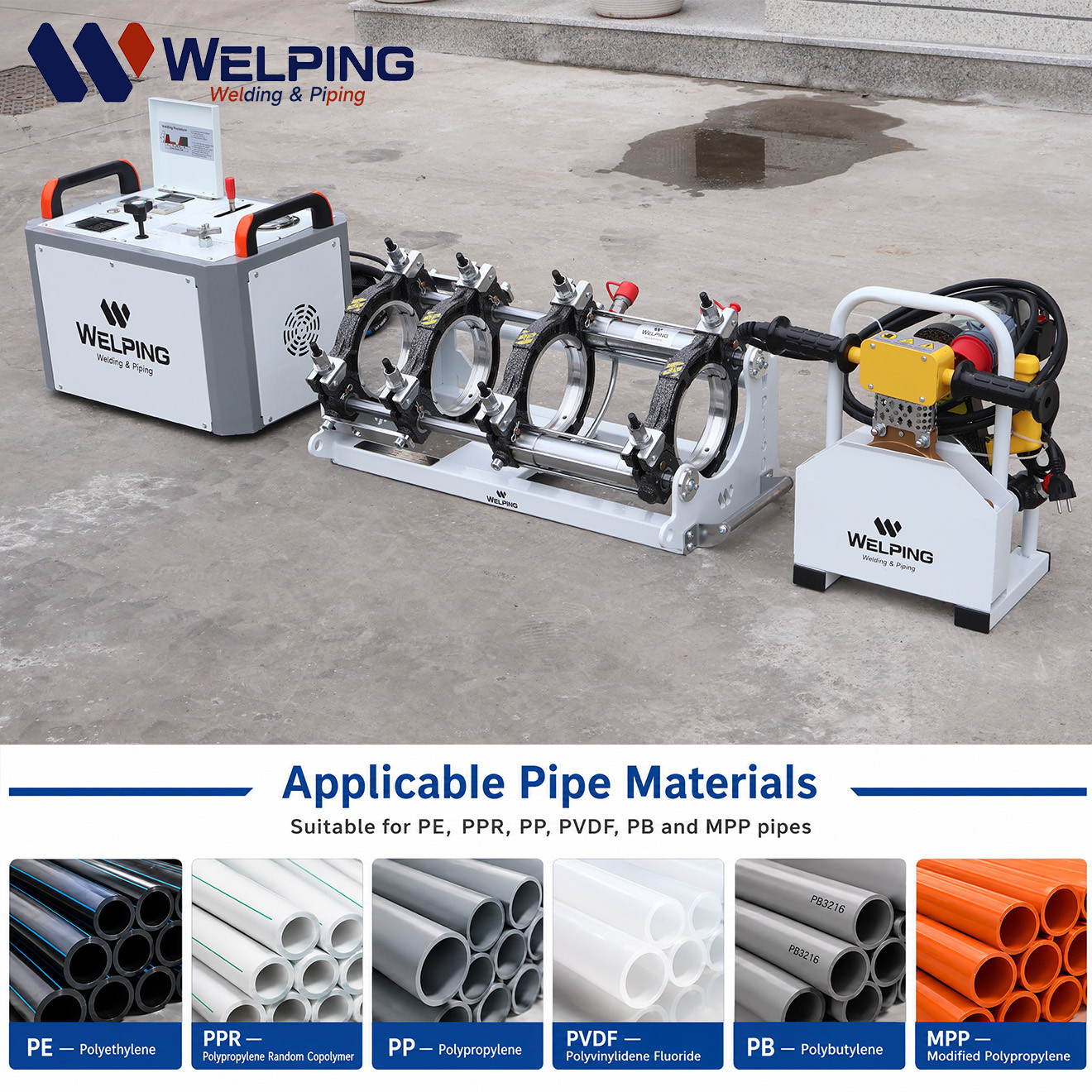

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp160A PRO
Product Overview
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The High-End Series WP160A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
Basic Info
The Butt Fusion Machine is designed to butt fuse pipe sizes 40mm to 160mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
Technical Specifications
| Model NO. | WP160A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | ODM/OEM | Alternative |
| Package | 3 PCS | Hydraulic | Enclosure Housing |
Certificate | CE, SGS | Warranty | 1 Year |
Heating Plate | 1.5KW | Planing Tool | 1.4KW |
Hydraulic Unit | 0.75KW | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
PARAMETER
| Model | WP160A Pro |
| Welding range | 40-50-63-75-90-110-125-140-160 mm |
| Weldable Material | PE(HDPE, MDPE, LDPE), PP, PVDF, MPP |
| Power supply | 220V, 50/60Hz, 1PH |
| Overall Power | 3.65 KW |
Heater | 1.5 KW |
Trimmer | 1.4 KW |
Hydraulic station | 0.75 KW |
Pressure range | 0-8Mpa |
Max. temperature | 270ºC |
Heating plate surface temp | 170-250ºC |
Temperature deviation | ±7ºC |
Gross Weight | 112kg |
Total Volume | 0.3cbm |
Operation Video
PRODUCT DETAILS MAP
Frame(Carriage)
· Complete steel welded design, with complex reinforced structure, heavy-duty
· Clamping part, inner fine-machined
· Standard equipped with carrying handles and wheels,for easy transportation
· Qualified hydraulic cylinder with quick couplings, for easy installation

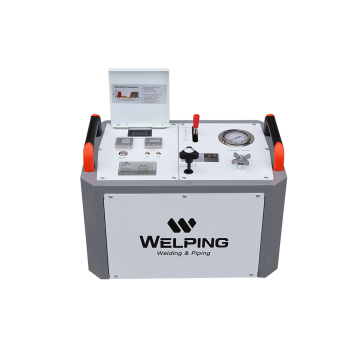

Hydraulic station
· Integrated hydraulic and electrical control, for easy operation access
· All-in-one control panel:
hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt
· Qualified Siemens electrical parts
Heating plate
· Cast aluminum body with built-in heating elements
· Anti-stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety
Planing tool (trimmer)
· Full gear transmission structure,for steady and long-life performance
· Powerful copper-wiring motor
· Durable, double edges HSS blades
Tool holder
· Complete heating plate covers for better protection and heating conservation
· Wider and longer handles for better mobility
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
