GPC Series HDPE Guillotine Pipe Cutter for PE Pipe in Trench or on Open Ground 50mm-355mm
group nameHDPE Guillotine Pipe Cutter
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelGPC4 / GPC10 / GPC12
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 19:58:42 GMT
Paramtents
Cutting Range 50mm-355mm (3 models)
Color Red (accept customization)
Pacakge 1 set/CTN
Weight 8.5kg/25kg/48kg (3 models)
Lead Time 7-15 days
Packging & Delivery
Min Order1 piece
Briefing
For cutting PE pipe from 50mm to 355mm in trench or on open ground. Only needs dozen munites to complete a square cutting on 355mm PE pipe.
Detailed

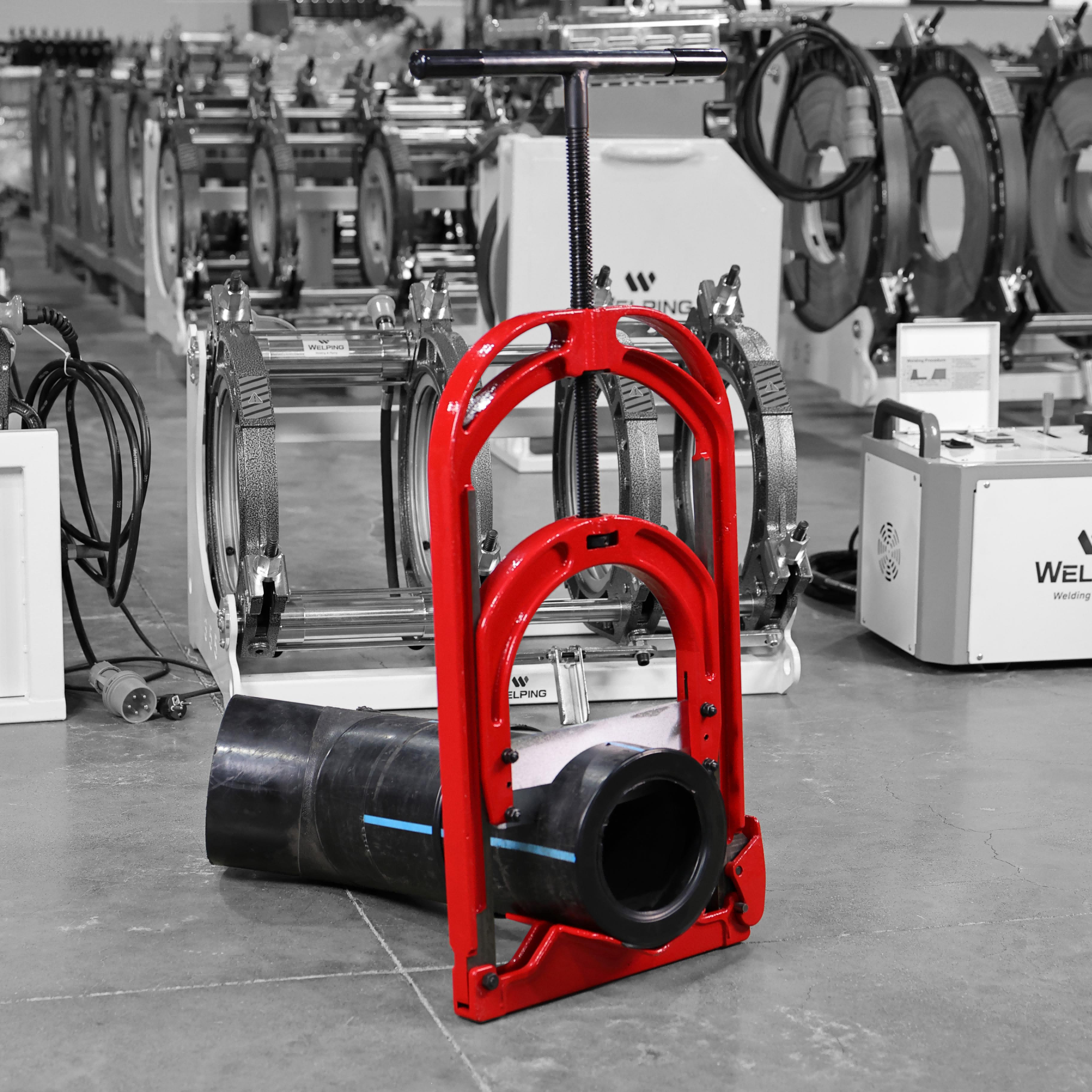

GPC4/10/12 HDPE GUILLOTINE PIPE CUTTER
DESIGN FEATURES
Feature 1
Suitable for cutting PE pipes both in trenches and on open ground (PVC and PP are not available).
Feature 2
Squarest cut available, within 1/8" (3 mm) on medium and high density pipe, due to strong frames and unique blade design.
Feature 3
Saves facing cost: no facing needed for electrofusion, less needed for butt fusion.
Feature 4
The blade is made of reinforced mold steel, coated with hard chrome, making it super easy to cut without sticking.
Feature 5
GPC10 cuts up to 10" (250mm) instead of traditional 8"(225mm).
Feature 6
GPC12 cuts up to 12" (355 mm).
Feature 7
Requires minimal clearance, only 4"-6" (102-152 mm) around pipe.
Feature 8
Clean and safe! No chips to clog valves and apertures.
SPECIFICATION
Item No. | Model No. | Cutting Range | SDR |
740010 | GPC4 | 50 - 125mm (1½" - 4") | SDR15.5 - SDR9 |
740020 | GPC10 | 90 - 250mm (3" - 10") | SDR15.5 - SDR9 |
740030 | GPC12 | 110 - 355mm (4" - 12") | SDR17 - SDR9.3 |
PRODUCT DETAILS
I
Friendly used for reparing GAS and WATER pipe in the trench, together with Butt Fusion Machine.
II
Easy to install on the pipe, and requires minimal clearance 4"-6" (102-152 mm) around pipe.
III
Cutting blade is made of reinforced mold steel, coated with hard chrome. Smooth cutting without sticking.
IV
Squarest cut available on medium and high density pipe, due to strong frames and unique blade design.
WELCOME TO DOWNLOAD
WHY CHOOSE WELPING
Due to its crosshead and blade design, GPC Guillotine Cutter can provide a straight cut with minimal blade wear. And its cutting efficiency is very high. Safe to use than saws because no PE chip residue remains in the pipe that may later clog valves. Especially in special environments, cutting gas pipes can effectively reduce the possibility of combustion and explosion.
