HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10
group nameFusion Data Loggers
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelTracker 7 / Tracker 10
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
-
update timeWed, 23 Sep 2026 02:53:21 GMT
Paramtents
Application HDPE Pipe Butt Fusion Welding
Welding Standards ISO 21307 / DVS 2207 / GOST R 55276 / Custom
Data Monitoring Pressure / Heating Plate Temperature / Ambient Temperature
Data Storage More than 10,000 Welding Records
Printing USB / CSV / Local Storage / TF Card
Language Support 9 Languages
Printing Serial / Bluetooth Printer
Communication RS485 / TCP / BLE Bluetooth
Packging & Delivery
Min Order1 piece
Briefing
Professional data logger for HDPE butt fusion welding, featuring real-time pressure and temperature monitoring, welding guidance, data recording, export, printing and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276 and custom welding parameters.
Detailed

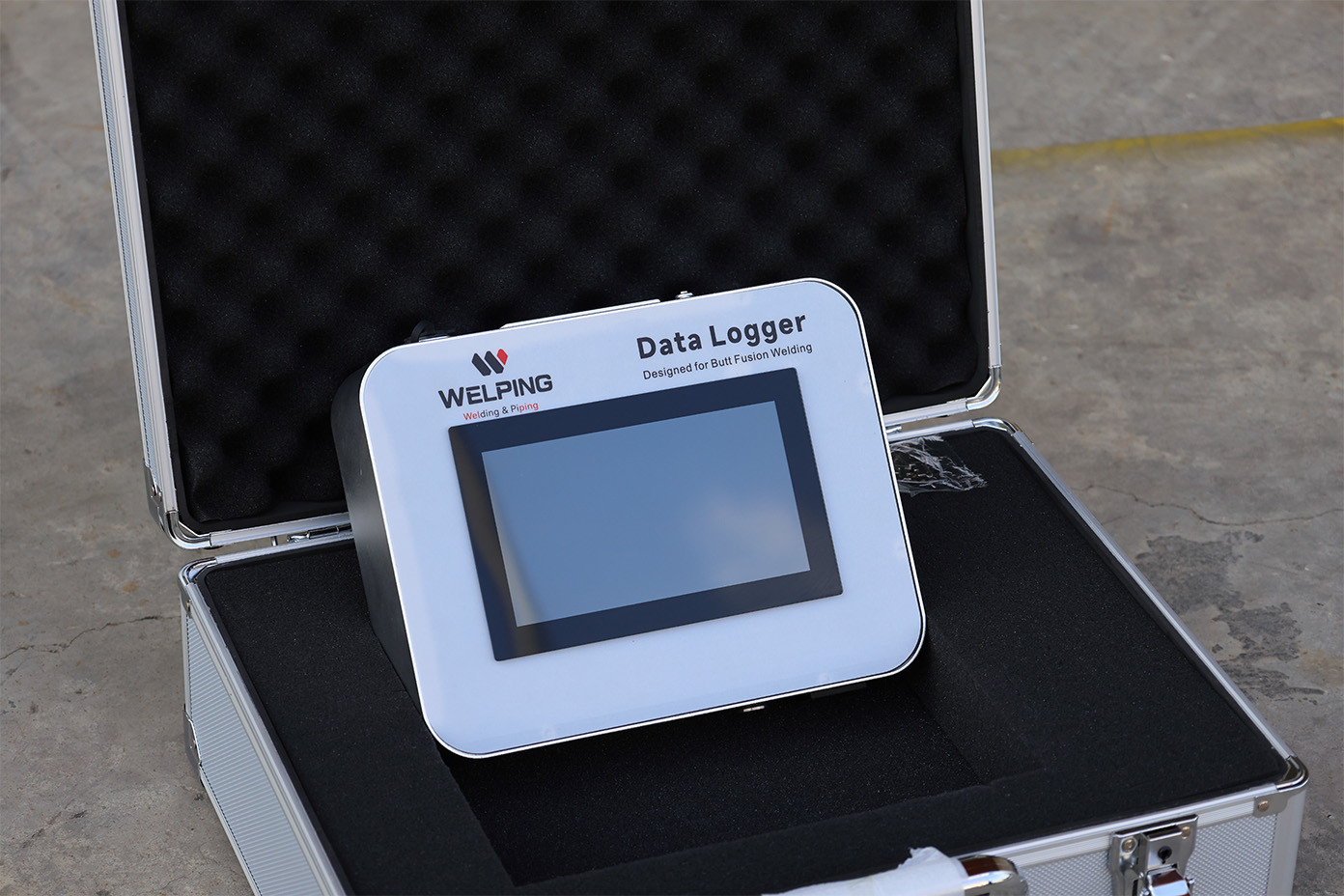

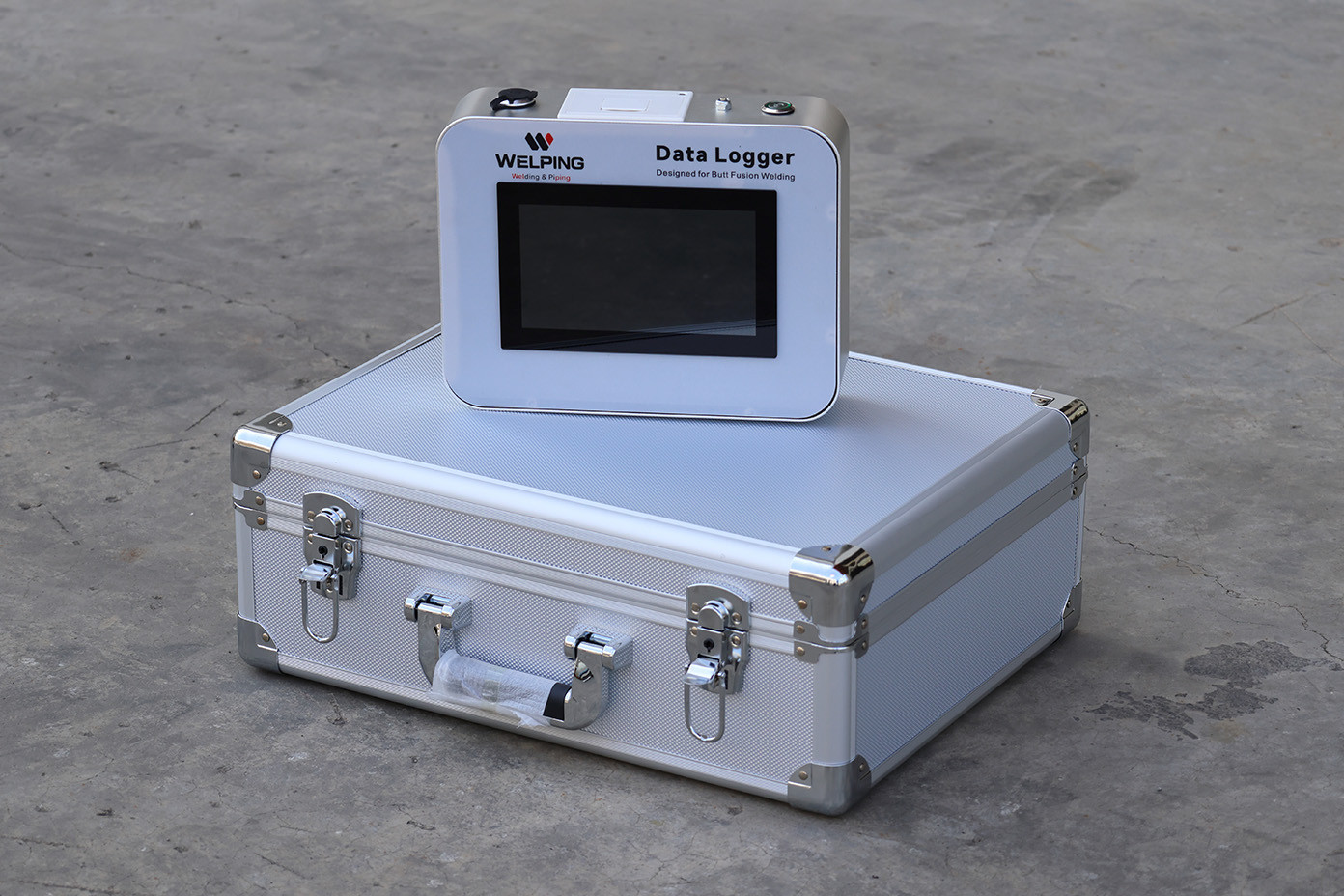

Tracker 7 / Tracker 10 HDPE Butt Fusion Data Logger
For Welding Data Recording, Process Guidance and Quality Traceability

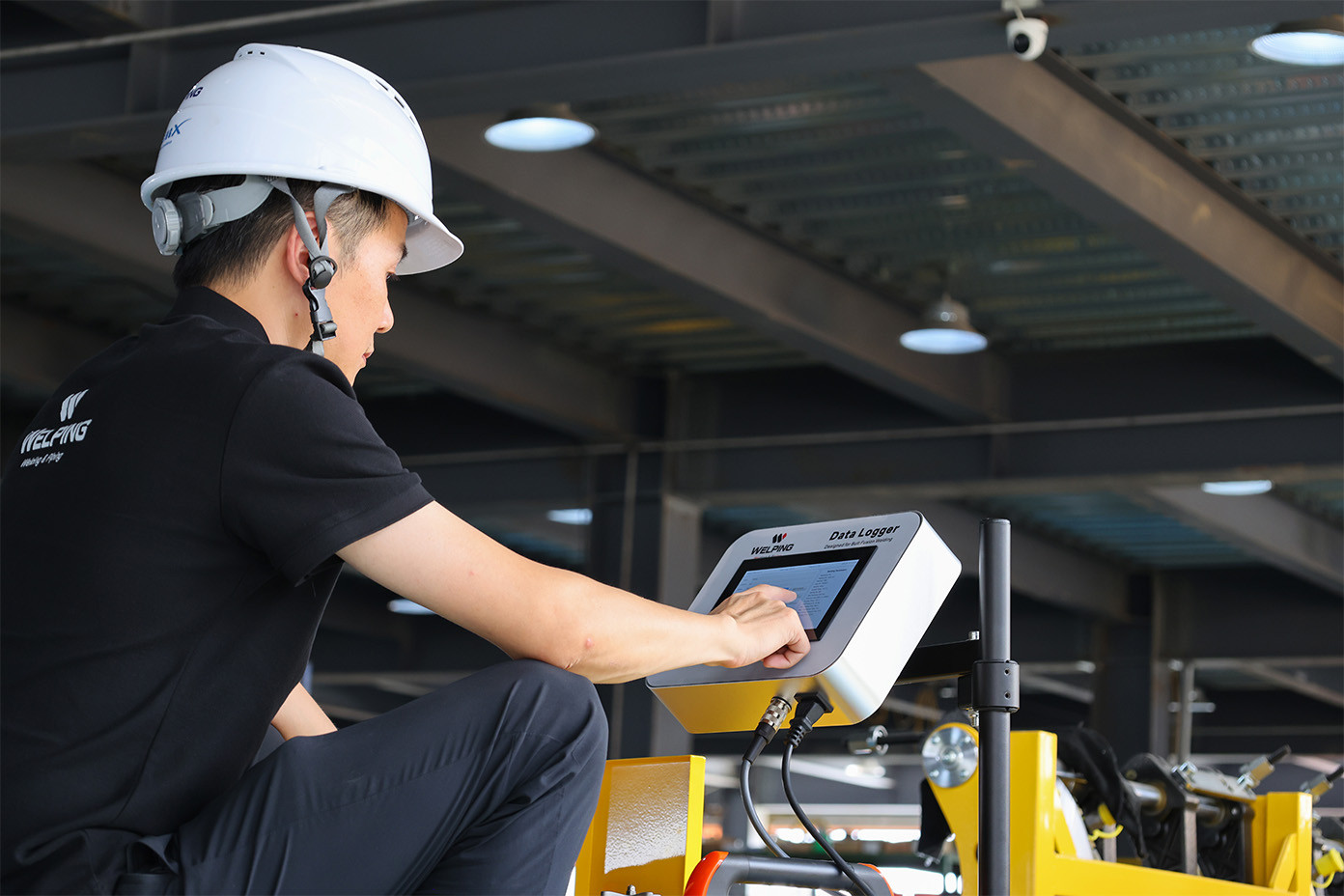

Product Overview
Professional Data Logger for HDPE Butt Fusion Welding
Tracker 7 / Tracker 10 monitors welding pressure, heating plate temperature, and ambient temperature in real time, while recording key data throughout the butt fusion process.
It also provides step-by-step welding guidance, automatic result evaluation, data export, and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276, and custom welding parameters.
Technical Specifications
| Product Function | Description |
| Real-Time Monitoring | Pressure, heating plate temperature and ambient temperature |
| Welding Guidance | 13-step butt fusion welding guidance |
| Automatic Calculation | Calculates key welding parameters based on pipe size, wall thickness, material and standard |
Welding Data Recording | Records pressure, temperature, time, pipe, machine and project information |
Result Evaluation | Compares actual data with standard values and evaluates the welding result |
Data Storage | Stores more than 10,000 welding records |
Data Export & Printing | Supports data export and individual or batch welding record printing |
Technical Specifications
| Model | Tracker 7 | Tracker 10 |
Touchscreen | Capacitive | Capacitive |
| Display Size | 7" | 10" |
| Display Resolution | 1024 × 600 | 1280 × 800 |
| Overall Dimensions | 265 × 215 mm | 317 × 270 mm |
| Net Weight | 1969 g | 2823 g |
Input Voltage | 110/220 V, 50/60 Hz | 110/220 V, 50/60 Hz |
Rated Power | 30 W | 35 W |
Pressure Range | 0–16 MPa | 0–16 MPa |
Temperature Range | 0–300°C | 0–300°C |
Temperature Sensor | PT100 | PT100 |
Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
System & Compatibility
| Item | Specification |
| Application | HDPE Pipe Butt Fusion Welding |
Operating System | Android |
Data Capacity | 10,000+ Welding Records |
| Welding Standards | ISO 21307 / DVS 2207 / GOST R 55276 / Custom |
| Pipe Standards | ISO 4427 / ISO 4437 / TIS 982 / Other |
PE Materials | PE100 / PE80 / PE63 |
Communication | RS485 / TCP / BLE Bluetooth |
USB Interface | USB-A |
TF Card Capacity | Up to 512 GB |
Wi-Fi | 2.4 GHz |

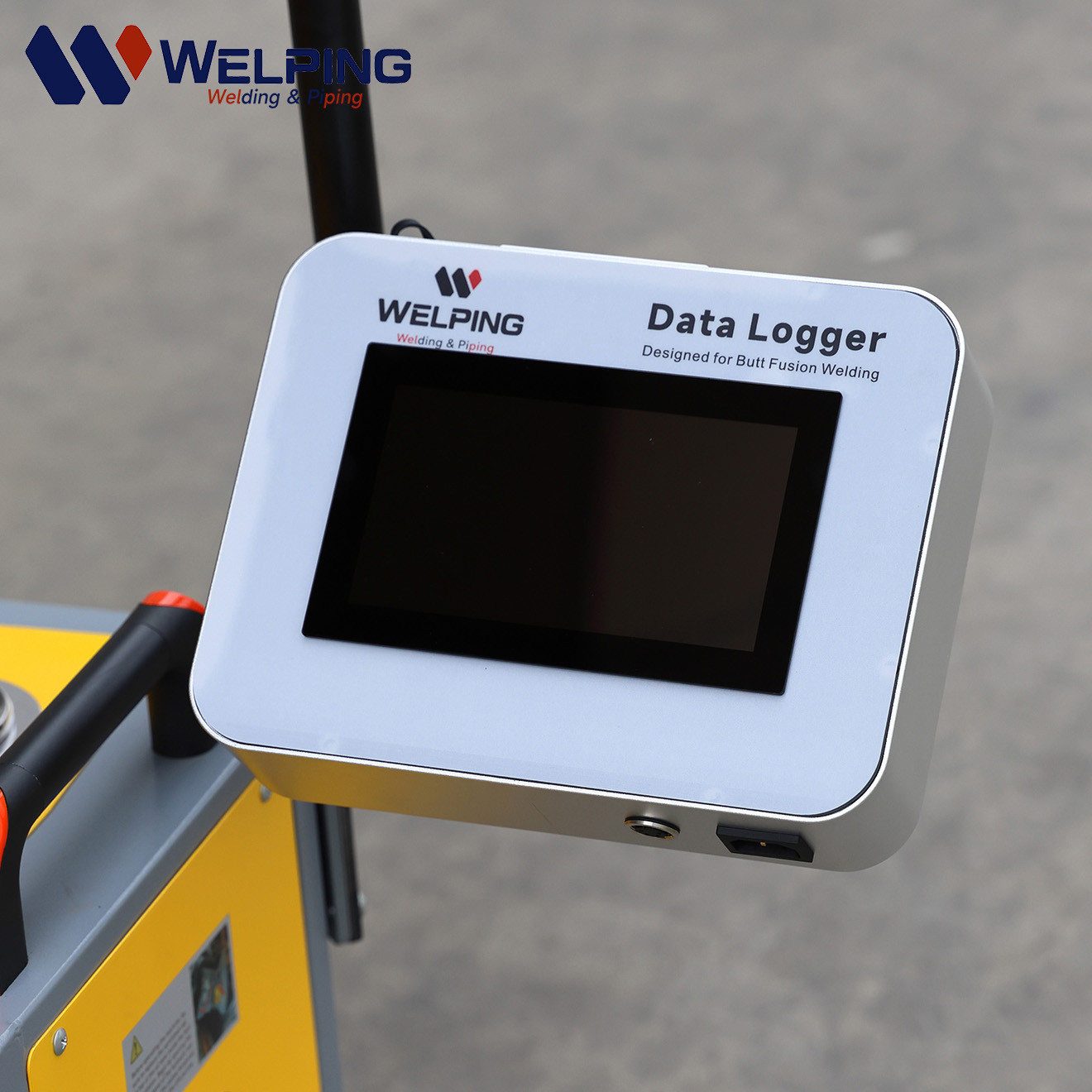

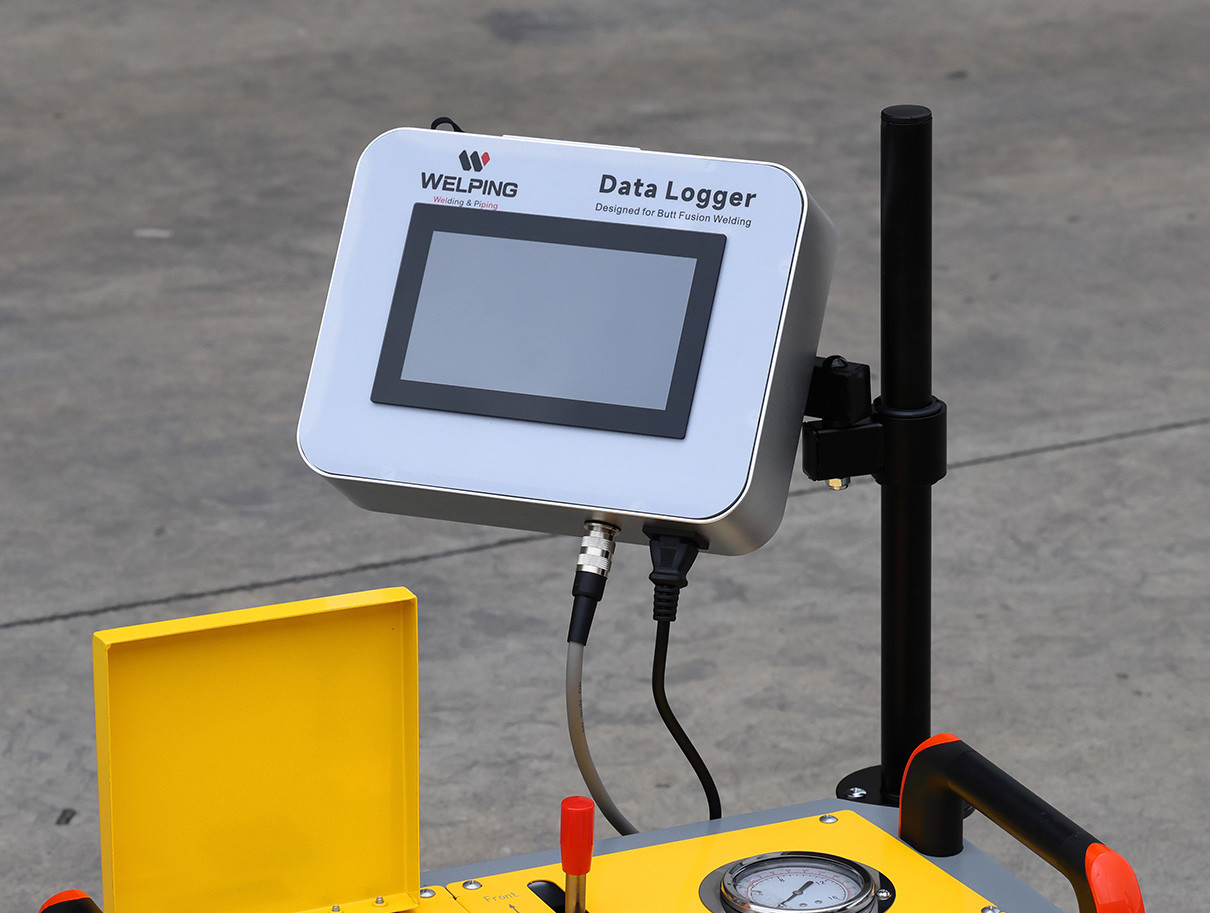

Installation | Bracket Mounting |
Languages | 9 Languages |
Machine Compatibility | Universal for 160–1200 butt fusion machines; models above 1200 require customization |

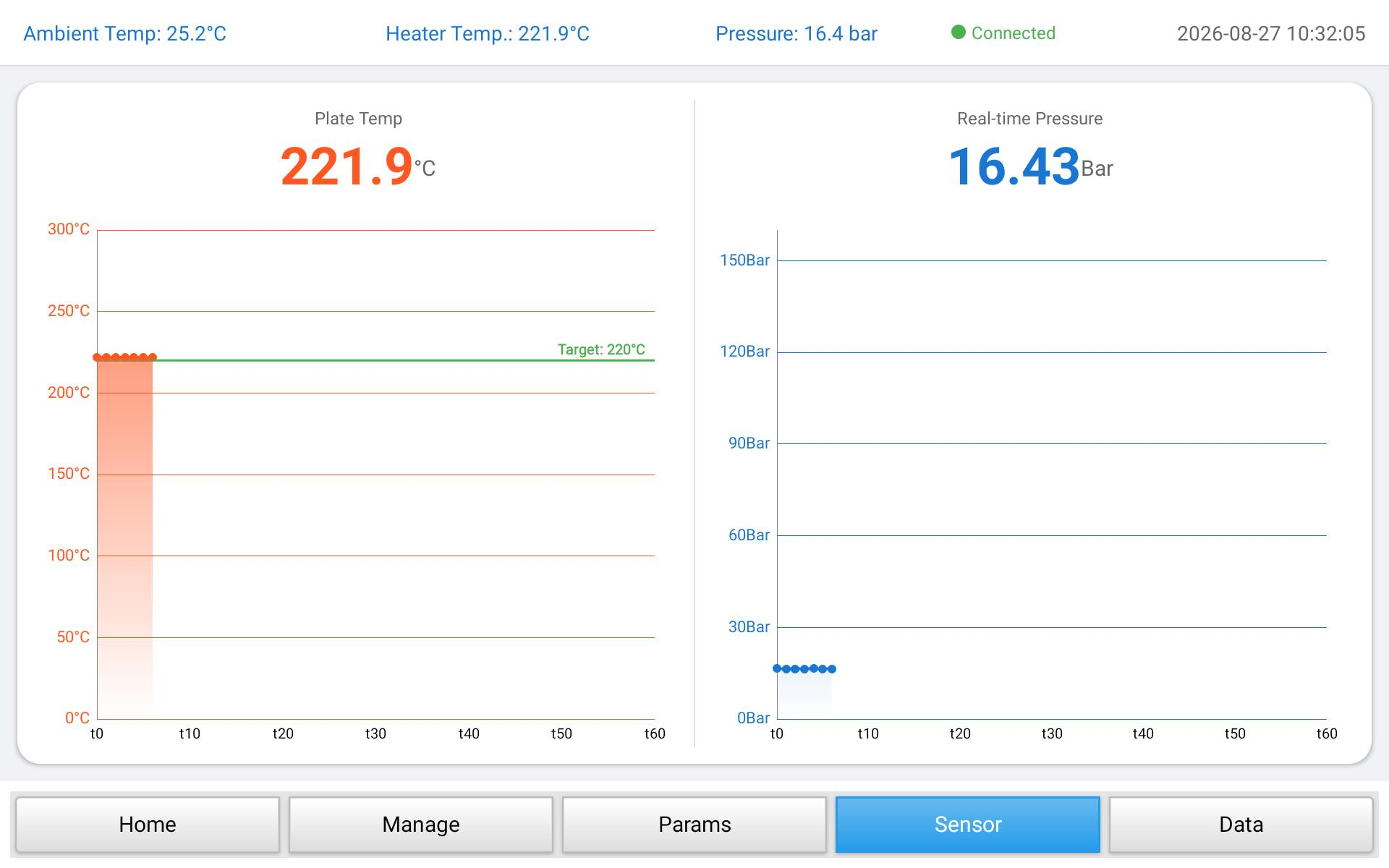

Real-Time Data Monitoring
Real-Time Data Monitoring
Monitor hydraulic pressure, heating plate temperature, and ambient temperature in real time with clear visual curves.

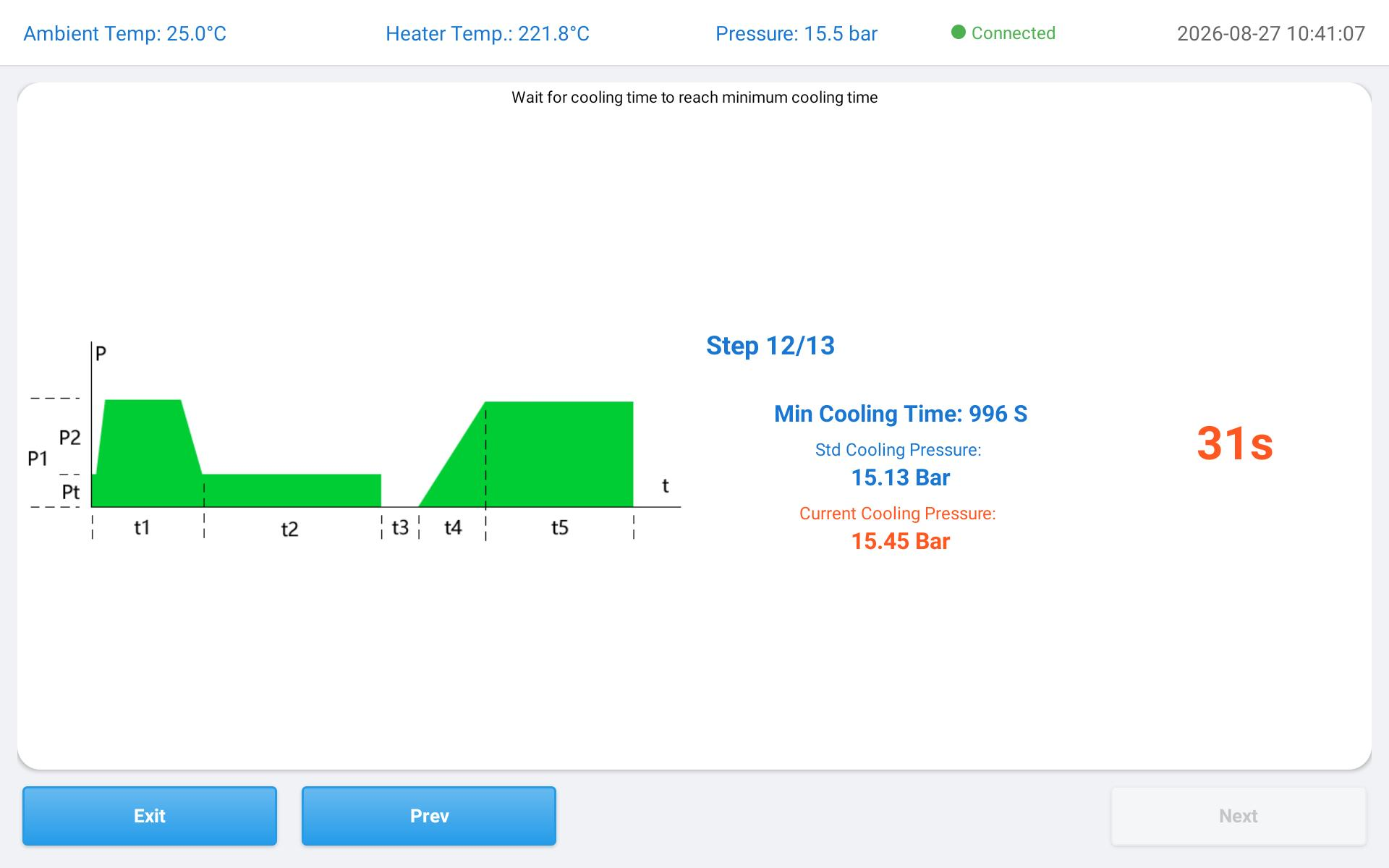

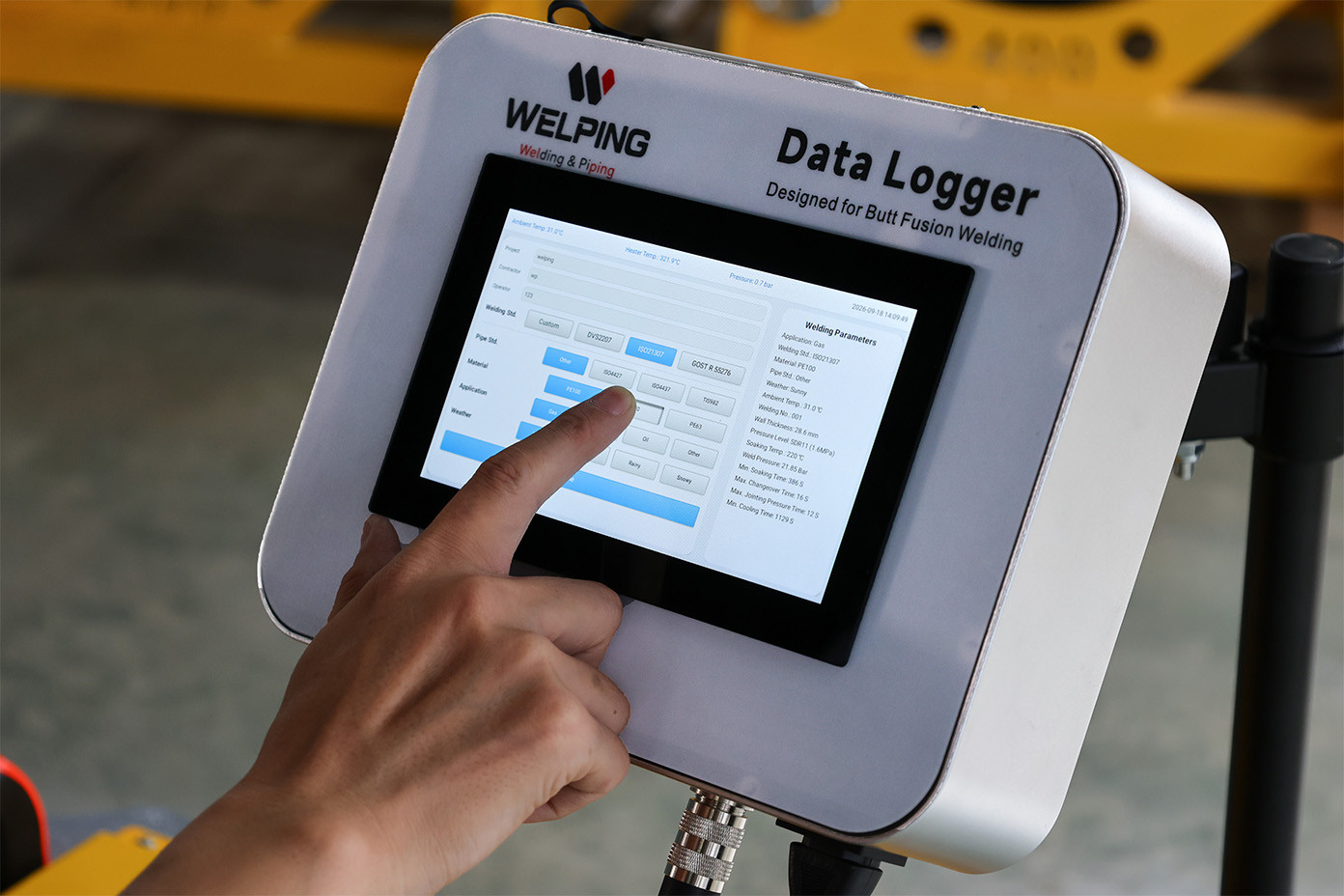

13-Step Welding Guidance
Step-by-step guidance covers the complete butt fusion process from preparation and facing to heating, changeover, pressure-up, and cooling.

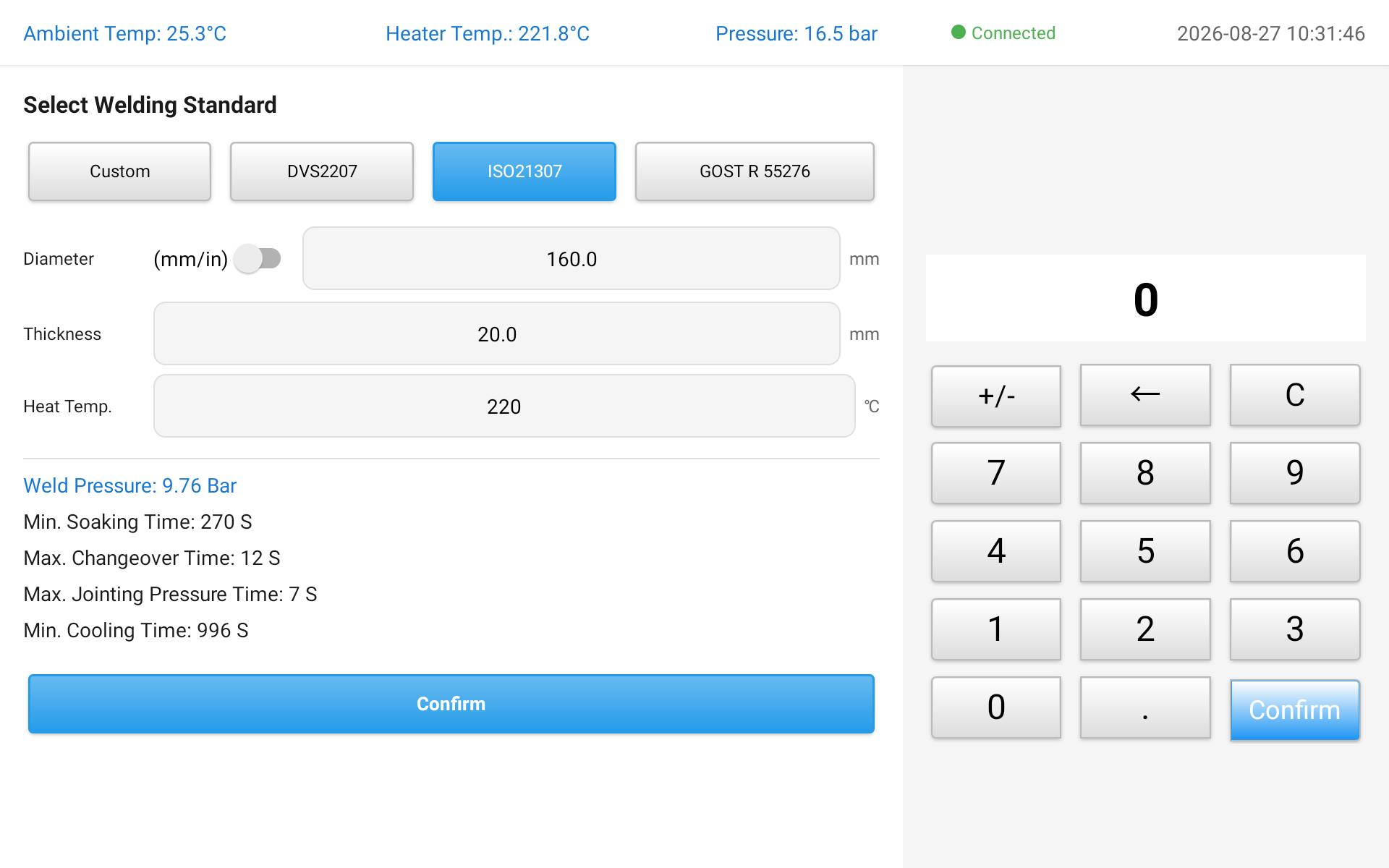

Automatic Welding Parameter Calculation
Automatically calculates key welding parameters based on pipe size, wall thickness, material, and selected welding standard.

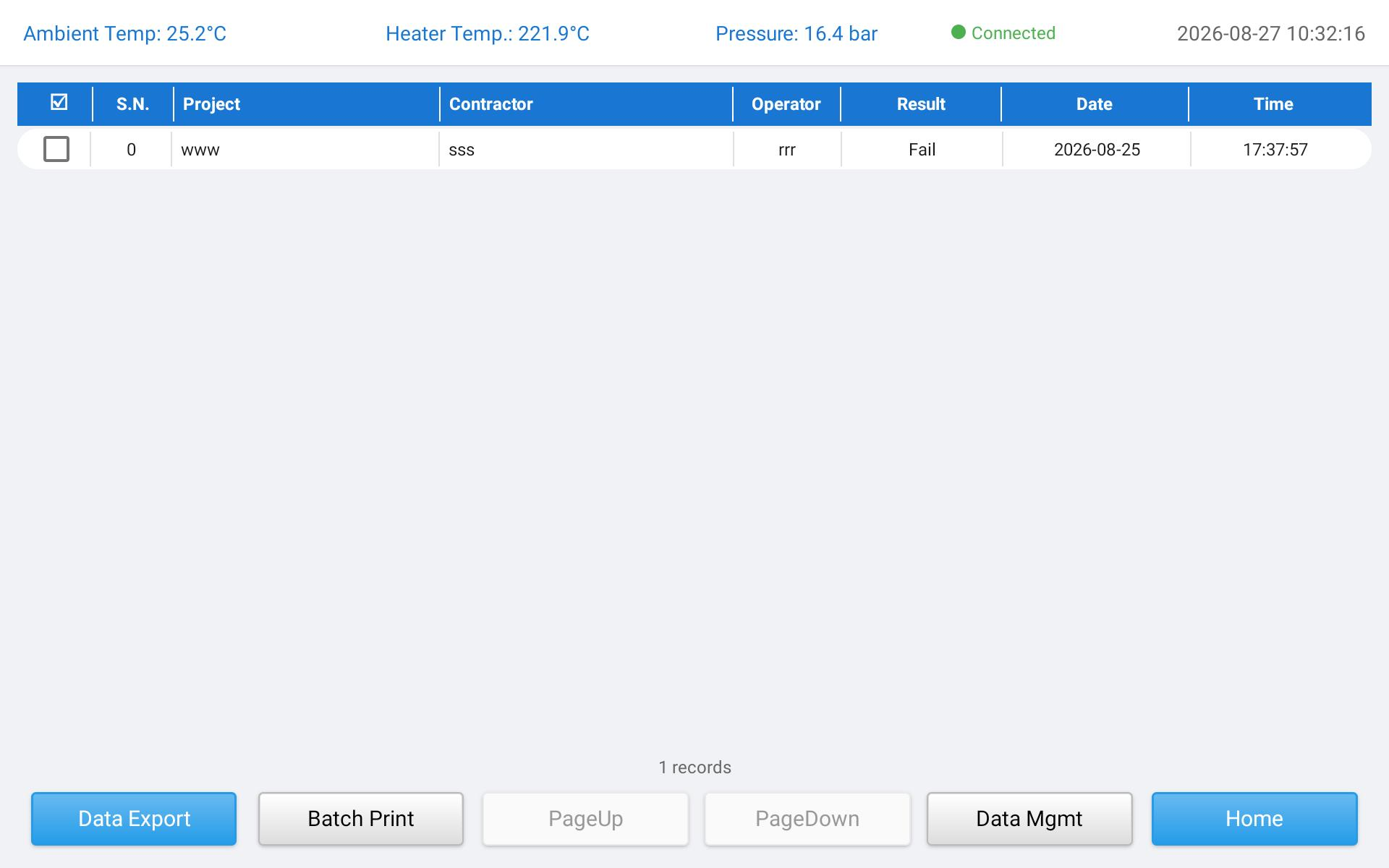

Welding Record Management
Organizes welding records by project, operator, result, date, and time for easier traceability and review.

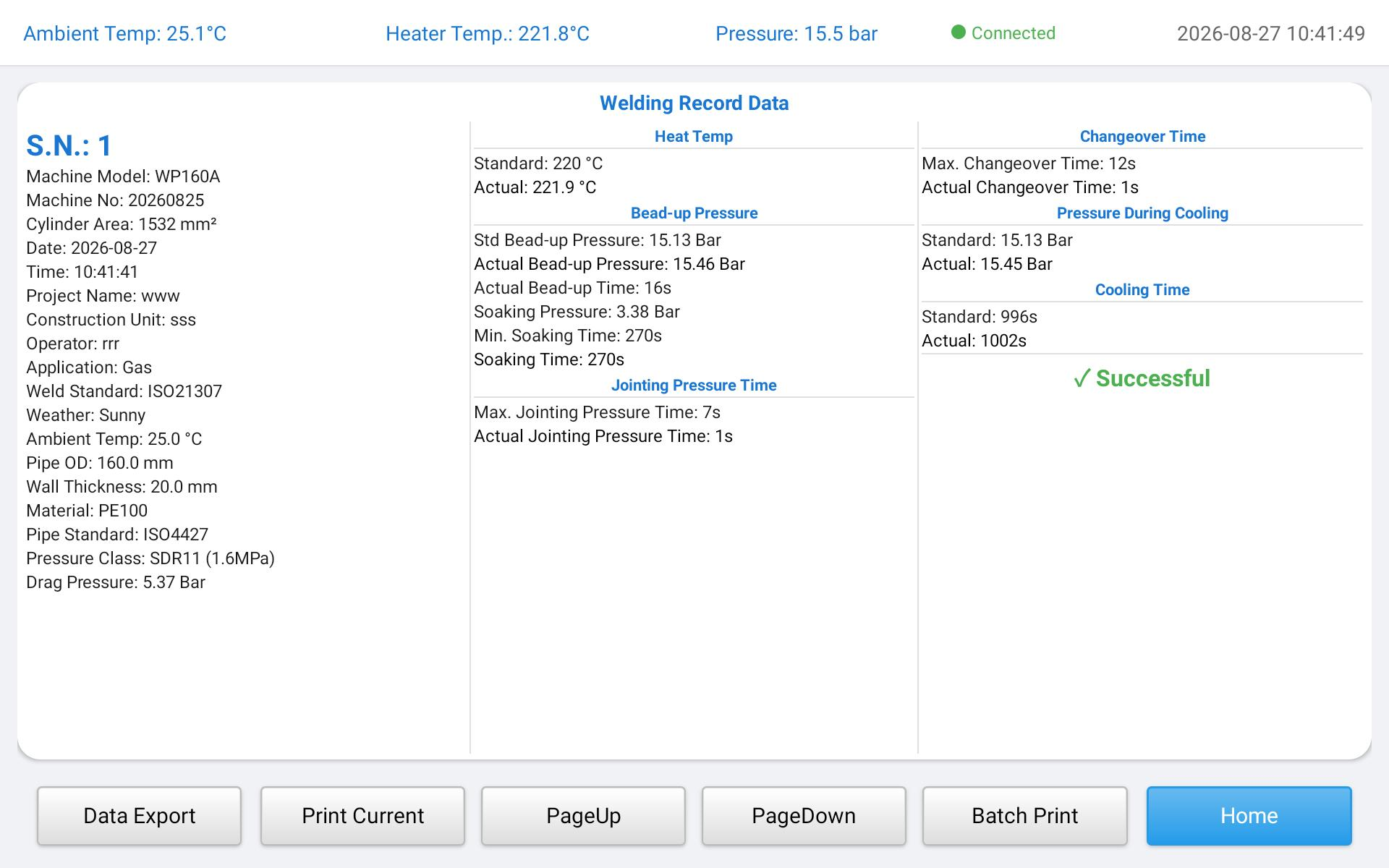

Automatic Welding Result Evaluation
Compares actual welding data with standard values and identifies qualified or unqualified results with clear fault indications.

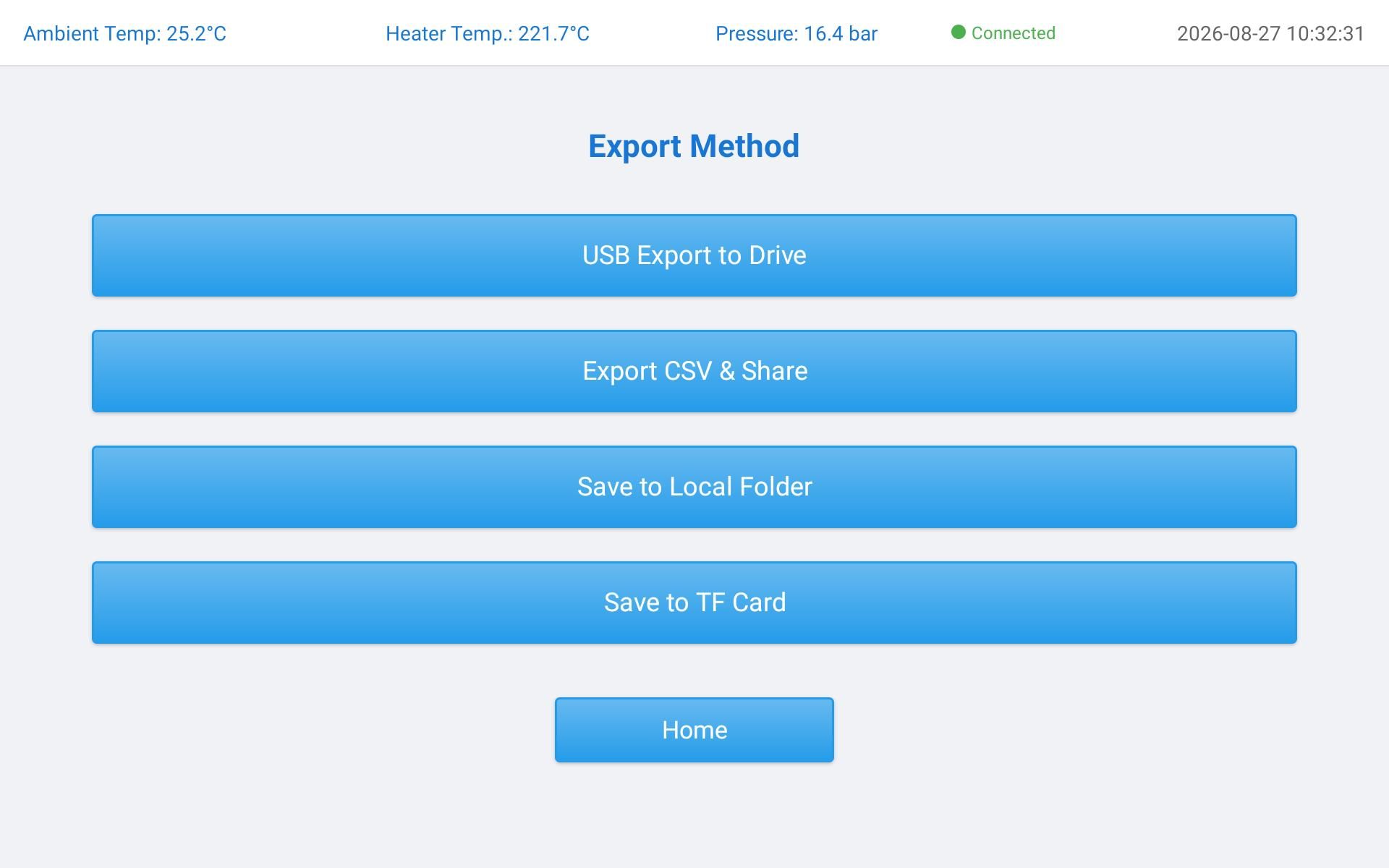

Data Storage, Export & Printing
Stores more than 10,000 welding records and supports data export, individual printing, and batch printing.
DOWNLOAD
PRACTICAL DETAILS

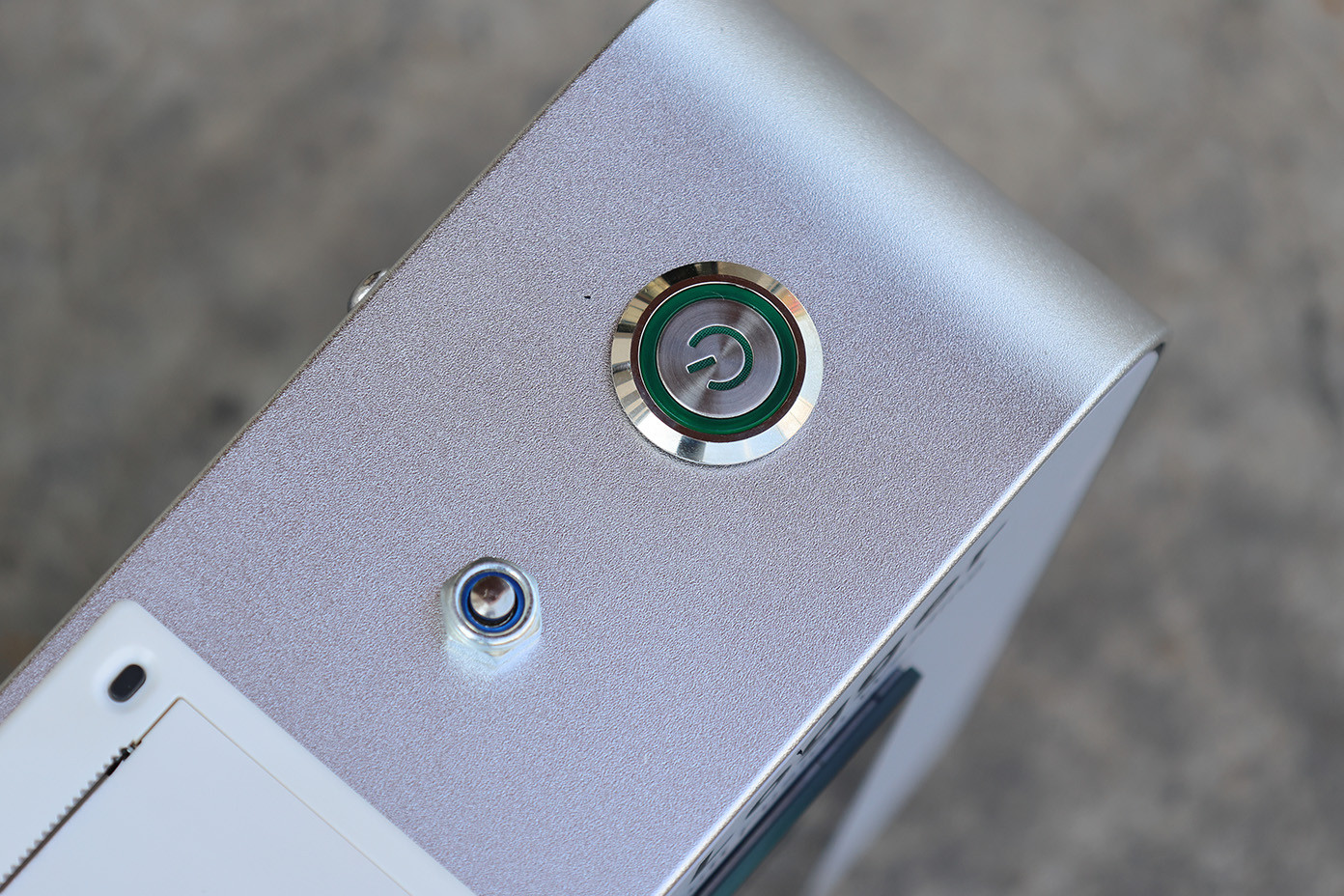

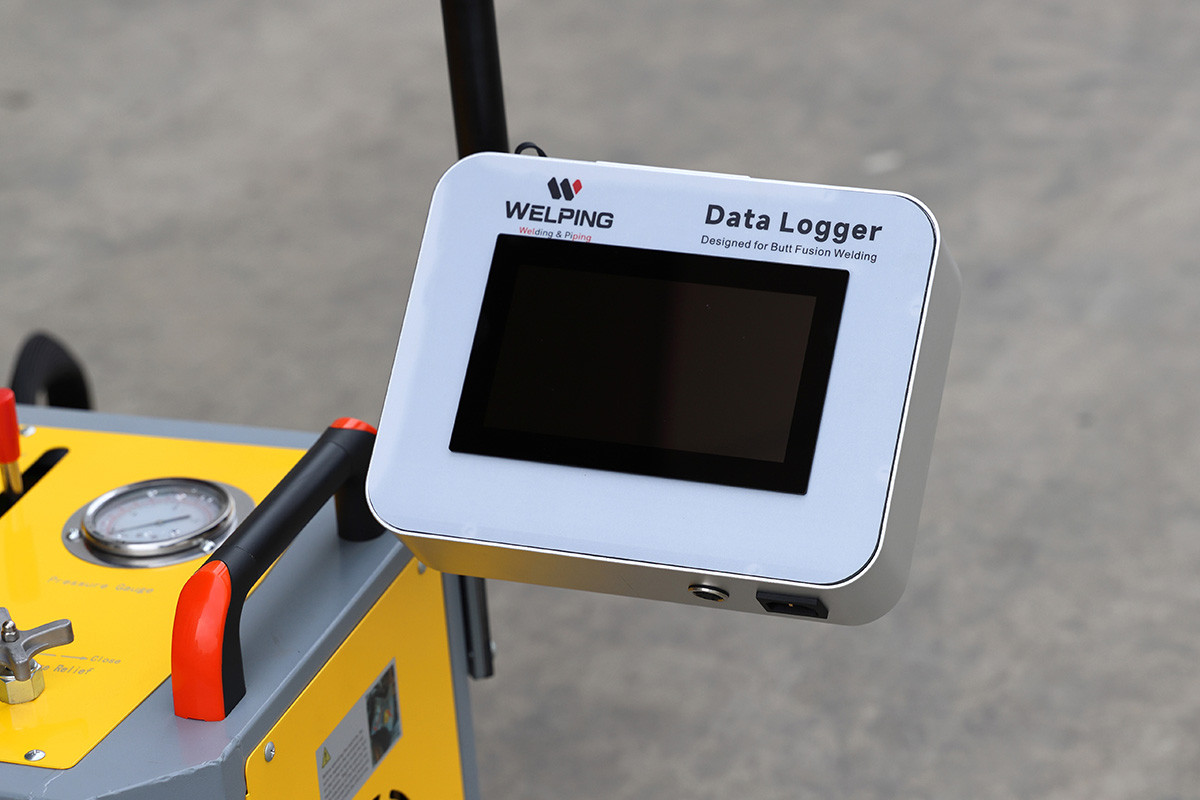

One-Touch Power Control
Simple operation with clear status indication.

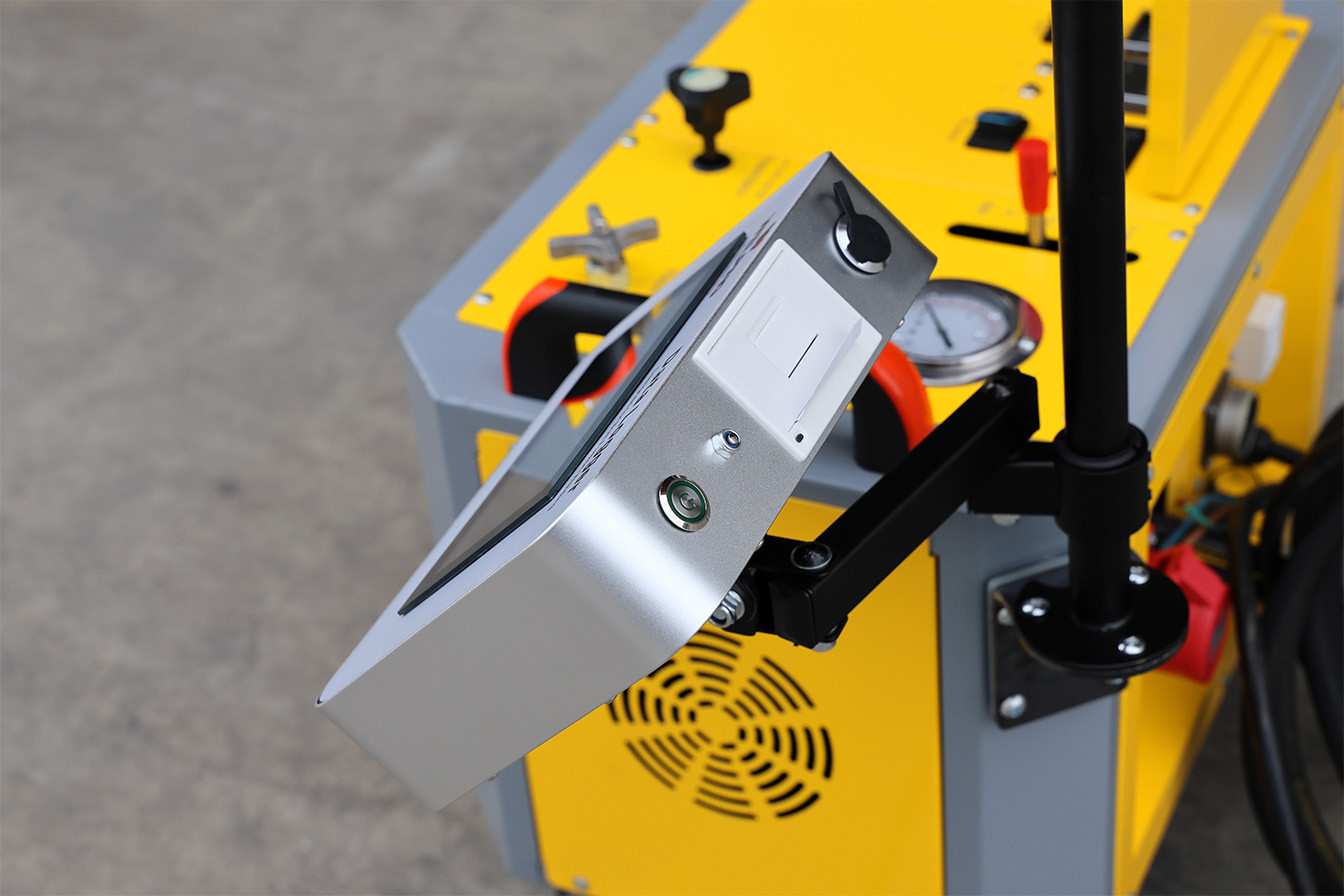

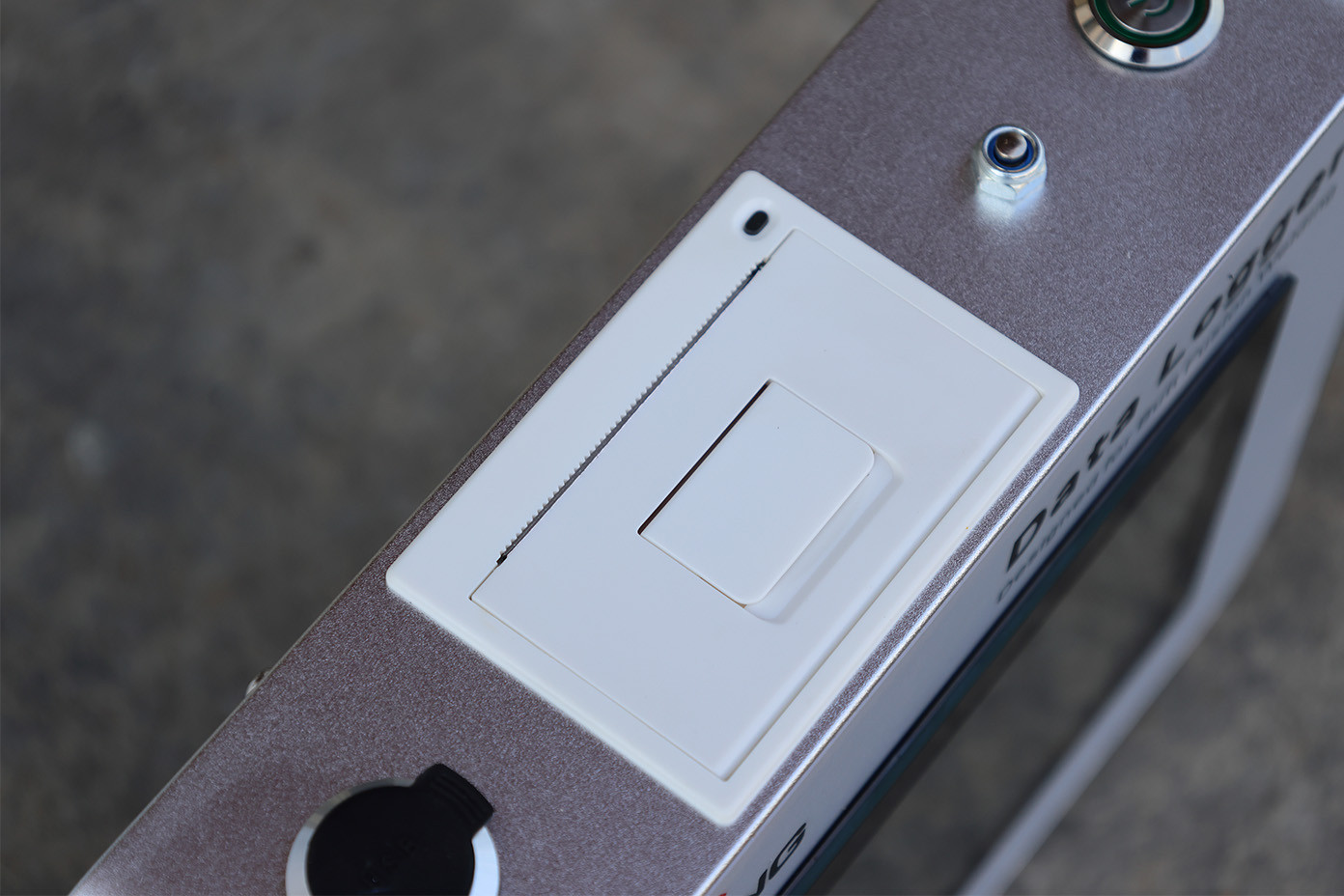

Built-in Printer
Print welding records on site, with one roll of printing paper supplied as standa

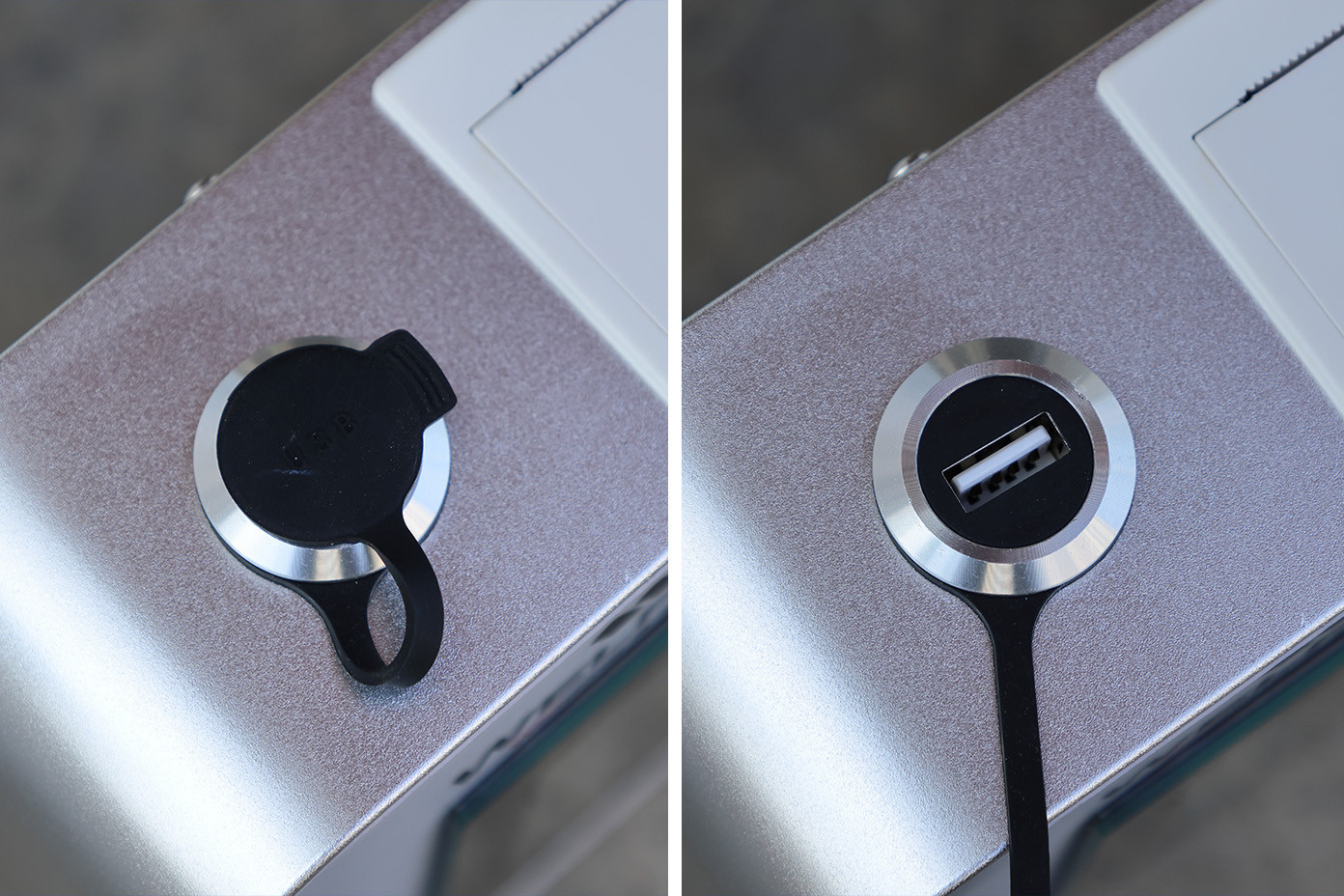

Protected USB Port
Easy data export and record backup with a protective cover for field use.

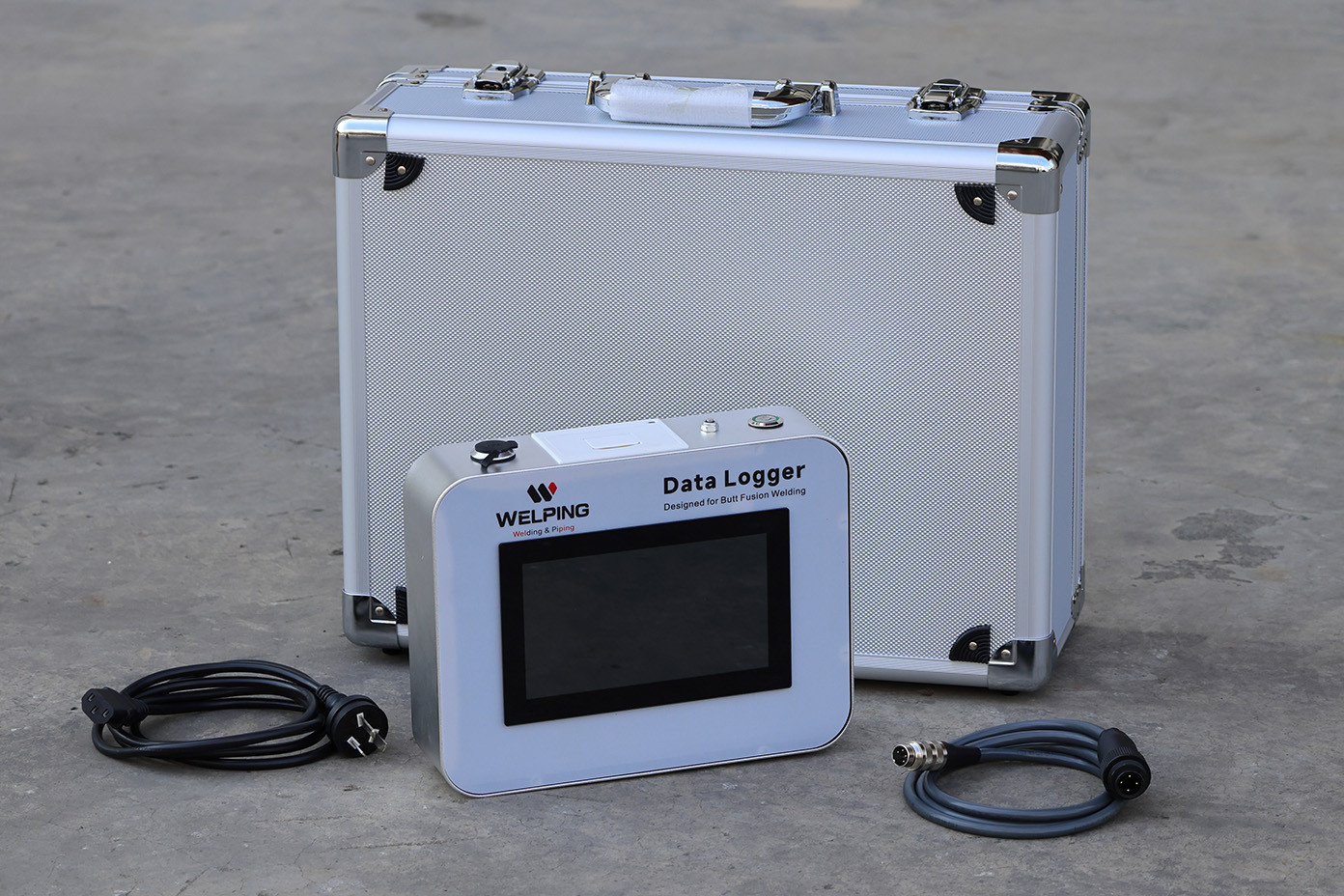

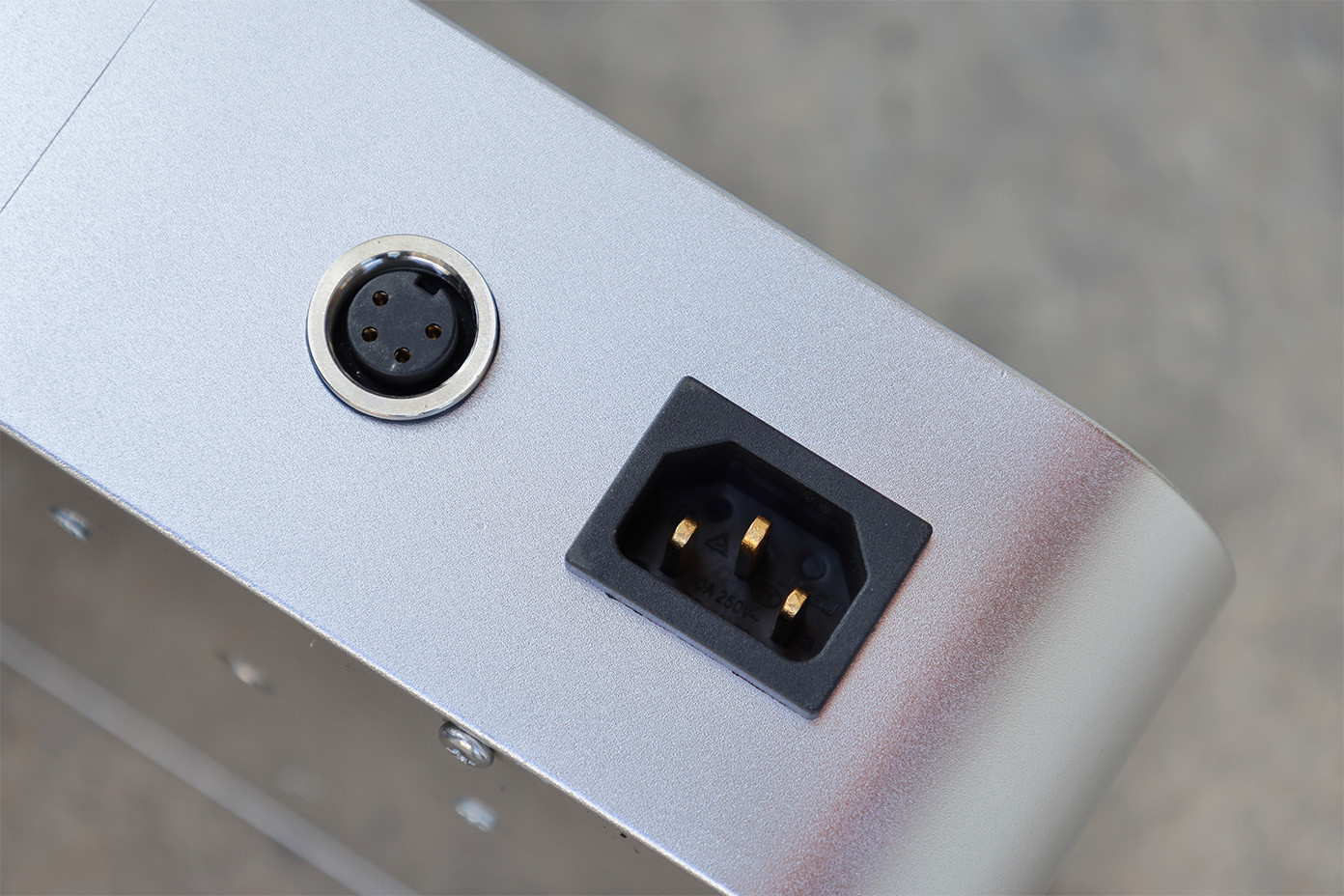

Reliable Connections
Secure interfaces for power and sensor connection.
