group nameTrucks
Min Order1 piece
brand nameYitongda China Used Cars for Sale
modelDongfeng VASOL EQ1250GL6DJ truck chassis
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update timeTue, 21 May 2024 22:32:29 GMT
Total mass (Kg) 25000
Number of passengers allowed in the cab (person) 2,3
Wheelbase (mm) 4350+1350,4750+1350,5850+1350,5350+1350
Fuel type diesel oil
Maximum speed (Km/h) 88
Min Order1 piece

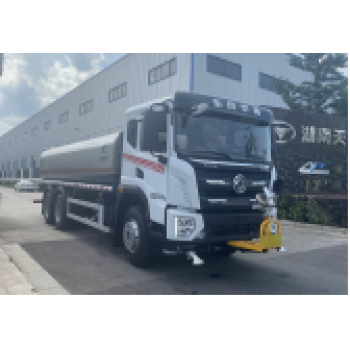

Dongfeng VASOL EQ1250GL6DJ truck chassis
DONGFENG SPECIAL COMMERCLAL VEHICLE CO., LTD a wholly-owned subsidiary of Dongfeng Group, is an important unit of Dongfeng Group to carry the specialization, specialization, lightweight, electrification, intelligence, networking and sharing of commercial vehicles.
VASOL main business covers a full range of heavy, medium, light and micro tractors, engineering vehicles, trucks, special vehicles, special vehicles, new energy vehicles, etc. The products are widely used in the fields of highway transportation, engineering construction, municipal sanitation, special operations, etc.
VASOL has occupied the first place in the market for a long time in terms of training car, truck crane and truck crane.
Zhuzhou Yitongda acts as an agent to export high-quality used car products in China Dongfeng VASOL EQ1250GL6DJ truck chassis
Product trademark
|
VASOLDongfeng | Announcement batch | 366 |
Product name
|
Truck chassis | ||
manufacturing enterprise
|
Truck chassis | Product model | EQ1250GL6DJ |
Total mass (Kg)
|
25000 | Kerb mass (Kg) | 7500,7770,8000,8200 |
Overall dimension (mm) | 9650,10050,10650,11750,10610×2510×2930,2880,2980 | ||
Chassis category | Class II | Front overhang/rear overhang (mm) | 1250/2700,1250/3100,1250/3300,1450/2500,1450/2900,1450/3100,1410/2540,1410/2940,1410/3140,1410/2500 |
Number of passengers allowed in the cab (person) | 2,3 | Wheelbase (mm) | 4350+1350,4750+1350,5850+1350,5350+1350 |
Approach angle/departure angle (°) | 28/27,28/24,28/22,25/29,25/26,25/25 | Maximum speed (Km/h) | 88 |
Number of axles | 3 | Tyre specification | 11.00R20 18PR |
Axle load (Kg) | 7000/18000 | Number of leaf springs | 9/13,13/10,3/10 |
Number of tyres | 10 | Rear track width (mm) | 1820/1820,1860/1860 |
Approach angle/departure angle (°) | 28/27,28/24,28/22,25/29,25/26,25/25 | emission standard | GB17691-2018 Ⅵ |
Front track width (mm) | 1910,1970,2020,2050,1950 | Total mass of trailer to be towed (Kg) | |
Fuel type | diesel oil | Semi-hanging saddle | |
remarks | 1. Net engine power: B6.2NS6B260 is 188kW; YCS06270-60 is 195kW; YCK05240-60 is 172kW; YCS06245-60A is 176kW; B6.2NS6B230 is 166kW; 2. Optional sun visor, optional lamp, bumper, front cover style, optional chassis layout, optional auxiliary water tank and bracket, air filter, urea tank, battery frame and other location layout, optional air filter appearance style, optional oil tank/air reservoir painting; 3. Corresponding relationship of dimension parameters (outer length=front overhang+wheelbase+rear overhang): 9650=1250+4350+1350+2700=1450+4350+1350+2500=1410+4350+1350+2540; 10050=1250+4350+1350+3100=1250+4750+1350+2700=1450+4350+1350+2900=1450+4750+1350+2500=1410+4350+1350+2940=1410+4750+1350+2540; 10650=1250+4750+1350+3300=1450+4750+1350+3100=1410+4750+1350+3140; 11750=1250+5850+1350+3300=1450+5850+1350+3100=1410+5850+1350+3140; 10610=1410+5350+1350+2500, the mass change caused by the size parameter change is less than 3%, which can be ignored; 4. ABS model and manufacturer: 3631010-C2000/East Knorr-Bremse Commercial Vehicle Brake System (Shiyan) Co., Ltd., J ABS/Jiaozuo Borak Control Technology Co., Ltd; 5. This model can be equipped with ETC vehicle-mounted device. 6. It can be equipped with wide wheel cover/narrow wheel cover/hanging step/step cover, cab door apron and no embossed photo | ||
Engine model | Engine manufacturer | Displacement (ml) | Power (Kw) |
B6.2NS6B260 | Dongfeng Cummins Engine Co., Ltd | 191 | |
YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd | 199 | |
YCK05240-60 | Guangxi Yuchai Machinery Co., Ltd | 176 | |
YCS06245-60A | Guangxi Yuchai Machinery Co., Ltd | 180 | |
B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd | 169 |
