TYF-DB-CY-04 Large Format Slab Handling System Featuring Electric Vacuum Suction Cups | Ideal for Wholesale and OEM/ODM Partnerships
group nameLarge Format Slab Handing System
-
Min Order1 piece
brand nameTILER tile cutting and laying tools distrubutor
modelTYF-DB-CY-04
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash
-
update timeFri, 05 Dec 2025 21:29:48 GMT
Paramtents
Material Premium aluminum alloy
Suction cup type Heavy duty vacuum suction cup 8 inch
Number of suction cup 6
Maximum load capacity 260kgs
Power source Li-ion-powered
Packging & Delivery
Min Order1 piece
Briefing
TYF-DB-CY-04 Large Format Slab Handling System with Electric Vacuum Suction Cups | Perfect for OEM/ODM and Wholesale Partnerships.
Detailed
◢ SPECIFICATION
|
ART
|
QTY/INNER BOX
|
QTY/OUTER BOX
|
|
TYF-DB-CY-04
|
/
|
1PC
|
◢ DESCRIPTION
TYF-DB-CY-04 Large Format Slab Handling System Featuring Electric Vacuum Suction Cups | Ideal for Wholesale and OEM/ODM Partnerships

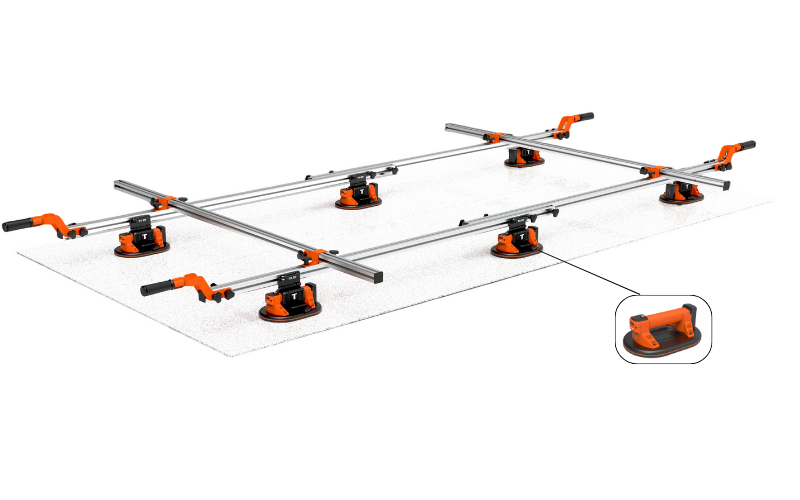

- The large format slab handing system is specially designed for handling large format slabs up to 360 cm in length.
- Reinforced aluminum profile. Greater structural strength.
- The set consists of two retractable and adjustable extruded aluminum guides, ranging from 160 to 360 cm.
- The system is equipped with 6 heavy-duty electric vacuum suction cups that securely fix the system in place. These suction cups are easily positionable and allow for adjustable fixing points, ensuring the safe handling of large format sheets.
- Handle kit makes lifting the slab even more comfortable.
- The crossbars can be easily released for transporting long narrow slabs.
- Maximum load capacity: 260 kg.
- Electric Suction Cup Spc.
Battery: 4000 mAh
Voltage: 3.7 V
Cup Material: Nitrile Rubber
Cup Dia.: 240 x 160 mm
Max Force: 260 Kgs
Lateral Force: 160 Kgs
◢FAQ
What is the maximum slab size and weight this system can handle?
Our system is engineered for large-format materials. It can securely handle slabs up to 360 cm in length and has a maximum load capacity of 260 kg.
How is the system powered, and what is the battery life of the suction cups?
The system features independent, heavy-duty electric vacuum suction cups. Each one is powered by a robust 4000 mAh battery, ensuring extended operation without the need for frequent recharging during handling tasks.
Can the system be adjusted for different slab sizes and shapes?
Absolutely. The system includes two retractable and adjustable extruded aluminum guides, allowing the width to be set from 160 cm to 360 cm. Furthermore, the crossbars can be released for transporting long, narrow slabs, and the six suction cups are easily repositionable for optimal placement.
What safety features are in place to prevent the slab from slipping or dropping?
Safety is a core design principle. The six electric vacuum suction cups provide a powerful and secure fixation, with a maximum vertical holding force of 260 kg. The system is constructed from reinforced aluminum profiles for greater structural strength and to prevent flexing, ensuring stable and safe handling.
What are the specifications of the electric suction cups?
The heavy-duty electric suction cups feature a large, nitrile rubber sealing surface (240 x 160 mm), providing excellent grip on various materials. They operate on a 3.7 V system and can generate a maximum vertical force of 260 kg, with a lateral force capacity of 160 kg.
Is this system suitable for OEM/ODM partnerships and wholesale?
Yes, we specialize in providing ideal solutions for wholesale and OEM/ODM partnerships. We can work with you to customize this large-format slab handling system to meet your specific branding and operational requirements.
