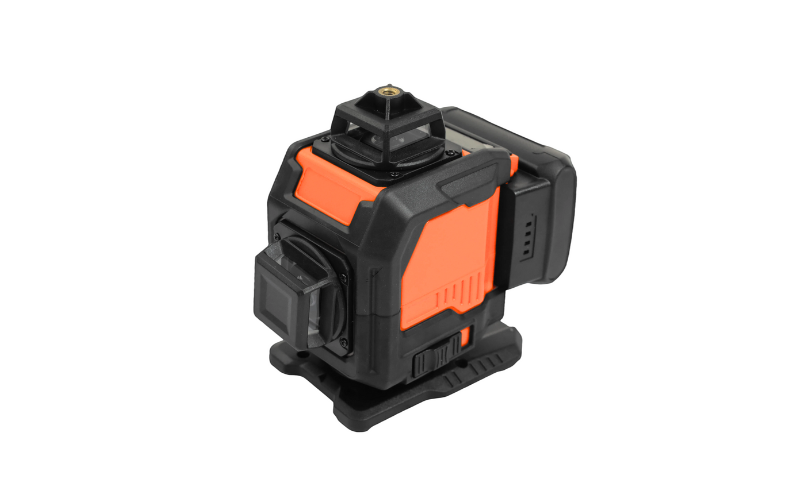

TCJ-10 16-Line Green Beam Laser Level |±3mm/10m Accuracy | IP54 Dust & Water Resistant | Ideal for Professional Tiling Projects
group nameLaser Level
-
Min Order1 piece
brand nameTILER tile cutting and laying tools distrubutor
modelTCJ-10
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash
-
update timeFri, 05 Dec 2025 15:16:25 GMT
Paramtents
LASER CLASS CLASS II
LASER WAVELENGTH GREEN BEAM: 515NM
H/V ACCURACY ±3MM/10M
SELF-LEVELING RANGE 3°±1°
WORKING RANGE 30M / RED: 15M
POWER SUPPLY LITHIUM BATTERY 3600MAH
OPERATING TEMPERATURE -20°C TO 40°C
MOUNT SIZE 1/4-20 MOUNTING THREAD
IP RATING IP54
Packging & Delivery
Min Order1 piece
Briefing
Advanced TCJ-10 16-Line Green Beam Laser Level | Accurate ±3mm/10m | IP54 Dust & Water Resistant | Offering OEM, ODM, and Wholesale Options for Professional Tilers
Detailed
◢ SPECIFICATION
|
ART
|
QTY/INNER BOX
|
QTY/OUTER BOX
|
|
TCJ-10
|
/
|
/
|
◢ DESCRIPTION
TCJ-10 16-Line Green Beam Laser Level |±3mm/10m Accuracy | IP54 Dust & Water Resistant | Ideal for Professional Tiling Projects
▪ 16-Line Comprehensive Coverage: Projects 16 laser lines for complete spatial layout from a single setup, significantly improving efficiency in complex installation and construction projects
▪ High-Visibility Green Beam Technology: Features 515nm green laser wavelength providing brighter, clearer lines visible up to 30 meters for enhanced visibility in various lighting conditions
▪ Enhanced Precision Engineering: Delivers superior ±3mm/10m accuracy with refined self-leveling range of 3°±1° for professional-grade results in demanding applications
▪ Rugged Environmental Protection: IP54 rating ensures reliable operation against dust and water splashes, combined with extended temperature tolerance (-20°C to 40°C) for challenging job sites
▪ Long-Lasting Power System: Integrated 3600mAh lithium battery supports extended operation with standard 1/4-20 mounting thread for universal compatibility with tripods and accessories
◢FAQ
What advantages does the 16-line configuration offer over standard models?
The 16-line system provides comprehensive coverage for complex layout tasks, allowing professionals to visualize multiple reference points simultaneously - significantly reducing setup time and improving accuracy in projects requiring extensive alignment points.
How does the green beam technology benefit daily use?
The 515nm green beam is significantly brighter and more visible than standard red beams, particularly in well-lit environments. This enhances productivity by making lines easier to see at longer distances (up to 30m) and reducing eye strain.
What makes the TCJ-10 suitable for outdoor or harsh environments?
With its IP54 dust/water resistance and wide operating temperature range (-20°C to 40°C), the TCJ-10 maintains reliable performance in challenging conditions including construction sites, unfinished buildings, and variable weather conditions.
How long does the 3600mAh battery typically last on a single charge?
The high-capacity 3600mAh lithium battery provides extended runtime, typically supporting a full workday or more of continuous use, reducing downtime and ensuring project continuity.
Is the mounting system compatible with standard accessories?
Yes, the standard 1/4-20 mounting thread ensures full compatibility with most professional tripods, mounting poles, brackets, and accessories commonly used in construction and surveying applications
What level of accuracy can I expect from this laser level?
The TCJ-10 delivers professional-grade ±3mm accuracy at 10 meters with a precise self-leveling system (3°±1° range), making it suitable for applications requiring high precision such as cabinetry, tiling, and structural framing.
