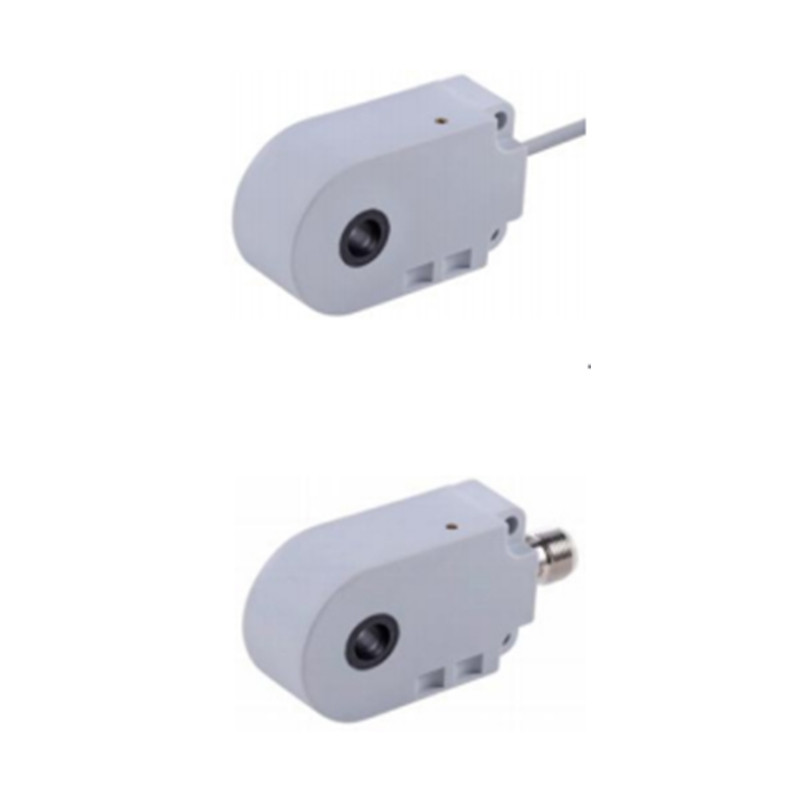

Ring Inductive Proximity Sensor | Time-delay Dynamic Mode | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK
group nameRing Inductive Proximity Sensor
-
Min Order1 piece
brand nameDADISICK
modelRing Inductive Proximity Sensor | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector | LI09-20NS-ZBA-4A-PN, LI09-20PS-ZBA-4A-PN, LI10-20NS-ZBA-4A-PN, LI10-20PS-ZBA-4A-PN, LI10-20NS-YBA-TA-PN, LI10-20PS-YBA-TA-PN, LI12-20NS-ZBA-4A-PN, LI12-20PS-ZBA-4A-PN, LI12-20NS-YBA-TA-PN, LI12-20PS-YBA-TA-PN, LI14-20NS-ZBA-4A-PN, LI14-20PS-ZBA-4A-PN, LI14-20NS-YBA-TA-PN, LI14-20PS-YBA-TA-PN, LI15-20NS-ZBA-4A-PN, LI15-20PS-ZBA-4A-PN, LI15-20NS-YBA-TA-PN, LI15-20PS-YBA-TA-PN
-
update timeFri, 05 Dec 2025 21:31:51 GMT
Paramtents
Inner Hole DiameterInner: 9, 10, 12, 14, 15mm
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
Min Order1 piece
Briefing
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
Ring Inductive Proximity Sensor Time-delay Dynamic Mode Pre-wired and Connector Series Datasheet |
|||||||||||
Model |
Output | Connection | Inner hole diameter | Sensing distance | Maximum load current | Mounting | Operating voltage | Case material |
|||
LI09 Pre-wired | LI09-20NS-ZBA-4A-PN | NPN NO+NC | 2 M cable | 9mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI09-20PS-ZBA-4A-PN
| PNP NO+NC | ||||||||||
LI09 Connector | LI09-20NS-YBA-TA-PN
| NPN NO+NC | M12 connector | ||||||||
LI09-20PS-YBA-TA-PN
| PNP NO+NC | ||||||||||
LI10 Pre-wired | LI10-20NS-ZBA-4A-PN | NPN NO+NC | 2 M cable | 10mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI10-20PS-ZBA-4A-PN
| PNP NO+NC | ||||||||||
LI10 Connector | LI10-20NS-YBA-TA-PN
| NPN NO+NC | M12 connector | ||||||||
LI10-20PS-YBA-TA-PN
| PNP NO+NC | ||||||||||
LI12 Pre-wired | LI12-20NS-ZBA-4A-PN | NPN NO+NC | 2 M cable | 12mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI12-20PS-ZBA-4A-PN
| PNP NO+NC | ||||||||||
LI12 Connector | LI12-20NS-YBA-TA-PN
| NPN NO+NC | M12 connector | ||||||||
LI12-20PS-YBA-TA-PN
| PNP NO+NC | ||||||||||
LI14 Pre-wired | LI14-20NS-ZBA-4A-PN | NPN NO+NC | 2 M cable | 14mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI14-20PS-ZBA-4A-PN
| PNP NO+NC | ||||||||||
LI14 Connector | LI14-20NS-YBA-TA-PN
| NPN NO+NC | M12 connector | ||||||||
LI14-20PS-YBA-TA-PN
| PNP NO+NC | ||||||||||
LI15 Pre-wired | LI15-20NS-ZBA-4A-PN | NPN NO+NC | 2 M cable | 15mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI15-20PS-ZBA-4A-PN
| PNP NO+NC | ||||||||||
LI15 Connector | LI15-20NS-YBA-TA-PN
| NPN NO+NC | M12 connector | ||||||||
LI15-20PS-YBA-TA-PN
| PNP NO+NC | ||||||||||
|
Electrical data
|
|||||
|
LED display
|
Yes
|
||||
|
Allowable ripple voltage
|
<10%
|
||||
Minimum interval time of the object to be detected | 0.2ms | ||||
|
No-load current
|
<10mA
|
||||
Leakage current | <0.01mA | ||||
Adjustable pulse width time
| 0.1-200ms
| ||||
Response time | 0.1ms | ||||
Voltage drop | <1.5v at 200mA | ||||
Switching frequency | 2KHZ | ||||
Adjustable sensitivity | Yes | ||||
Switching hysteresis | 15% | ||||
Repeat accuracy | <2%（Sr） | ||||
Degree of protection | IP67 | ||||
Operating temperature | -25℃ to +70℃ | ||||
Temperature drift | ±10%（Sr） | ||||
Minimum detection object | Steel ball diameter 2.5mm (Inner hole diameter 9mm), Steel ball diameter 3mm (Inner hole diameter 10mm), Steel ball diameter 3.5mm (Inner hole diameter 12mm), Steel ball diameter 4mm (Inner hole diameter 14mm), Steel ball diameter 4.5mm (Inner hole diameter 15mm) | ||||
Fastest passing speed
| 40m/s | ||||
Load short-circuit protection / reverse polarity protection | Yes | ||||
Overload protection | 220mA | ||||
