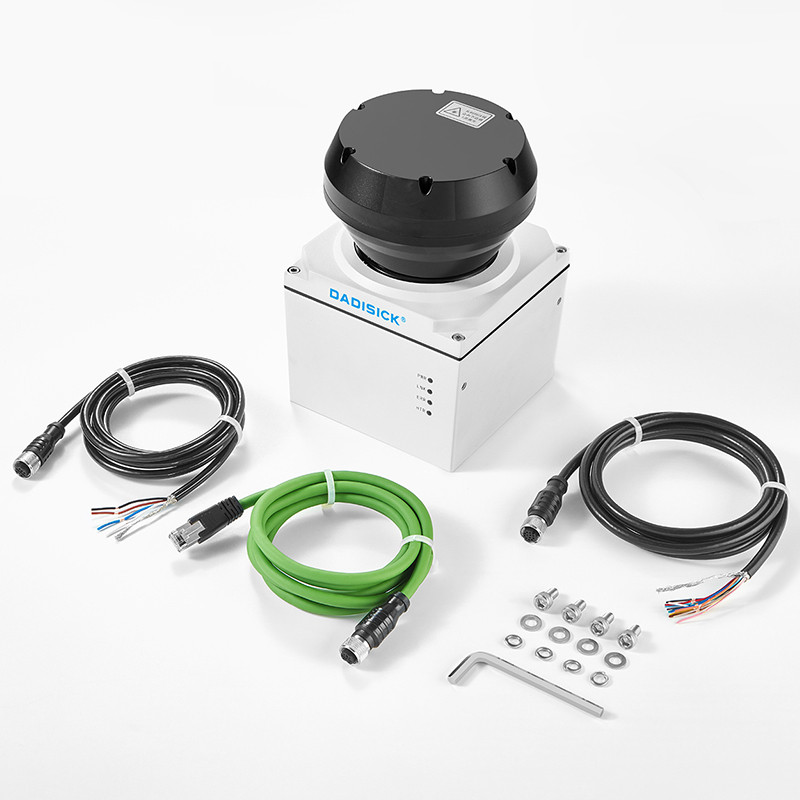

Laser Scanning Radar Basic Information
Product number	Measurement type laser scanning radar
Model	DK-LD-100L / DK-LD-101L
Output	I/O output & Ethernet output

Features	DK-LD-100L	DK-LD-101L
Light source	Infrared laser (905 nm)
Laser safety level	Class I (GB 7247.1-2012, eye-safe)
Laser spot exit diameter	12mm
Laser spot divergence angle	6mrad
Scanning angle range	270°
Scanning frequency	25 Hz
Scanning Angular Resolution	0.5°	0.25°
Sensing range	0.07m – 100m
10% reflectivity range	50m
Outdoor performance	Resistant to dirt and sunlight
Rain, fog, and dust penetration	Supported

Technical Performance
Measurement error (Typical) ● Systematic Error ● Statistical Error (1σ)	2cm(1m~20m) / 4cm(20m~50m) 1cm(1m~20m) / 2cm(20m~50m)


Built-in application	● Area Monitoring ● Monitoring Modes: Point Count Monitoring / Target Width Monitoring / Contour Monitoring ● Monitoring Signal Types: Attention / Warning / Alarm ● Number of Area Groups: 16 groups, supports self-learning background cropping ● Number of Concurrent Working Area Groups: 16 (max) ● Guides network cameras to perform video positioning and tracking of monitored targets.
Device Self-Test	● Content: Dirty/Obstructed light-transmitting cover/High temperature/Low temperature/Dense fog ● Output method: Indicator light + TCP message
Device Interface
Ethernet	Speed: 10/100 Mbps Network Protocol: TCP / UDP Functions: Device configuration / Measurement data output / Area monitoring signal output
I/O input	Quantity: 4 Type: Level Input High Level Range: DC 10V – 30V Low Level Range: DC 0V – 0.7V Preset Functions: Force Cancel/Force Enable Area Monitoring Signal, Valid Level: High Level Power Saving and Life Extension Control, Valid Level: High Level
I/O output	Quantity: 4 units Type: PNP/NPN switch output Maximum switching voltage: DC30V Power-on status: Off Preset function: Device ready/area monitoring signal output, valid status: conǁgurable
Indicator light	Quantity: 4 Definitions: PWR (Power Supply) LNK (Ethernet) ERR (Equipment Alarm: Diǅy/Obstructed/Dense Fog, High/Low Temperature) HTR (Normal Measurement)
Mechanical/electronic paramete
Operating voltage	DC 10V – 30V
Power consumption	6W (measurement), 16W@DC12V / 32W@DC24V (heating)
Degree of protection (IP)	IP67(GB 4208-2008)
Insulation resistance	1MΩ (GB 16796-2009, 5.4.4)
Electric strength	0.5KV (GB 16796-2009, 5.4.3)
Dimension (L ╳ W ╳ H)	126 × 126 × 184 (mm)
Interface cable lenght	1.5 meters
Weight	1.76Kg
