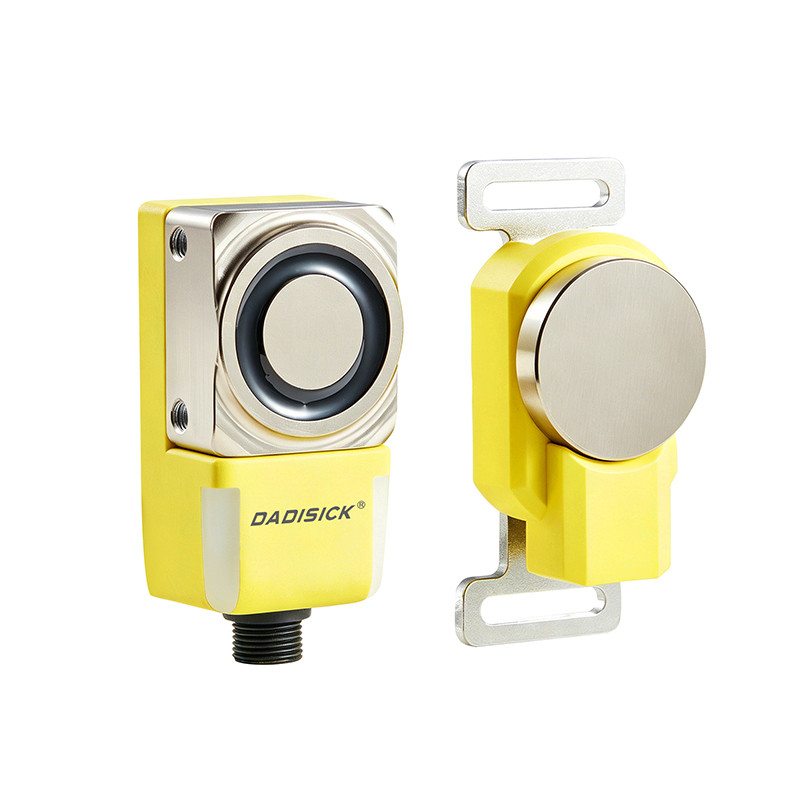

Industrial Electromagnetic Safety Switch with Strong Locking Force | DK-OX-D51
group nameElectromagnetic Safety Switch DK-OX-D51 series
-
Min Order1 piece
brand nameDADISICK
modelDK-OX-D51
-
update timeThu, 21 May 2026 12:30:04 GMT
Paramtents
Safety Output： Dual-channel Output
Output Modes： Dual NPN / PNP Output
Locking Methods： Electromagnetic locking / Mechanical unlocking
Retaining Force When Locked： 500N
Power Supply Voltage： 24V DC
Response Time： 30ms
Power Consumption： 3.2W
Packging & Delivery
Min Order1 piece
Briefing
The Electromagnetic Safety Switch is a high-reliability safety interlock device designed for industrial doors, protective guards, and automated equipment. Featuring strong electromagnetic locking technology, it ensures stable and secure door monitoring to prevent unauthorized or accidental access during machine operation.
With its compact planar design, high-brightness LED status indicators, and dual-channel safety outputs, the switch provides excellent visibility, flexible installation, and enhanced operational safety. It supports both PNP and NPN outputs, as well as general and unique coding options, making it suitable for a wide range of industrial automation and machine safety applications.
Engineered for durability and precision, the switch can tolerate installation deviations and effectively prevents doors from remaining half-open, ensuring reliable protection and compliance with modern machine safety requirements.
With its compact planar design, high-brightness LED status indicators, and dual-channel safety outputs, the switch provides excellent visibility, flexible installation, and enhanced operational safety. It supports both PNP and NPN outputs, as well as general and unique coding options, making it suitable for a wide range of industrial automation and machine safety applications.
Engineered for durability and precision, the switch can tolerate installation deviations and effectively prevents doors from remaining half-open, ensuring reliable protection and compliance with modern machine safety requirements.
Detailed
TECHNICAL DATA
Model | Description |
|
|
OX-D51-S-SP
|
RFID magnetic security door lock kit, flat mounting, 2xPNP security outputs, universal coding sensor
|
|
OX-D51-S-SN | RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, universal coding sensor | |
OX-D51-D-SP | RFID magnetic security door lock body, flat mounting, 2xPNP security outputs, independent coding sensor | |
OX-D51-D-SN | RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, independent coding sensor | |
|
Standard Parameters
|
||
|
Retaining force when locked
|
500N |
|
|
Retaining force when unlocked
|
<20N |
|
|
Working Distance
|
||
|
Sa0 (OFF->ON)
|
0.1mm |
|
|
Sar (ON->OFF)
|
15mm |
|
|
Response Time (ms)
|
||
|
Lock Unlock -- Lock
|
30 ms |
|
|
Lock -- Lock Unlock
|
<300 ms |
|
|
Control Output (OSSD Output)
|
||
|
Output method
|
Transistor output x 2 |
|
|
Maximum load current
|
200mA |
|
|
AUX Output (Non-Safety Output)
|
||
|
Output method
|
Transistor output |
|
|
Maximum load current
|
50mA |
|
|
External Input
|
||
|
Security Input
|
Approximately 2mA x 2 |
|
|
Lock Control Input
|
Approximately 2mA |
|
AUX Input | Approximately 2mA | |
|
Power supply
|
||
|
Power supply voltage
|
24V DC |
|
|
Voltage tolerance
|
+15%/-20% |
|
Power consumption | 3.2W | |
Protection circuit | Power reverse connection protection, output short circuit protection, output surge protection, output reverse connection protection | |
|
Environmental resistance
|
||
|
Operating ambient temperature
|
-20 to 55°C (non-freezing) |
|
|
Storage ambient temperature
|
-25 to 70°C (non-freezing) |
|
Operating ambient humidity | 5% to 95%RH | |
Storage ambient humidity | 5% to 95%RH | |
Vibration resistance | 10 to 55Hz, dual amplitude 2.0mm, 5 minutes in each of the X, Y, and Z directions (IEC60947-5-3) | |
Shock resistance | 30G, 6 times in each of the X, Y, and Z directions | |
|
Material
|
||
|
Sensor body
|
PBT, PET/PAR, TPC, PC, plated steel |
|
|
Induction element
|
PBT, SUS304, nickel-plated steel |
|
Mounting bracket | Aluminum, coated steel (screws: steel) | |
|
Weight
|
||
|
Sensor body
|
240g |
|
|
Induction element
|
130g |
|
Safety switch lock body dimension drawing
System module diagram
