Automatic 75CNC Tube Benders, Tubing Bending Machines

group nameCNC Tube Benders
Min Order1 set
brand nameBossray CNC Tube bender and Lasertube Manufacturer
modelSB-75CNC
payment methodT/T
update timeTue, 28 May 2024 02:51:42 GMT

contact supplier

Paramtents

Bending capability OD×WT Φ76.2×3.0 mm
Bending speed Max. 120°/sec
Feeding speed 1000 mm/sec
Feeding accuracy ±0.1 mm
Rotating speed 180°/sec
Rotating accuracy ±0.1°
Voltage 220V, 380V, 415V, 440V, 480V, 600V 3P
Mandrel bending Ball Mandrel
Wiper die Brass Wiper

Packging & Delivery

Size490cm x 105cm x 135cm
Weight3000.00kg / set
Min Order1 set

Briefing

CNC Mandrel Tube Benders adopts IPC system and professional software of Benders, 76mm OD.

Detailed

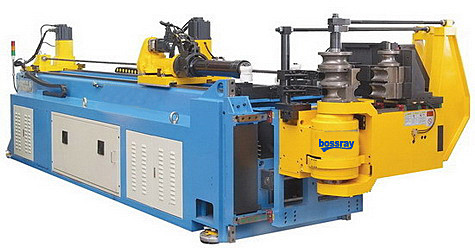

Automatic 75CNC Tube Benders

Bossray 75CNC Tube Benders is the advanced Pipe Benders with multi-axis servo motor controlling and multi-layers mould function. The machine applys professional skills of industrial computer and CNC Pipe Benders into multi-axis servo motor and hydraulic servo driving. It can work automatically like feeding,rotating,changing moulds, reading drawings, editing and revising technical documents and correcting datas. What's more, working with robots, it also can loading and unloading automatically, testing pipes and revise technical datas and production procedures according to the test result. It can diagnose fault automatically, 3D pipe display and simulation,3D interference detection etc. It is the first choice for the field of aerospace,nuclear power, automobile, motorcycle, shipbuilding, petrochemical,electricity, gas, boilers, fitness and sports equipment to bending pipes.

1-9 stacks tooling are optional.

75CNC Tube Benders Parameter

Model		SB-75CNC
Bending capability OD×WT (carbon steel):		Φ76.2×3.0 mm
Bending radius:		280mm
Bending angle		0～180°
Max bending length with mandrel:		3200mm
Bending speed:		Max. 120°/sec
Bending accuracy:		±0.1°
Feeding speed:		1000 mm/sec
Feeding accuracy:		±0.1 mm
Rotating speed:		200°/sec
Rotating accuracy:		±0.1°
Tools stack:		1 or multiple
Bending:		Electric Servomotor or Hydraulic
Feeding/Booster:		Electric Servomotor
Rotating:		Electric Servomotor
Work head shift (horizontal):		Electric Servomotor option
Work head shift (vertical):		Hydraulic /Electric Servomotor option
System hydraulic pressure:		14 MPa
Packing size refer:		4900×1050×1350mm
Weight refer:		3000kgs

Video

Automatic 75CNC Tube Benders Video

Providing the automatic functions of feeding, rotating, die exchanging, drawings reading, editing, file modifying,rebound data adjusting, automatic faults diagnosing and 3D display.

75CNC Mandrel Tube Benders Features and Advantages

1Bend-arm (C-axis) by Servomotor / Hydraulic
2Clamp die by hydraulic or servomotor; pressure die by hydraulic or servomotor.
3Carriage (Y-axis) by servomotor.
4With rear booster is driven by a servo motor.
5Collets (B-axis): rotation by servo motor, grip by hydraulic or servomotor.
6 With the roll bending function, can make a big radius by rolling.
7Tooling shift: motion up-down by hydraulic or servomotor with brake; left-right by servomotor.
8PDA (pressure die assist): by hydraulic or servomotor.
9Automatic moving parts lubrication systems.
10Standing pedestal, serves emergency stop, double-hand startup, and remote control.
11Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control, 3D bending simulation, and collision prevention.
