Motorized Pallet Flat Decoiler for Thin Steel Coil High Speed Pressing Line
group nameFlat Decoiler
-
Min Order1 piece
brand nameFANTY - Stamping Automation Equipment Manufacturer
modelFU Series
payment methodT/T
-
update timeThu, 10 Sep 2026 17:25:39 GMT
Paramtents
Catagory Decoiler Machine
Brand FANTY
Model FU series
Machine Color Standard white (other colors are available)
FOB Port Shenzhen
Application Electrical metal parts/Button/Eyelet stamping
Packging & Delivery
Min Order1 piece
Briefing
Detailed

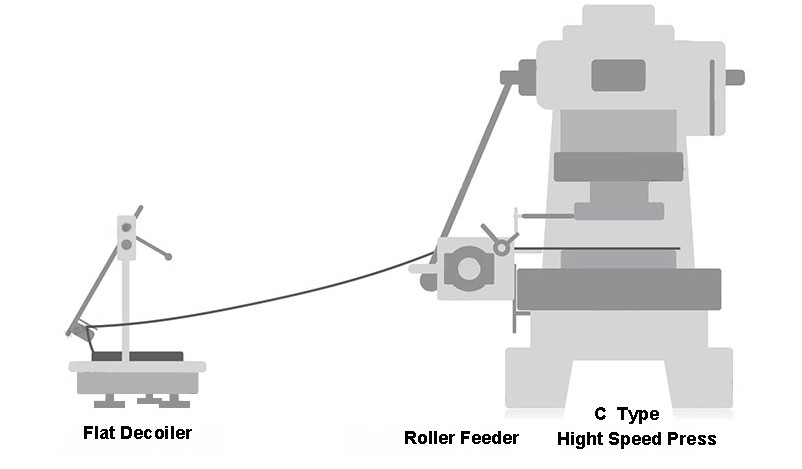

FANTY · FU Series · Motorized Pallet Decoiler This motorized pallet flat decoiler — also called a horizontal decoiler or pallet decoiler — is built for coil-fed stamping of thin strip. The steel coil lies flat on a pallet-style cradle and is paid out by a powered roller drive, which suits light materials that are difficult to thread through a conventional vertical mandrel. It carries up to 1,500 kg of coil and feeds strip steadily at 24 m/min, making it a practical first station for high-speed press lines running electrical parts, terminals, buttons and eyelets. Send your coil width, coil outside diameter, material and press data to us, and our engineers will confirm which FU model fits your line before you order. Application The FU pallet decoiler feeds thin coil into high-speed presses that blank and form small metal parts in volume. Spring clips and small fasteners blanked from narrow strip. Terminals, tags and connectors for wiring and switching components. Round blanks and button shells formed in progressive dies. Small ring components that need clean, repeatable blanking. Why it works FU-2000 handles coils up to 1,500 kg, so the line runs longer between coil changes. Powered drive feeds strip at a consistent speed to match high-speed press cycles. Designed for light-gauge coil that is hard to handle on heavy-duty mandrel decoilers. Variable speed control gives smooth start, stop and speed matching on the line. Coil is placed flat in the cradle, so loading is simple and strip pulls off without twisting. Works with steel, aluminum and copper coil across the FU model range. Specifications Models are sized by coil weight and outside diameter; strip width, thickness and motor power are configured to your material. Tell us your coil details for a model recommendation. Built by FANTY The FU series is produced in the FANTY workshop alongside our full range of decoilers, straighteners and press feeders. Every unit goes through the same controlled build sequence before it is released for shipment. Welded steel cradle and side frames are machined to size. Motor, Mitsubishi inverter and roller drive are fitted and wired. Each unit is run with sample coil to check payout speed and stability. Machines are protected in wooden crates for overseas shipping. Stamping Solution Multiple units in production at the factory. Machines crated for export delivery. FAQ A pallet (or horizontal) decoiler holds the coil lying flat instead of on a vertical mandrel. Strip is pulled off the top of the coil by a powered roller drive. This layout suits thin, narrow coil that is hard to thread and keep stable on a conventional vertical decoiler. Across the FU-500, FU-1000 and FU-2000 models: strip width up to 150 mm, coil thickness 0.1–1.0 mm, loading weight from 500 to 1,500 kg, loading height up to 600 mm and coil outside diameter up to 1,200 mm. Check your coil outside diameter and weight against the table above to pick the model. Yes. The machine is designed around 0.1–1.0 mm material. The motorized drive with Mitsubishi inverter keeps payout smooth, and flat coil orientation avoids the strip twist that thin material can suffer on vertical mandrel machines. The coil is placed flat into the cradle opening with a crane or hoist. The flat design means the coil does not have to be lifted onto a high vertical mandrel, which makes coil handling simpler for lighter operations. In most cases yes. FANTY supplies complete coil-fed lines, so we can pair this decoiler with a straightener and servo feeder matched to your press. Send your press model, material width and part pitch for an integration recommendation. Send us your coil width, outside diameter, material and press details. Our engineers will confirm the model, configuration and integration for your shop.Motorized Pallet Flat Decoiler for High-Speed Thin-Coil Press Lines
At a glance
Built for Electrical and Light-Metal Stamping
Clips and fasteners
Electrical terminals
Metal buttons
Eyelets and grommets
Key Features of the FU Pallet Decoiler
1,500 kg coil capacity
24 m/min steady payout
Thin strip, 0.1–1.0 mm
Mitsubishi inverter drive
Flat pallet loading
Multi-material support
FU Series Technical Specifications
Parameter FU-500 FU-1000 FU-2000 Max strip width (mm) 150 150 150 Coil thickness (mm) 0.1–1.0 0.1–1.0 0.1–1.0 Loading weight (kg) 500 800 1,500 Max loading height (mm) 600 600 600 Max coil outside diameter (mm) 800 1,000 1,200 Feeding speed 24 m/min 24 m/min 24 m/min Motor 0.5 HP 1.0 HP 2.0 HP Inverter Mitsubishi Mitsubishi Mitsubishi
Assembled, Test-Run and Packed in Our Factory
Frame fabrication
Drive assembly
Run-in test
Export packing
Pallet Decoiler Questions, Answered
What is a pallet flat decoiler?
Which coil sizes fit the FU series?
Can it feed very thin strip without jamming?
How is the coil loaded?
Can it feed my existing press line?
Ready to match an FU pallet decoiler to your press line?
