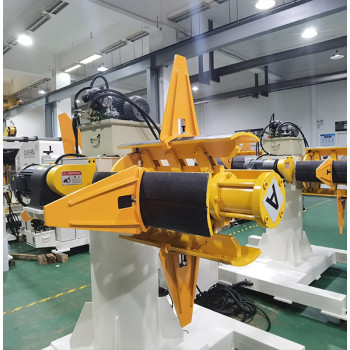

Double Head Decoiler Machine for Unwinding 500MM Width Coil
group nameDouble Head Decoiler
-
Min Order1 piece
brand nameFANTY - Stamping Automation Equipment Manufacturer
modelDBMT Series Hydraulic Expansion Double Head Uncoiler Machine
payment methodT/T
-
update timeWed, 09 Sep 2026 01:50:23 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Certificate ISO, CE
Customized Service Yes
Packging & Delivery
Min Order1 piece
Briefing
Detailed
FANTY · DBMT Series · Double Head Decoiler A Double Head Decoiler is also called as a Double Head Uncoiler. It is an advanced type of decoiler machines — widths of 500 mm, material from 0.35 mm – 1.6 mm, coil OD to Ø1200mm. Send us your coil size, material and press data, and our engineers will confirm the right double-head decoiler configuration for your line before you order. Application Typical parts and production lines that this double-head decoiler feeds or supports. Body panels, brackets and chassis parts from steel coil. Motor laminations, switch housings and terminal strips. Washing-machine drums, refrigerator shelves and oven frames. Fasteners, brackets and structural fittings from coil steel. Why it works Strip and coil widths to 500 mm are supported across the model range. Handles material from 0.35 mm – 1.6 mm, so one machine covers your light and heavy gauges. Accepts coil outside diameters up to Ø1200mm without extra handling. Coils up to 1500 kg per side can be loaded, so the line runs longer between changes. Coils are unwound smoothly with controlled tension, protecting surface finish and keeping line speed stable. Grips the coil inner diameter securely for safe handling during loading and unwinding. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. DBMT Series assembly at the FANTY factory workshop. Built by FANTY The DBMT Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Place the coil onto the mandrel using a coil car or crane. Pneumatic or hydraulic expansion grips the coil ID firmly. Set back tension to match line speed and coil weight. Strip is pulled smoothly into the downstream machine. On the assembly floor before test. Units in production at the factory. Machines prepared for delivery. FAQ Models range from 200 mm to 1,500 mm coil widths and from 500 kg to 20 tons coil weight. Tell us your coil data and we recommend the right model. Yes. Control voltage, motor voltage and plug type are configured to your local standard before shipping. Standard models ship in 15–25 working days. Custom configurations may need 30–40 days. We confirm the schedule when you place the order. We recommend keeping mandrel segments, brake pads and proximity sensors. A starter spare-parts list is included with every machine. One year from the bill of lading date. Technical support and replacement parts are available for the lifetime of the machine. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.Double Head Decoiler Machine for Unwinding 500MM Width Coil
At a glance
Where This Double-Head Decoiler Works
Automotive stamping
Electrical components
Appliance metal parts
Construction hardware
Key Features of the DBMT Series
Widths up to 500 mm
Coil thickness 0.35 mm – 1.6 mm
Coil OD up to Ø1200mm
1500 kg per side coil capacity
Motorized or hydraulic drive
Expandable mandrel system
DBMT Series Technical Specifications
Model DBMT-500 Coil Width 500 mm Coil Thickness 0.35 mm – 1.6 mm Coil I.D. Ø450–530mm Coil O.D. Ø1200mm Coil Loading Weight 1500 kg per side Mandrel Expansion Hydraulic Expansion
Assembled, Test-Run and Packed in Our Factory
Load coil
Expand mandrel
Adjust brake
Feed strip
Double-Head Decoiler Questions, Answered
What coil sizes can these decoilers handle?
Do you provide voltage and plug customization?
How long is production and delivery?
What spare parts should I keep in stock?
What is the warranty period?
Ready to put the DBMT Series to work on your line?
