Ultra-Slim Frame & Sash Design

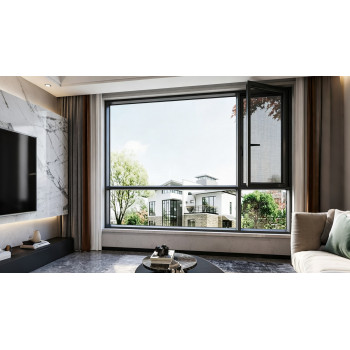

BC-110 Thermal Break Aluminum Casement Window with Integrated Screen
group nameAluminum Casement Windows
-
Min Order30 set
brand nameBLOSSOM CHEER Door And Window Project Manufacturer
modelBC-110
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 23 Sep 2026 23:31:05 GMT
Paramtents
Model BC-110
Product Type Thermal Break Aluminum Casement Window
Frame Depth 110–115 mm
Project Service ODM / Custom Project Support
Sample Available
Production Time 15-25 Days
Packging & Delivery
Size215cm x100cm x10cm
Weight40kg / set
Min Order30 set
Briefing
BC-110 thermal break aluminum casement window with integrated screen, flexible glazing and hardware for project requirements.
Detailed
Architectural Integrated Screen Stronger Protection The following performance metrics are verified against GB/T 8478, ASTM, and EN standards, covering structural mechanics, air/water impermeability, and thermal/acoustic performance.
BC-110
Thermal Break Casement Window System
A Clearer View
Large Tilt-In Opening + Glass Guardrail
Pinned, Glue-Injected Corner Cleat Interlocking Profile Section
BC-110 Architectural Window Performance Specifications
Performance Metric
Performance Value
Reference Standards
Frame Depth
110 mm (50 mm main frame / 110–115 mm overall wall coverage)
GB/T 8478-2020 / AAMA 101
Alloy & Wall Thickness
6063A-T5 / 1.4 mm standard; optional 2.0 mm heavy-duty project configuration
ASTM B221 / EN 755-2
Thermal Break Barrier
20 mm Rongtai PA66GF25 nylon thermal break strip (vertical isotherm design)
GB/T 23615.1 / EN 14024
Glazing Pocket Width
33 mm standard glazing pocket system (supports 27–33 mm glass thickness)
International-Standard Engineering Glazing Pocket
Air Permeability
Class 7–8 (q1 ≤ 0.5 m³/(m·h) / q2 ≤ 1.5 m³/(m²·h))
GB/T 7106 / ASTM E283 Class 4
Water Penetration Resistance
Class 4–7 (500 Pa ≤ ΔP ≤ 700 Pa+; no leakage or backflow)
GB/T 7106 / ASTM E331
Wind Load Resistance
Class 4–8 (2500 Pa ≤ P3 ≤ 5000 Pa; resists up to Force 12 typhoon winds)
GB/T 7106 / ASTM E330
Acoustic Sound Insulation
Class 3–5 (25 dB ≤ Rm + Ctr < 30 dB; upgraded configuration reaches 35 dB)
GB/T 8485 / ASTM E90
Thermal U-Factor / K-Value
Class 6–8 (K ≤ 1.0–2.5 W/(m²·K), depending on glazing configuration)
GB/T 8484 / NFRC 100 / EN ISO 10077
Sealing Gasket System
Jiangyin Haida automotive-grade EPDM gaskets with three continuous sealing layers
ISO 3934 / ASTM C864
Security Mesh Spec
#304 stainless-steel security mesh, 0.8 mm wire diameter, 18 mesh, with high visibility and ventilation
ASTM A555 / 304 Stainless Steel
Heavy-Duty Multi-Point Transmission & Safety Locking Hardware
Fitted with architectural-grade transmission hardware, featuring cast carbon steel gears with Nano-Blue anti-corrosion coating tested for over 100,000 cycles. Rated for 60kg sash loads and verified through 120-hour salt spray testing, maintaining position stability against wind gusts without sagging. Equipped with high-tensile stainless anti-drop tethers and R10 soft corner bumpers to eliminate glass falling risks and collision hazards. Standard HOPPO / CMECH baseless handles with 10mm heavy-duty spindles and tactile 30-degree mechanical feedback in Grey and Coffee. Distributes anti-pry locking cams around the perimeter, compressing gaskets securely to maximize airtightness and forced-entry security. Coated via automated vertical lines to pass 1000-hour salt spray tests, guaranteeing color retention and film adhesion under intense UV and coastal conditions.
BC-110 is a flush thermal-break aluminum window platform engineered for residential towers, villas, hotels, and
commercial façades. Its 110 mm frame combines a 20 mm PA66GF25 thermal barrier, 27–33 mm glazing capacity, integrated
304 stainless-steel security mesh, and multi-point locking for dependable thermal, weather, acoustic, and security performance.
A high-weatherability aluminum window system combining flush architectural sightlines, insulated glazing,
integrated security screening, and heavy-duty multi-point hardware for project-specific window-wall configurations.
This gallery presents BC-110 residential installations, symmetrical window-wall elevations, screened casement
configurations, and the thermal-break profile assembly. Available layouts combine fixed glazing with single or
double operable vents for villas, apartments, hotels, and commercial façade projects.
304 Stainless Heavy-Duty Friction Stays
Stainless Safety Retaining Tethers & Bumpers
High-Aesthetic Baseless Minimalist Handles
Multi-Point Anti-Pry Perimeter Locking
Flush Thermal Break Aluminum Window Architectural High-Weatherability Surface Finishes & Color Palette
In Stock
Sand Grain Grey
In Stock
Flash Silver Black / Dark Basalt
In Stock
Metallic Grey
In Stock
Metallic Coffee
Custom Interior Dual-Color Finishes
BC-110 Architectural Integrated Screen Thermal-Break Casement Window System
BC-110 Product Configuration
BC-110 Architectural Integrated Screen Thermal-Break Casement Window System
Architectural Application Reference
B2B Engineering Submittal & Technical Specification Download Hub
Review Focus
Project Media Gallery
Click Detail to return to the material image; scroll when more media is available.
