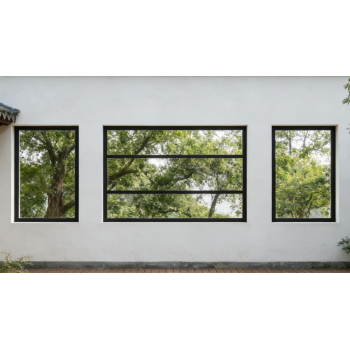

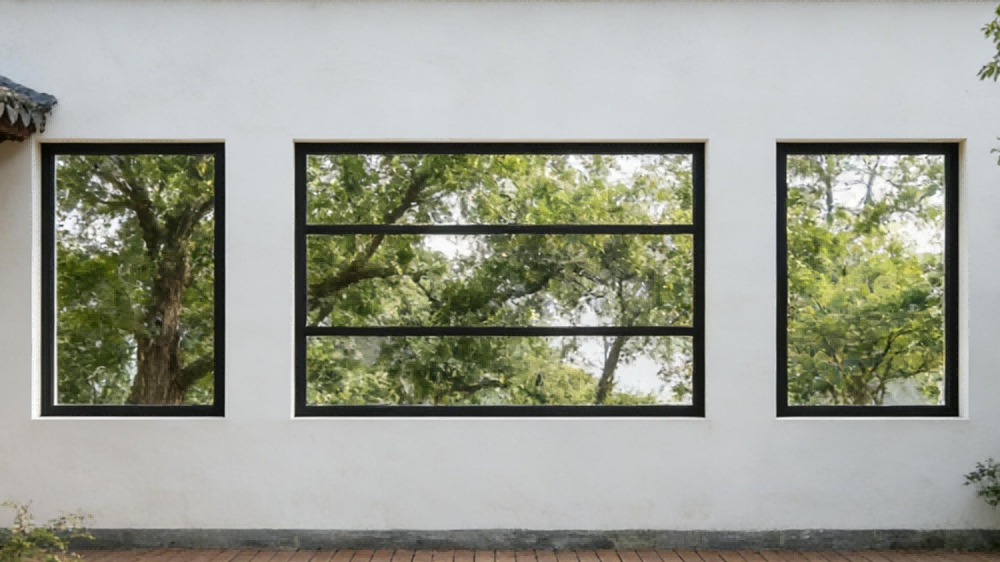

BC-130 Heavy-Duty Hurricane-Resistant Aluminum Casement Window with Integrated Screen

Model BC-110
Product Type Thermal Break Aluminum Casement Window
Frame Depth 110–115 mm
Project Service ODM / Custom Project Support
Sample Available
Production Time 15-25 Days

Size215cm x100cm x10cm
Weight40kg / set
Min Order30 set

BC-130 is a heavy-duty aluminum casement window with integrated screen, developed for high-wind coastal and high-rise projects. It combines a 130 mm frame depth, 3.0 mm profile walls and reinforced structural design for superior wind-load resistance and façade stability.

BC-130

Heavy-Duty Hurricane-Armor Integrated Screen
Casement Window System

Extreme Wind-Load Protection
Engineered for Coastal Landmark Facades

5.0kPa+ Wind
Resistance

3.0mm Profile
Walls

130mm Frame
Depth

#304 Security
Screen

130mm Frame Depth & 3.0mm 6063A-T5 Ultra-Heavy Profile Walls

BC-130 modular reinforced mullion and interlocking glazing bead structure

Modular Hurricane-Reinforced Mullion & Interlocking Glazing Bead

BC-130 5G plus 27A plus 5G insulated glass and security screen assembly

5G + 27A + 5G Insulated Glazing & #304 Integrated Security Screen

BC-130 Core Physical & Structural Specification Matrix

The following engineering metrics are verified against GB/T 7106, GB/T 8484, ASTM, and AAMA standards, confirming the BC-130's structural resistance under extreme wind and storm conditions.

Engineering Metric	Performance Value	Reference Standards
Frame Depth	130 mm structural depth, with a 46 mm exterior face and 26 mm interior face	GB/T 8478-2020 / AAMA 101
Sash Profile Dimensions	77.9 mm sash width / 78.05 mm sash depth, engineered for heavy-duty load transfer	Industrial heavy-load profile standard
Alloy & Wall Thickness	6063A-T5 ultra-high-precision aluminum with 3.0 mm main load-bearing profile walls throughout	ASTM B221 / EN 755-2
Thermal Break Barrier	Rongtai glass-fiber-reinforced PA66GF25 nylon thermal-break strips with vertical-isotherm design	GB/T 23615.1 / EN 14024
Wind Load Resistance	Class 9 (P₃ ≥ 5.0 kPa), engineered for direct super-typhoon exposure	GB/T 7106 / ASTM E330
Water Penetration Resistance	Class 4 (350 Pa ≤ ΔP < 500 Pa) without leakage or stormwater backflow	GB/T 7106 / ASTM E331
Air Permeability	Class 7 (q₁ ≤ 0.5 m³/(m·h) / q₂ ≤ 1.5 m³/(m²·h))	GB/T 7106 / ASTM E283 Class 4
Acoustic Sound Insulation	25–30 dB with standard insulated glazing; laminated high-performance configurations can reach 35 dB+	GB/T 8485 / ASTM E90
Standard Glazing Unit	Taiwan Glass float panes: 5G + 27A + 5G insulated glass with reinforced one-piece bent spacer	Automotive-grade raw-glass processing standard
Glazing Bead Options	Beveled or square insulated-glass beads for 5–15 mm glass, plus laminated-glass beads for 8–15 mm glass	Multi-specification engineering bead system
Security Screen Specification	#04 high-airflow #304 stainless-steel 18-mesh security screen with anti-drop tether and impact-safe corner guards	ASTM A555 / 304 Stainless Steel
Gasket & Sealing System	Jiangyin Haida automotive-grade EPDM gaskets with interior and exterior sealant-free glazing assembly	ISO 3934 / ASTM C864

Heavy-Duty Transmission Hardware & High-Security Locking Systems

Integrating CMECH heavy-duty transmission hardware with precision-cast carbon-steel gearboxes and Nano-Blue anti-corrosion coatings for high torsional strength, reliable compression sealing, and long coastal service life.

BC-130 heavy-duty casement window transmission and locking system

CMECH heavy-duty architectural casement window handle

BC-130 Architectural High-Weatherability Surface Finishes & Color Palette

BC-130 profiles are finished on automated vertical powder-coating and fluorocarbon baking lines, passing 1000-hour neutral salt-spray testing for durable adhesion, corrosion resistance, and color retention under intense UV and marine exposure.

Fluorocarbon Grey architectural aluminum window finish

In Stock Fluorocarbon Grey

Flash Silver Black or Dark Basalt architectural aluminum window finish

In Stock Dark Basalt

Dark Coffee architectural aluminum window finish

In Stock Dark Coffee

Cedar Woodgrain Dual-Color

Custom interior woodgrain dual-color aluminum window finish

Amber / Soft-Touch Dual-Color

Micro-Structure Driven Scenario Configuration & Engineering Matrix

Deriving from 3.0mm ultra-heavy profile walls, modular hurricane-reinforced mullions, interlocking glazing beads, and 27A insulated-glass pockets, BC-130 provides EPC contractors and architects with extreme-condition specifications for coastal towers, large-span balcony enclosures, and island resorts.

BC-130 Extreme-Condition Project Configurations

BC-130 project-specific hurricane-armor casement window configuration

Coastal Typhoon, Large-Span Balcony & Island Resort Configurations

Configure reinforced mullions, glazing make-up, CMECH hardware, drainage, and integrated security screening around project span, glass weight, coastal exposure, and design wind pressure.

Verified Project & Laboratory Evidence

BC-130 hurricane-armor casement window engineering application reference

BC-130 Verified Project & Laboratory Evidence Center

View Evidence Center

B2B Engineering Submittal & Technical Specification Download Hub

Access BC-130 engineering specifications, AutoCAD installation details, reinforced-mullion and interlocking-bead nodes, certified laboratory reports, and 24-hour 5000Pa+ structural load-review support for global developers, EPC contractors, importers, and lead architects.
