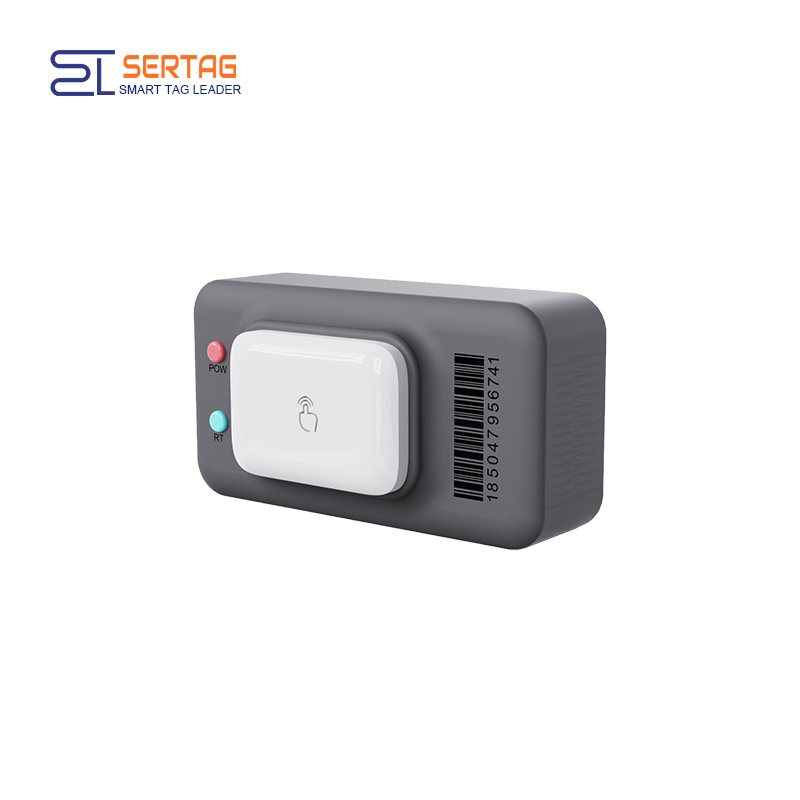

868MHz Wireless Pick-to-Light Label with Illuminated Button and Dual LED Indicators
group namePick to Light Electronic Label
-
Min Order1 piece
brand nameSertag Pick to Light System Manufacturer
modelPTL Label SETP_Label_V41
payment methodT/T
-
update timeTue, 16 Jun 2026 01:08:00 GMT
Paramtents
Product Model SETP_Label_V41
Dimension (mm) 60*34*23.1
Illuminated Button 1 color light button
Indicator Light Two LED indicator lights
Power Supply Mode DC 24V
Working Temperature -30~80 ℃
Packging & Delivery
Min Order1 piece
Briefing
Compact 868MHz wireless pick to light label with illuminated button, dual LED indicators, and DC24V power supply.
Detailed
868MHz Wireless Pick to Light Label with Illuminated Button and LED Indicators Description
868MHz Wireless Pick to Light Label, No Screen
The SETP_Label_V41 is a compact wireless pick to light indicator designed to improve efficiency and accuracy in warehouse picking, sorting, assembly, and material handling operations. Operating on the 868MHz frequency band, it provides stable wireless communication while reducing installation complexity compared to traditional wired systems.
Unlike conventional pick to light labels with display screens, the SETP_Label_V41 utilizes an illuminated confirmation button and dual LED status indicators to provide clear visual guidance for operators. The illuminated button helps workers quickly identify target locations and confirm completed tasks, while the LED indicators display power and operating status in real time.
Powered by an external DC24V supply, the device is designed for continuous industrial operation. Its compact dimension make it easy to install on warehouse racks, assembly workstations, production lines, and distribution shelves where space is limited. What's more, with a wide operating temperature range of -30°C to 80°C, the SETP_Label_V41 delivers reliable performance in demanding warehouse, manufacturing, and cold-storage environments.
Why Choose This No Screen Wireless Pick to Light Label?
● 868MHz Wireless Communication
Utilizes the 868MHz wireless frequency band to provide reliable communication between the pick-to-light controller and field devices, enabling flexible system deployment.
● Illuminated Confirmation Button
The integrated light-up button clearly identifies the target picking location and allows operators to confirm completed tasks with a simple press.
● Dual LED Status Indicators
Two dedicated LED indicators provide instant visual feedback:
1. Power Indicator LED
2. System Status Indicator LED
● Wide Operating Temperature Range
Supports operation from -30°C to 80°C, making it suitable for both standard industrial facilities and low-temperature storage areas.
● DC24V External Power Supply
Powered by an external DC24V source, ensuring stable long-term operation without battery replacement requirements.
How the Pick to Light System Works ?
Initial: Set the server and label parameters
------------------------------------------------------------
Step 1: Send the information to the put to light label server
Step 2: The server parses the command requirements and wirelessly lights up the tower lights and put to light label.
Step 3: Pick items according to the illuminated label and press the confirmation button to turn off the light, and the screen content is updated with the result after the operation.
This allows it to receive button feedback from the Pick to Light electronic labels while sending data to them.
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
No Screen Wireless Pick to Light Label Installation Method
Bracket Clamp and Cable Tie Installation
The device can be mounted using a bracket and cable ties.
Fix the bracket to warehouse shelves using screws or cable ties.
Secure the device to steel pipes or rack structures using cable ties.
Suitable for retrofitting existing warehouse infrastructure.
Rail Mounting
The SETP_Label_V41 supports rail-based installation.
Quick deployment on standard mounting rails.
Easy repositioning and replacement.
Ideal for modular warehouse shelving and production line systems.
Pick to Light Label Application
✔ Warehouse Order Picking
✔ E-commerce Fulfillment Centers
✔ Manufacturing Assembly Lines
✔ Material Distribution Systems
✔ Kitting Operations
✔ Logistics Sorting Stations
✔ Inventory Replenishment Systems
