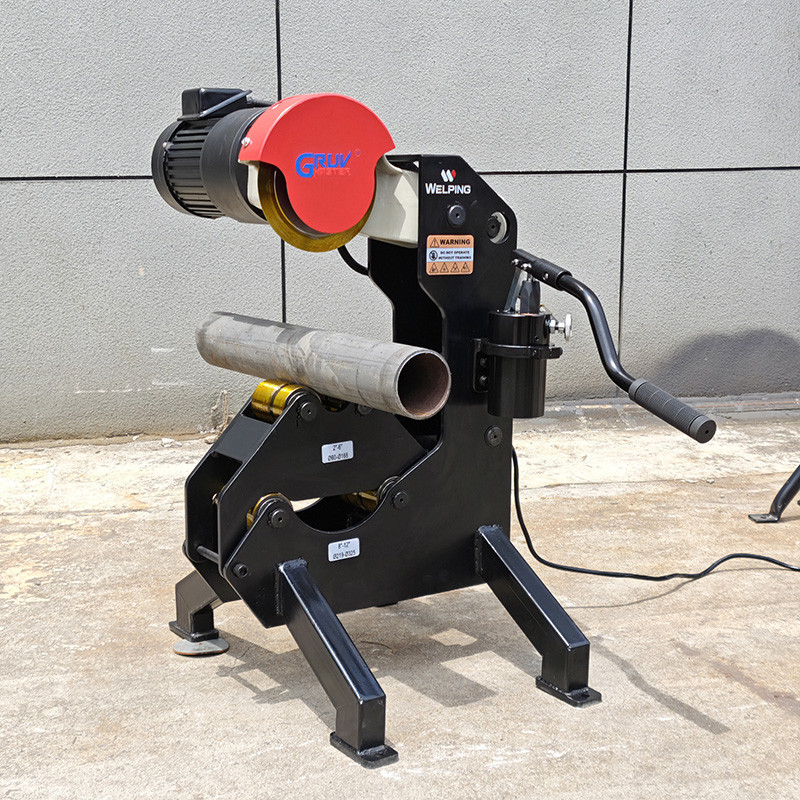

CM-12 Electric Hydraulic Pipe Cutting Machine for 2"-12" Steel Pipes
group name2"-12" Pipe Cutting Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelCM-12
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeSat, 06 Dec 2025 06:48:07 GMT
Paramtents
Grooving Capacity 2-12inch
Power Supply 1100W
Output Speed 23RPM
Max Wall Thickness: 10mm
Gross Weight 125kgs
Available Material Carbon Steel Pipes, Stainless Steel Pipes, PE Pipe
HS Code 8461500090
Packging & Delivery
Min Order1 piece
Briefing
A precise cutting machine without generating sparks for special applications.
Detailed
Hydraulic Pipe Cutter Machine Video
Features of Electric Hydraulic Pipe Cutting Machine
● The Model CM-12 Electric Hydraulic Pipe Cutting Machine is designed to cut steel pipes and stainless steel of 2"-12" (DN50~DN300) SCH10/40.
● It can cut a wide range of pipes, including steel pipes, stainless steel pipes, and PE pipes, making it suitable for diverse industrial applications.
● Electric hydraulic systems provide high accuracy in cutting, ensuring clean and precise cuts every time. This is crucial for industries where accuracy is paramount.
● Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
● The electric pipe cutting machine operates through a cold cutting process, ensuring that no sparks are generated during the cutting of steel pipes. This characteristic is particularly advantageous in environments where the presence of sparks could pose safety hazards, such as in oil and gas facilities or areas with flammable materials.
● Cold cutting not only eliminates the risk of fire but also helps maintain the integrity of the material being cut by avoiding heat-affected zones and preserving the structural properties of the steel. As a result, electric pipe cutting machines provide a safe and efficient solution for industries requiring precise and spark-free cutting of steel pipes.
Pipe Cutting Machine Parameter
Model: | CM-12 |
Suitable materials: | Carbon Steel Pipes, SS Pipe, PE Pipes |
Fabrication Capacity: | 2"-12" Pipe SCH10/40 |
Power supply: | 220V/110V |
Frequency: | 50/60HZ |
Max wall thickness: | 10mm |
Motor power: | 1100W |
Output speed: | 23RPM |
Packing gross weight: | 125kgs |
Packing size: | 75*59*100cm |
Ordering Information
Item Number | Phase | Power | ||||
900080 | Single | 1100W, 220V, 50/60HZ | ||||
900081 | Single | 1100W, 110V, 50/60HZ | ||||
Standard Parts of CM-12 Pipe Cutter
Item Number | Description | Net weight | ||||
998041 | Pipe stand for 2"-12" Pipes | 4.00kg | ||||
912019 | Cutting Blade (standard) | 1.25kg | ||||
912058 | Cutting Blade (heavy-duty) | 1.3kg | ||||
Optional Parts of CM-12 Pipe Cutter
Item Number | Description | Net weight | ||||
912019 | Stainless steel cutting blade | 1.25kg | ||||
Resources of CM-12 Pipe Cutter machine
Pipe Cutting Machine Configuration
Wide Applications
It can cut a wide range of pipes, including steel pipes, stainless steel pipes, and PE pipes, making it suitable for diverse industrial applications.
Blade cover
The blade cover enhances the safety of the machine
Roller Support for 2"-12" Pipe
Suitable for supporting pipe diameters above 2 inches. The combination of the two types of rollers makes the pipe cutting machine more diversified, enabling processing from small to large sizes.
Pipe Stand
Stability and Safety. By securely holding the pipes in place, the pipe supports prevent damage due to external forces such as vibration
Cutting Blade
Available in sizes:1/2"-20"
For Steel pipe 1/2"-20" SCH10/40
High strength steel, hardened to withstand long-time usage
Stainless Steel Cutting Blade (For Option)
Manufactured from high-quality stainless steel alloys, providing excellent strength and toughness. This enables them to cut through tough materials with ease, including stainless steel pipes
