Hydraulic Steel Pipe Roll Grooving Machine for 1 Inch to 8 Inch Steel Pipes (RG-1X)
group nameHydraulic Roll Grooving
-
Min Order1 piece
brand nameGruvmaster & Welping
modelRG-1X
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 20:59:57 GMT
Paramtents
Fabrication Capacity 1"-8" (DN25-DN200, Φ33~Φ219) SCH10/40 Steel Pipe
Max Wall Thickness 8mm
Output Speed 23RPM
Power Supply 800W
Packing Size 72*42*80cm
Gross Weight 98KG
Packging & Delivery
Size72cm x42cm x80cm
Weight98kg / piece
Min Order1 piece
Briefing
Hydraulic Steel Pipe roll grooving machine for 1 inch - 8 inch steel pipe for piping systems & fire protection
Detailed
Pipe Roll Grooving Machine Features
Features of Electric Hydraulic Roll Groover Machine
● The RG-1X Roll Grooving Machine is engineeredfor grooving steel and stainless steel pipes ranging from 1" to 8" (DN25–DN200), suitable for SCH10 to SCH40.
● Highly versatile, the RG-1X is ideal for both high-volume workshop use and flexible on-site applications. It features an integrated design with motor, hydraulic feeding pump, foot switch, and pipe stand for efficient and reliable grooving.
● The built-in high-performance gear reduction motor, combined with an integrated hydraulic feeding pump and groove depth lock nut, ensures a compact design, low noise operation, and consistent, high-quality grooving with excellent efficiency.
Pipe Roll Grooving Machine Parameter
Model: | RG-1X |
Suitable materials: | Carbon Steel, SS Pipe |
Fabrication Capacity: | 1"-8" Pipe SCH10/SCH40 |
Power supply: | 220V / 110V |
Frequency: | 50HZ / 60HZ |
Max wall thickness: | 8mm |
Motor power: | 800W |
Output speed: | 23RPM |
Packing gross weight: | 98kgs |
Packing size: | 72*42*80cm |
Standard Parts of RG-1C Roll Groover
Item Number | Description | Net weight | ||||
911042 | Drive roller 1"-1 ½" (Φ33-Φ48) | 1.10kg | ||||
911043 | Drive roller 2"-6" (Φ60-Φ168) | 1.30kg | ||||
911044 | Drive roller 8" (Φ219) | 1.40kg | ||||
912011 | Groove roller 1"-1 ½"(Φ33-Φ48) | 0.40kg | ||||
912012 | Groove roller 2"-6" (Φ60-Φ168) | 0.45kg | ||||
912013 | Groove roller 8" (Φ219) | 0.45kg | ||||
998078 | Pipe stand | 6.90kg | ||||
998033 | Pipe Stabilizer | 2.80kg | ||||
998026 | Foot Switch | 1.50kg | ||||
Ordering Information
Catalog No. | Phase | Power | ||||
900010 | Single | 800W, 220V, 50/60HZ | ||||
900011 | Single | 800W, 110V, 50/60HZ | ||||
Roll Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Roll Sets
Available in sizes: 1"-1 ½", 2"-6", 8"
For Steel pipe 1"-8" SCH10/40
High strength steel, hardened to withstand long-time usage
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes: 1"-8"
Pipe stands are available in tripod and five-legged stand forms
Base & Parts
Pipe stabilizer ① to prevent pipe slipping; Steel tube bracket ② for handy grip
Complete steel base plate ③ High-strength, solid and deformation-resistant. Tool box ④ for easy stock of roll sets, tools and parts
Thickened Steel Plate Base
Thickened steel plate base makes the machine stronger. More heavy duty

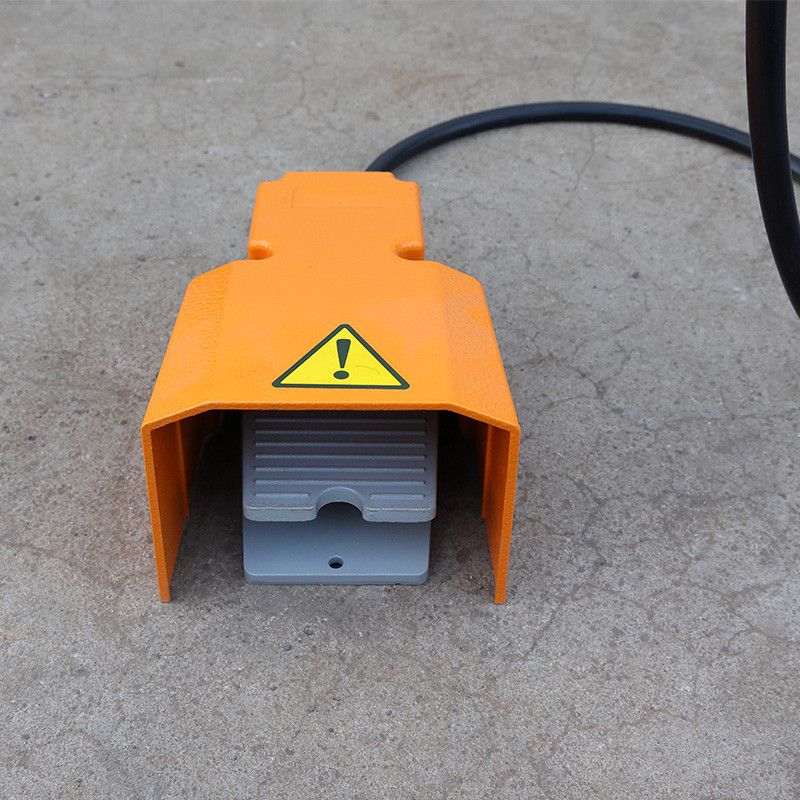

Foot Switch
Pipe Stablizer
Resources of RG-1C Roll Grooving Machine
Pipe Roll Grooving Machine Comparasion
