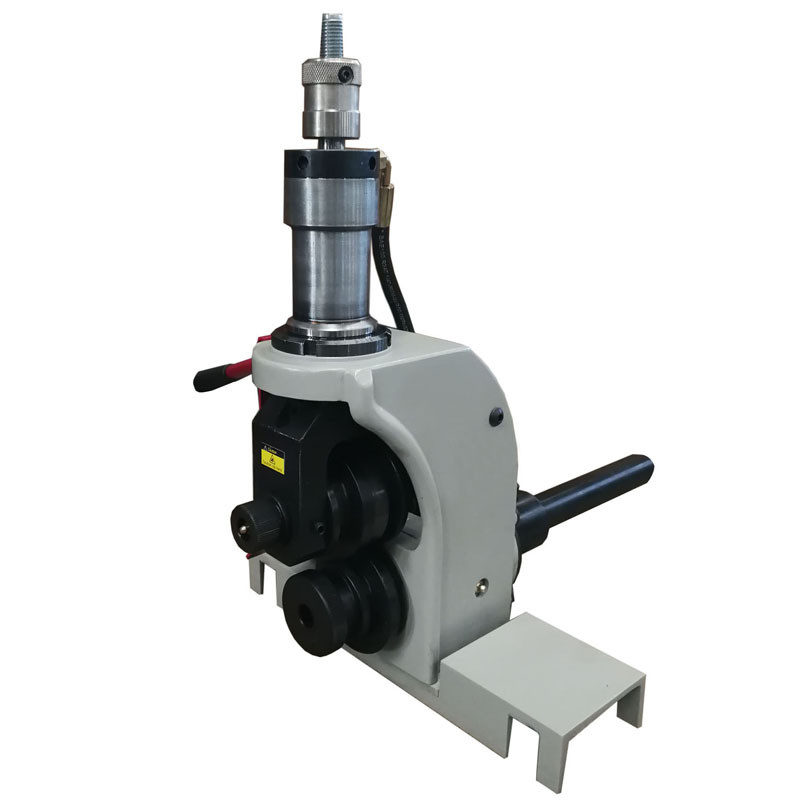

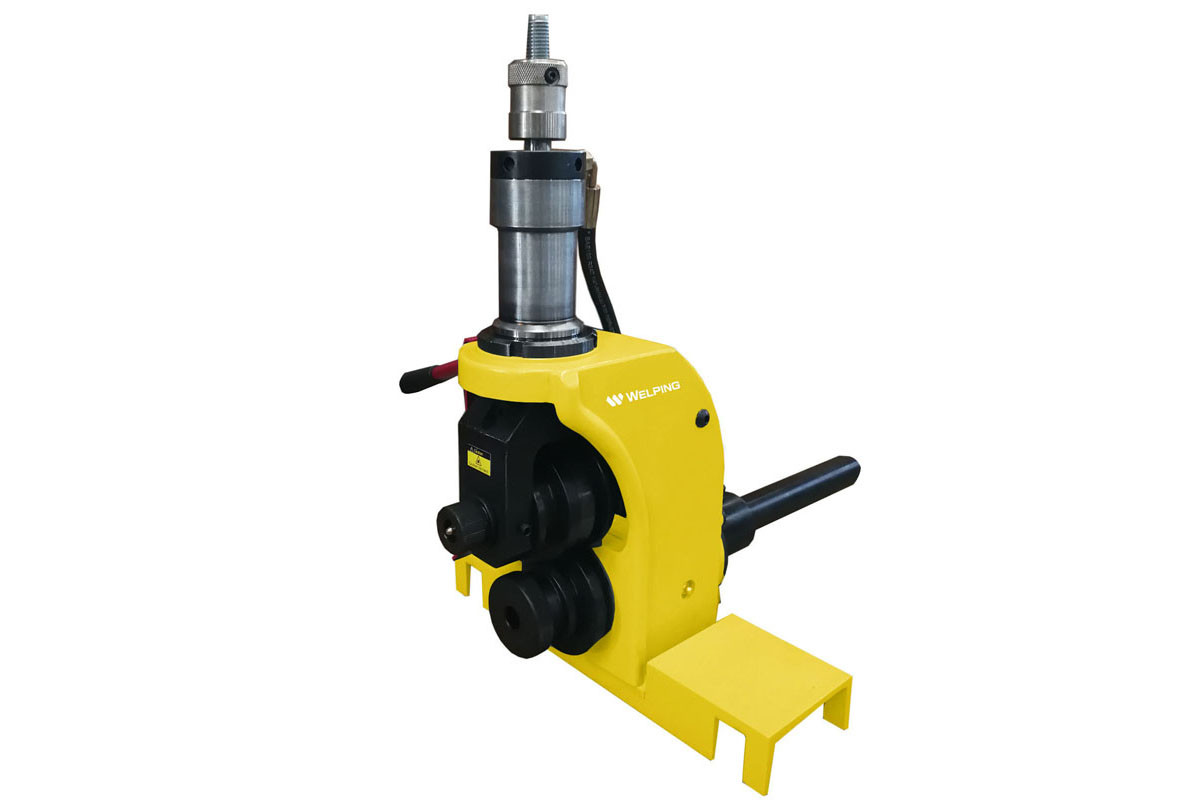

Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)
group nameRoll Grooving Machine
-
Min Order1 piece
brand nameElectric Pipe Grooving Machine Manufacturer
modelRG-H2X
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 30 Apr 2024 11:17:31 GMT
Paramtents
Fabrication Capacity 2"-12"(DN50-DN300) Steel Pipe
Max Wall Thickness 10mm
Packing Size 45*20*65cm
Gross Weight 67KG
Packging & Delivery
Size45cm x 20cm x 65cm
Weight57.00kg / piece
Min Order1 piece
Briefing
RG-H2X manual roll grooving machine for 1 -12 steel pipe. Capable to adjust the machine height as needed on construction sites
Detailed
Pipe Roll Grooving Machine Video
Features of Manual Hydraulic Roll Groover Machine
● Model RG-H2X Manual Hydraulic Roll Grooving Assembly is designed to groove steel pipes by mounted power drive or horizontal threading machines
● It is heavy duty for grooving 2" to 12" steel pipe
● Compact design and rugged structure enables unit for mass fabrication duty on jobs
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Pipe Roll Grooving Machine Parameter
Model: | RG-H2X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" SCH10/40 |
Max wall thickness: | 10mm |
Packing gross weight: | 67kgs |
Packing size: | 45*20*65cm |
Standard Parts of RG-H1X Roll Groover
Item Number | Description | Net weight | ||||
911022 | Drive roller 2"~3" (Φ60~Φ89) | 1.30kg | ||||
911021 | Drive roller 3 1/2"~6" (Φ101~Φ168) | 1.30kg | ||||
911020 | Drive roller 8"-12" (Φ219-Φ325) | 1.40kg | ||||
912010 | Groove roller 2"~3" (Φ60~Φ89) | 0.45kg | ||||
912009 | Groove roller 3 1/2"~6" (Φ101~Φ168) | 0.45kg | ||||
912008 | Groove roller 8"-12" (Φ219-Φ325) | 0.45kg | ||||
911018 | Drive bar adapter | 2.30kg | ||||
913006 | Support Bench | 2.20kg | ||||
Resources of RG-H2X Roll Grooving Machine
Roll Grooving Machine Configuration
Hydraulic pump
High-quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
The proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Adapter plate
Adapter plate to fit on threading machine
Work with 2",3",4" pipe threading machine
Groove Roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
Drive roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
