CM20 8 inch to 20 inch Hydraulic Steel Pipe Cutting Machine Sch10 Sch40
group name8"-20”Pipe Cutting Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelCM-20
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeSun, 07 Dec 2025 12:35:55 GMT
Paramtents
Grooving Capacity 8-20inch
Power Supply 1100W
Output Speed 23RPM
Max Wall Thickness: 12mm
Gross Weight 200kgs
Available Material Carbon Steel Pipes, Stainless Steel Pipes, PE Pipe
Packging & Delivery
Size92cm x80cm x110cm
Weight200kg / piece
Min Order1 piece
Briefing
Pipe cutting is an essential part of the plumbing trade both general pipework fabrication and pipeline applications.
Detailed
Hydraulic Pipe Cutter Machine Video
Features of Electric Hydraulic Pipe Cutting Machine

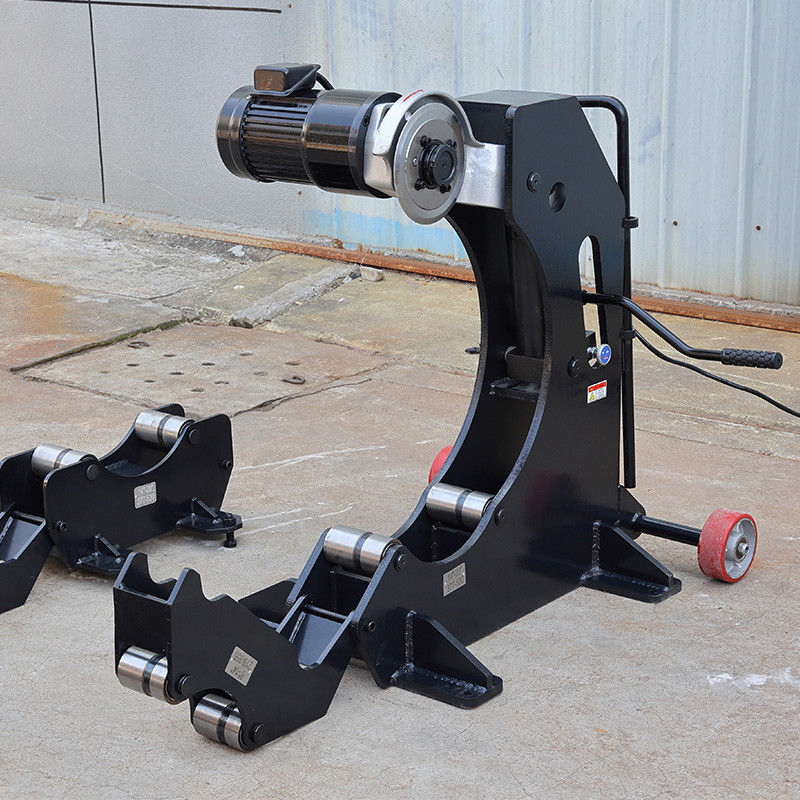

● The Model CM-20 Electric Hydraulic Pipe Cutting Machine is designed to cut steel pipes and stainless steel from 8" -20" (DN200~DN500) in SCH10/SCH40.
● It can cut a wide range of pipes, including steel, stainless steel, and PE pipes, making it suitable for diverse industrial applications.
● Electric hydraulic systems provide high accuracy in cutting, ensuring clean and precise cuts every time. This is crucial for industries where accuracy is paramount.
● Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
● The electric pipe cutting machine operates through a cold cutting process, ensuring that no sparks are generated during the cutting of steel pipes. This characteristic is particularly advantageous in environments where the presence of sparks could pose safety hazards, such as in oil and gas facilities or areas with flammable materials.
● Cold cutting not only eliminates the risk of fire but also helps maintain the integrity of the material being cut by avoiding heat-affected zones and preserving the structural properties of the steel. As a result, electric pipe cutting machines provide a safe and efficient solution for industries requiring precise and spark-free cutting of steel pipes.
Pipe Cutting Machine Parameter
Model: | CM-20 |
Suitable materials: | Carbon Steel Pipes, SS Pipe, PE Pipes |
Fabrication Capacity: | 8"-20" Pipe SCH10/40 |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 12mm |
Motor power: | 1100W |
Output speed: | 23RPM |
Packing gross weight: | 200kgs |
Packing size: | 92*80*110cm |
Standard Parts of CM-20 Pipe Cutter
Item Number | Description | Net weight | ||||
998102 | Pipe stand for 8"-20" | 45.0kg | ||||
912019 | Cutting Blade (standard) | 1.25kg | ||||
912058 | Cutting Blade (heavy-duty) | 1.3kg | ||||
Drive Unit
| Phase | Power | Voltage | Frequency |
| 900090 | Single | 1100W | 220V | 50/60Hz |
| 900091 | Single | 1100W | 110V | 50/60Hz |
Resources of CM-20 Pipe Cutter machine
Pipe Cutting Machine Configuration
Wide Application
It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
Casting part
Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
Wheels
The inclusion of wheels enhances the mobility of the pipe cutting machine, allowing it to be easily transported between different workstations or job sites.
Pipe Stand
Stability and Safety.By securely holding the pipes in place, the pipe supports prevent damage due to external forces such as vibration
Cutting Wheel
Available in sizes:1/2"-20"
For Steel pipe 1/2"-20" SCH10/40
High strength steel, hardened to withstand long-time usage
Stainless Steel Cutting Wheel (For Option)
manufactured from high-quality stainless steel alloys, providing excellent strength and toughness. This enables them to cut through tough materials with ease, including stainless steel pipes
