Paramtents
Cutting Capacity Up To 4" (114mm)
Pipe Mounting Capacity 1 1/4"-8"(32mm-200 mm)
Drill Chuck Capacity 1/16"-5/8"(2mm-16 mm)
Drill Chuck Speed 240RPM
Current Draw Rating 8 Amps @ 220-240V
Current Draw Rating 15 Amps @ 120V
Gross Weight 15kgs
Available Material Carbon Steel Pipes, PE Pipes
Packging & Delivery
Size37cm x33cm x34cm
Weight15kg / piece
Min Order1 piece
Briefing
Widely used in the fire protection industry
Detailed
Pipe Hole Cutting Machine Features
Features of Pipe Hole cutter

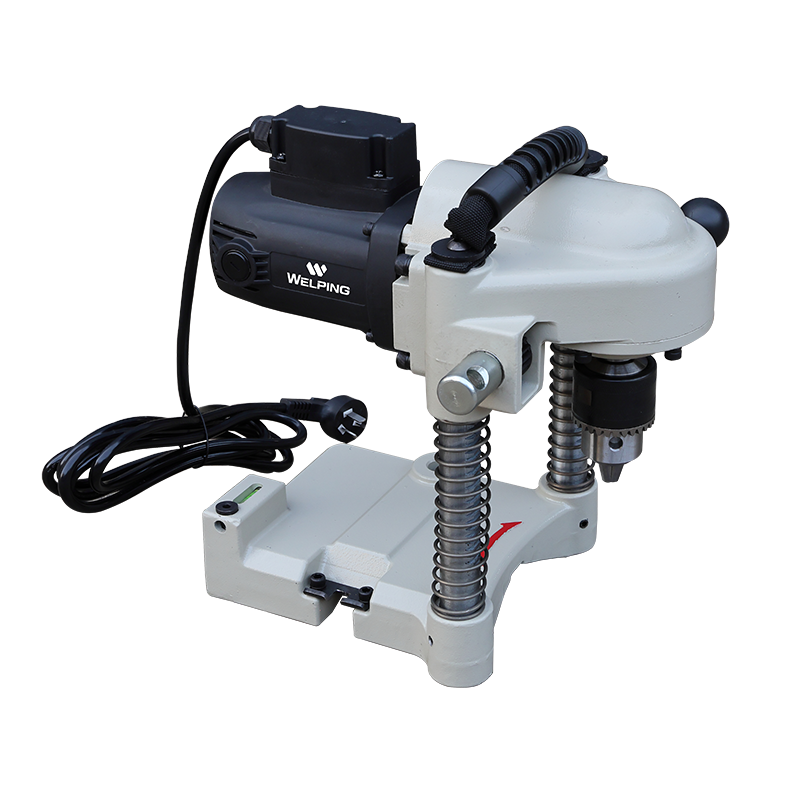

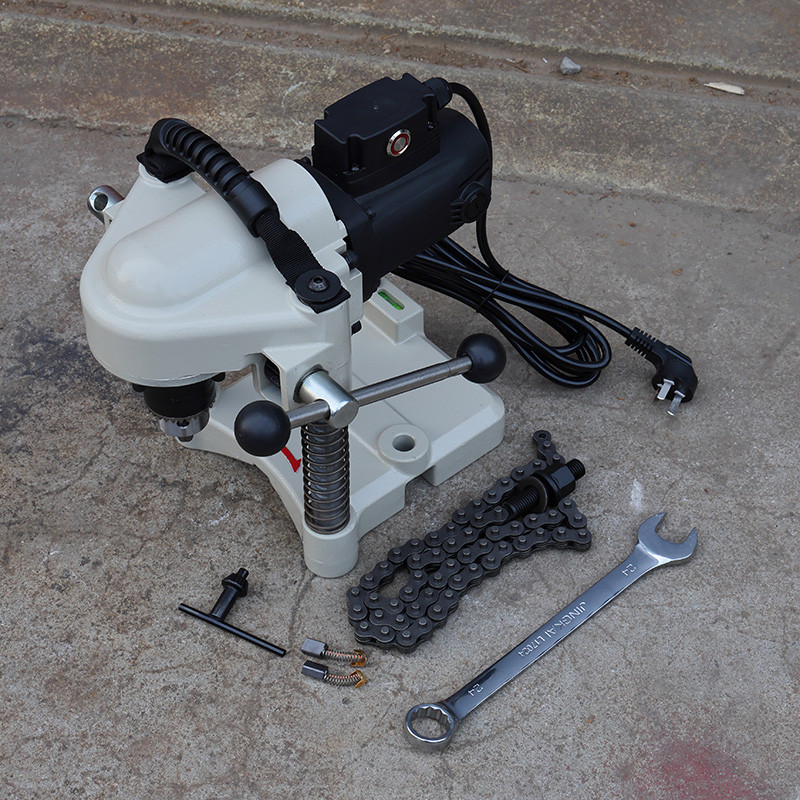

●The Model HC-1X Pipe Hole Cutter is designed to cut holes up to 4" into steel pipe.
The HC-1X has a 5/8" capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors. An integral motor and gear-reduction optimize the performance of large-diameter hole saws.
●The two feed handles allow the operator to use the Pipe HoleCutter from either the left or right side. A rotating leveling vial in the base allows repeated holes to line up.
●Only 11" high, the compact design, allows the HC-1X to be used in tight quarters or above in-stalled pipe close to ceilings.
Pipe Roll Grooving Machine Parameter
Model: | HC-1X |
Suitable Material: | Carbon Steel Pipes, PE Pipes |
Cutting Capacity: | up to 4"(114mm) |
Pipe Mounting Capacity: | 1 1/4"- 8"(32mm-200 mm) |
Drill Chuck Capacity: | 1/16"- 5/8"(2mm-16 mm) |
Drill Chuck Speed: | 240RPM |
Current Draw Rating: | 8 Amps @ 220-240V |
15 Amps @ 120V | |
Packing gross weight: | 15kgs |
Packing size: | 37*33*34cm |
Ordering Information
Catalog No. | Phase | Power | ||||
910010 | Single | 1800W,220V,50/60HZ | ||||
910011 | Single | 1800W,110V,50/60HZ | ||||
Pipe Hole Cutting Machine Configuration
High Efficiency
The pipe hole cutting machine can quickly complete the operation, significantly improve the working efficiency and save time.
Wide range of applications
It can be stuitable to many materials, such as steel pipe, aluminum pipe, PVC pipe, etc., with strong adaptability.
Easy to move and use
This hole cutter is portable, making it easy to use at different job sites.
It is an Indispensable tool for pipeline construction and maintenance
High precision
The machine comes with a leveling device and advanced positioning and cutting technology, which ensures the accuracy of the position and size of the opened holes and reduces material waste.
