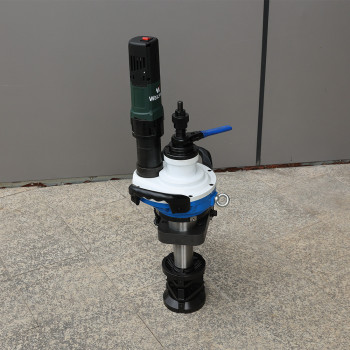

80-600 mm Heavy Duty Electric ID Mounted Pipe Beveling Machine 1.6KW Cold Cutting Beveling Tool (WPE-2)
group nameID Mounted Pipe Beveling Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelWPE-2
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 23:25:46 GMT
Paramtents
Fabrication Capacity 80-600 mm
Wall Thickness 75mm
Rotating Speed 16/14/12/10RPM
Power Supply 2KW
Drive Electric
Packging & Delivery
Min Order1 piece
Briefing
The pipe beveling machine is a specialized tool designed for internal clamping and precise beveling of pipe ends
Detailed
80-600mm ID Mounted Electric Pipe Beveling Machine
The internal expansion pipe beveling machine tightens the inner wall of the pipe and drives the cutter head to rotate after multistage deceleration by the planetary reducer to process the port groove of the pipe. For pipes of different materials, you only need to install tools of corresponding materials for safe and rapid processing. We can provide tools from different angles for groove. flat mouth and inner groove. lt is the best choice for processing small mouth diameter.
lt is widely used in pipeline installation engineering and emergency repair inpetroleum, chemical industry, natural gas, boiler, pharmaceutical, nuclear power, food and other industries
They are widely used in the fields of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power, such as the project of west gas transporting to east china.
● Automatic positioning center, fast and convenient installation;
● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;
● Cold cutting without changing the pipe material;
● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;
● Heavy-Duty Capability – Up to 75mm Wall Thickness
ID Mounted Electric Pipe Beveling Machine Parameter
| Model | Suitbale Material | Capacity ID (mm) | Power Supply | Wall Thickness (mm) | Rotating Speed (rpm) |
| WPE-252-2 | Carbon steel, SS | 80-240 | 2KW, 220V | ≤75 | 16RPM |
| WPE-352-2 | Carbon steel, SS | 150-330 | 2KW, 220V | ≤75 | 14RPM |
| WPE-426-2 | Carbon steel, SS | 250-426 | 2KW, 220V | ≤75 | 12RPM |
WPE-630-2 | Carbon steel, SS | 300-600 | 2KW, 220V | ≤75 | 10RPM |
Packing Information
| Model | Length(cm) | Width (cm) | Height(cm) | G.W (kg) | N.W (kg) |
| WPE-252-2 | 98 | 52 | 40 | 64 | 45 |
| WPE-352-2 | 100 | 56 | 45 | 76 | 52 |
| WPE-426-2 | 110 | 65 | 50 | 131 | 107 |
WPE-630-2 | 107 | 69 | 58 | 162 | 115 |
Standard Parts of WPE-1 Pipe beveler
Item Number | Description | Net weight | ||||
/ | Tool box | 2kg | ||||
/ | 0° cutting blade | 0.30kg | ||||
/ | 30° cutting blade | 0.40kg | ||||
/ | 37.5° cutting blade | 0.40kg | ||||
Pipe Beveler Machine Configuration
Heavy-Duty Capability – Up to 75mm Wall Thickness
The heavy-duty models are engineered to handle extremely thick-walled pipes, capable of machining carbon steel and alloy steel pipes with wall thicknesses up to 75mm.
Versatile Bevel Types
* 0-37 degree tool, supports various bevel angles and shapes, including straight, V, and J bevels, depending on welding requirements.
Wide Application Range
Suitable for carbon steel, stainless steel, alloy steel, and other metal pipes, covering a wide range of pipe diameters and wall thicknesses.
High Efficiency
Fast setup and stable clamping significantly improve productivity while minimizing operator fatigue.
Internal Clamping Design
The machine clamps from the inside of the pipe using an expandable mandrel, ensuring strong stability and precise centering during operation.
Cutting tool
* 0°,30°,37.5°is standard tools
* Other degree is optional forms
Resources of Pipe Bveling Machine
Pipe Beveling Machine Comparasion
