80-600 mm Electric ID Mounted Pipe Beveling Machine 1.6KW Cold Cutting Beveling Tool (WPE-1)
group nameID Mounted Pipe Beveling Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelWPE-1
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 21:38:43 GMT
Paramtents
Fabrication Capacity 80-600 mm
Wall Thickness 20mm
Rotating Speed 16/14/12/10RPM
Power Supply 1600W
Drive Electric
Packging & Delivery
Min Order1 piece
Briefing
The pipe beveling machine is a specialized tool designed for internal clamping and precise beveling of pipe ends
Detailed

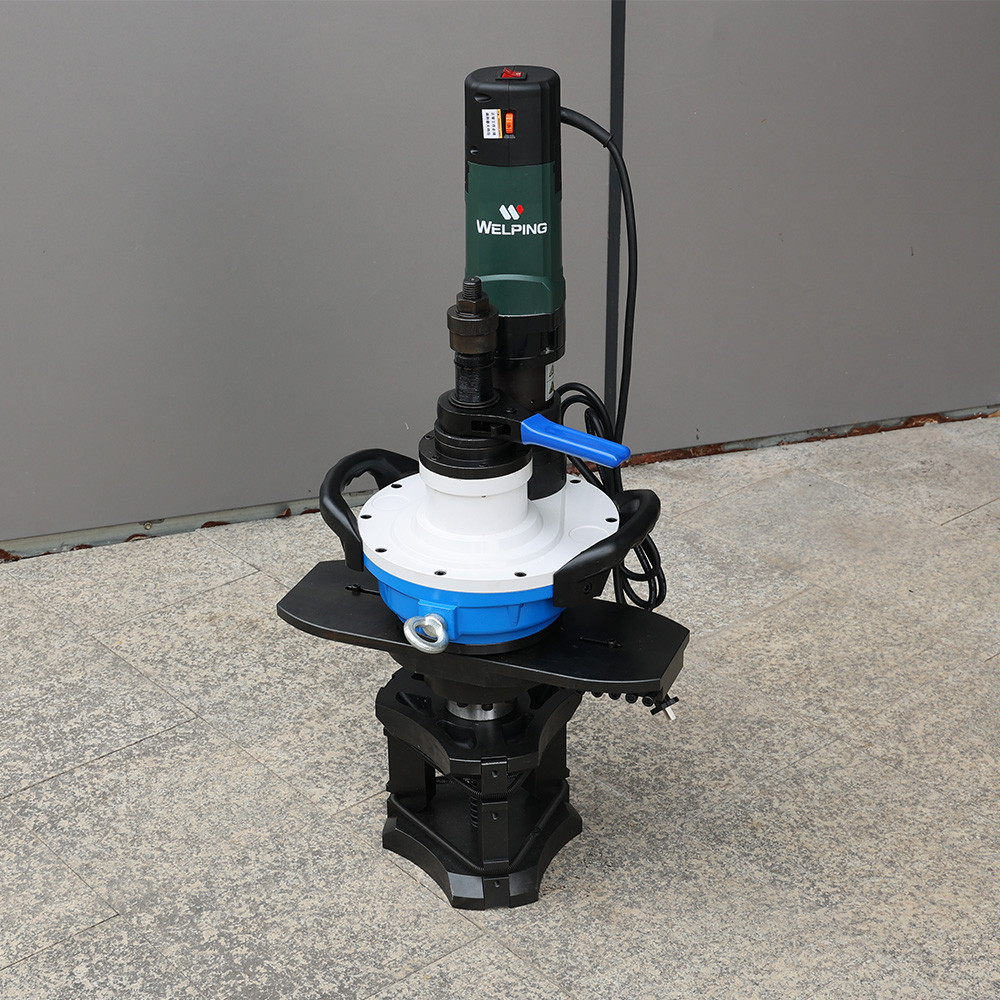

80-600mm ID Mounted Electric Pipe Beveling Machine
The internal expansion pipe beveling machine tightens the inner wall of the pipe and drives the cutter head to rotate after multistage deceleration by the planetary reducer to process the port groove of the pipe. For pipes of different materials, you only need to install tools of corresponding materials for safe and rapid processing. We can provide tools from different angles for groove. flat mouth and inner groove. lt is the best choice for processing small mouth diameter.
lt is widely used in pipeline installation engineering and emergency repair inpetroleum, chemical industry, natural gas, boiler, pharmaceutical, nuclear power, food and other industries
They are widely used in the fields of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power, such as the project of west gas transporting to east china.
● Automatic positioning center, fast and convenient installation;
● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;
● Cold cutting without changing the pipe material;
● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;
● Light weight, easy to carry
ID Mounted Electric Pipe Beveling Machine Parameter
| Model | Suitbale Material | Capacity ID (mm) | Power Supply | Wall Thickness (mm) | Rotating Speed (rpm) |
| WPE-252-1 | Carbon steel, SS | 80-240 | 1.6KW, 220V | ≤15 | 16RPM |
| WPE-352-1 | Carbon steel, SS | 150-330 | 1.6KW, 220V | ≤15 | 14RPM |
| WPE-426-1 | Carbon steel, SS | 250-426 | 1.6KW, 220V | ≤15 | 12RPM |
WPE-630-1 | Carbon steel, SS | 300-600 | 1.6KW, 220V | ≤15 | 10RPM |
Packing Information
| Model | Length(cm) | Width (cm) | Height(cm) | G.W (kg) | N.W (kg) |
| WPE-252-1 | 84 | 40 | 34 | 50 | 35 |
| WPE-352-1 | 90 | 50 | 44 | 76 | 52 |
| WPE-426-1 | 105 | 55 | 52 | 120 | 90 |
WPE-630-1 | 105 | 70 | 65 | 162 | 115 |
Standard Parts of WPE-1 Pipe beveler
Item Number | Description | Net weight | ||||
/ | Tool box | 2kg | ||||
/ | 0° cutting blade | 0.30kg | ||||
/ | 30° cutting blade | 0.40kg | ||||
/ | 37.5° cutting blade | 0.40kg | ||||
Pipe Beveler Machine Configuration
Wide Application Range
Suitable for carbon steel, stainless steel, alloy steel, and other metal pipes, covering a wide range of pipe diameters and wall thicknesses.
Versatile Bevel Types
* 0-37 degree tool, supports various bevel angles and shapes, including straight, V, and J bevels, depending on welding requirements.
Internal Clamping Design
The machine clamps from the inside of the pipe using an expandable mandrel, ensuring strong stability and precise centering during operation.
Cutting tool
* 0°,30°,37.5°is standard tools
* Other degree is optional forms
