18-28 mm Electric Portable Pipe Beveling Machine 1.2 KW Cold Cutting Beveling Machine (WPE-30)
group nameID Mounted Pipe Beveling Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelWPE-30
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 18:57:44 GMT
Paramtents
Fabrication Capacity 18-28 mm
Wall Thickness 15mm
Rotating Speed 50RPM
Power Supply 1200W
Packing Size 58*41*15cm
Gross Weight 13KG
Drive Electric
Packging & Delivery
Size72cm x42cm x80cm
Weight98kg / piece
Min Order1 piece
Briefing
The internal expansion pipe beveling machine processes the port groove of the pipe.
Detailed

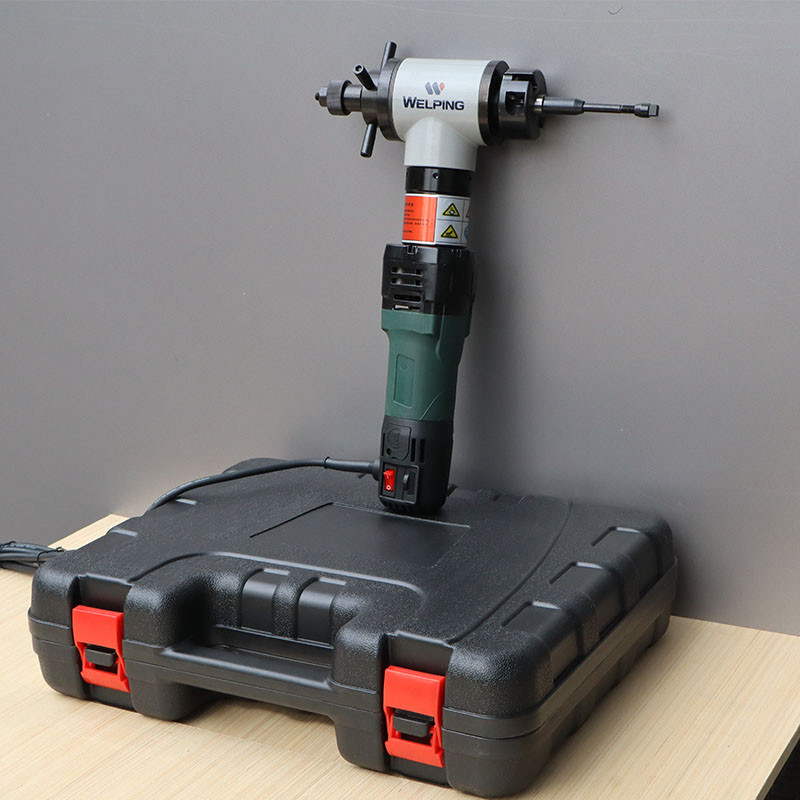

ID Mounted Electric Pipe Beveling Machine Features
Features of Electric ID Mounted Pipe Beveling Machine
● Automatic positioning center, fast and convenient installation;
● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;
● Cold cutting without changing the pipe material;
● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;
● Lightweight, easy to carry
ID Mounted Electric Pipe Beveling Machine Parameter
Model: | WPE-30 |
Suitable materials: | Carbon Steel (SS Pipe) |
Fabrication Capacity: | φ18-28mm |
Power supply: | 220V / 110V |
Frequency: | 50HZ / 60HZ |
Max Wall thickness: | 15mm |
Motor power: | 1200W |
Output speed: | 50RPM |
Packing gross weight: | 13kgs |
Packing size: | 58*41*15cm |
Standard Parts of WPE-30 Pipe beveler
Item Number | Description | Net weight | ||||
/ | Tool box | 2kg | ||||
/ | 0° cutting blade | 0.30kg | ||||
/ | 30° cutting blade | 0.40kg | ||||
/ | 37.5° cutting blade | 0.40kg | ||||
Ordering Information
Catalog No. | Phase | Power | ||||
/ | Single | 1200W, 220V, 50/60HZ | ||||
/ | Single | 1200W, 110V, 50/60HZ | ||||
Pipe Beveler Machine Configuration
Inward expansion type
* Complete cooling process without changing
The material of the tube.
* The beveling process of the port groove of the pipe
* It is your best choice for beveling small mouth
diameter pipes
Tension installation
* 0-37 degree tool, different angles for beveling
the pipe fast speed and high efficiency.
* Applied to multi materials: stainless steel,
* carbon steel, alloy steel and etc.
Tensioner
It can adjust the working capacity through
tensioner
Cutting tool
* 0°,30°,37.5°is standard tools
* Other degree is optional forms
