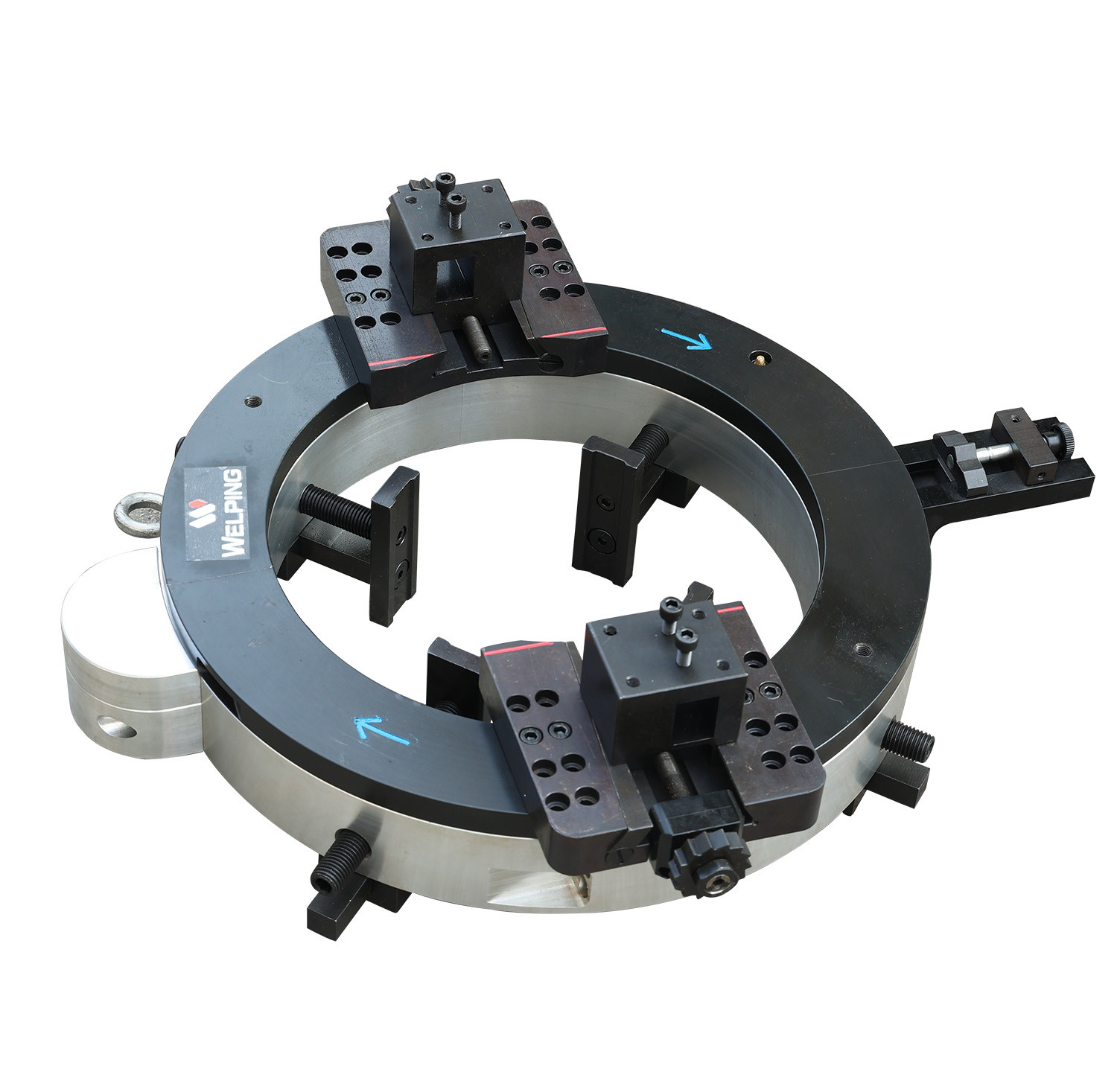

High Quality Pipe Roll Beveling Cutting Machine Od-mounted Type Compact Design Outside Pipe Cutting Beveling Tools(WPOE)
group nameID Mounted Pipe Beveling Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelWPOE
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeFri, 05 Dec 2025 19:26:15 GMT
Paramtents
Fabrication Capacity WPOE OD pipes
Wall Thickness ≤30mm /50mm or ≤110mm
Voltage 220V-240V
Power Supply 1500W-2000W
Drive Electric
Working Current 8-10A
Packging & Delivery
Size72cm x42cm x80cm
Weight98kg / piece
Min Order1 piece
Briefing
These series are external clamping full automatic beveling machine with compact design concept,which is designed forgroove processing of narrow working space and small diameter pipeline section. The external clamping type positioninginstallation is adopted and each specification and diameter pipe has a corresponding tensioning block which is automaticcentering ,firm clamping and convenient operation,
Detailed
OD Mounted Electric Pipe Beveling Machine Features
Features of Electric OD Mounted Pipe Beveling Machine
* Light weight and easy carry.
* Modular design.
* Cold cutting without changing the pipe material.
* Can work on stainless steel,carbon steel,carbon steel,alloy steel and other multi specification materials,u,single V, double V,J-type weld groove,chamfer and flat mouth,and groove processing of convex flange and plane flange after butt fusion welding,light weight and easy carry.
OD Mounted Electric Pipe Beveling Machine Parameter
Model: | WPOE |
Suitable materials: | Carbon Steel (SS Pipe) |
Working Current: | 8-10A |
Power supply: | 220V / 240V |
Frequency: | 50HZ / 60HZ |
Max Wall thickness: | ≤30mm /50mm or ≤110mm |
Motor power: | 1500W /2000W |
Output speed: | 30RPM |
Drive | Electric |
Standard Parts of WPOE Pipe beveler
Item Number | Description | Net weight | ||||
/ | Tool box | 2kg | ||||
/ | 0° cutting blade*2psc | 0.30kg | ||||
/ | 30° cutting blade*1pc | 0.40kg | ||||
/ | 37.5° cutting blade/1pc | 0.40kg | ||||
Ordering Information
Pipe Beveler Machine Configuration
Tension installation
* 0-37 degree tool to beveling the pipe fast speedand high efficiency.
Electric Device
*This can easy change .
Tensioner
It can adjust the working capacity through
tensioner
Cutting tool
* 0°,30°,37.5°is standard tools
* Other degree is optional forms
