Automatic Steel Pipe Laser Cutting & Double-End Grooving Line
group nameRoll Grooving Cutting Machine
-
Min Order1 piece
brand nameGruvmaster & Welping
modelCustomized
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
-
update timeThu, 24 Sep 2026 01:08:50 GMT
Paramtents
Product Type Automatic Pipe Processing Line
Processing Functions Laser Cutting, Hole Cutting & Double-End Grooving
Pipe Material Steel Pipe
Automation Automatic Transfer & Continuous Processing
Production Mode Batch Pipe Processing
Customization Pipe Size, Length & Line Configuration
Packging & Delivery
Min Order1 piece
Briefing
Automatic steel pipe processing line integrating laser cutting or hole cutting, automatic pipe transfer, and double-end roll grooving. Designed for continuous batch production with reduced manual handling and customizable line configuration.
Detailed
Product Overview
Automatic Steel Pipe Laser Cutting & Double-End Grooving Line
Integrated pipe loading, laser processing, automatic transfer and double-end grooving for continuous batch production.
1.Integrated Processing
Laser cutting, hole cutting and grooving in one line.
2.Automatic Transfer
Automatic pipe handling between stations.
3.Double-End Grooving
Two stations process both pipe ends.
4.Custom Configuration
Configured for actual production requirements.

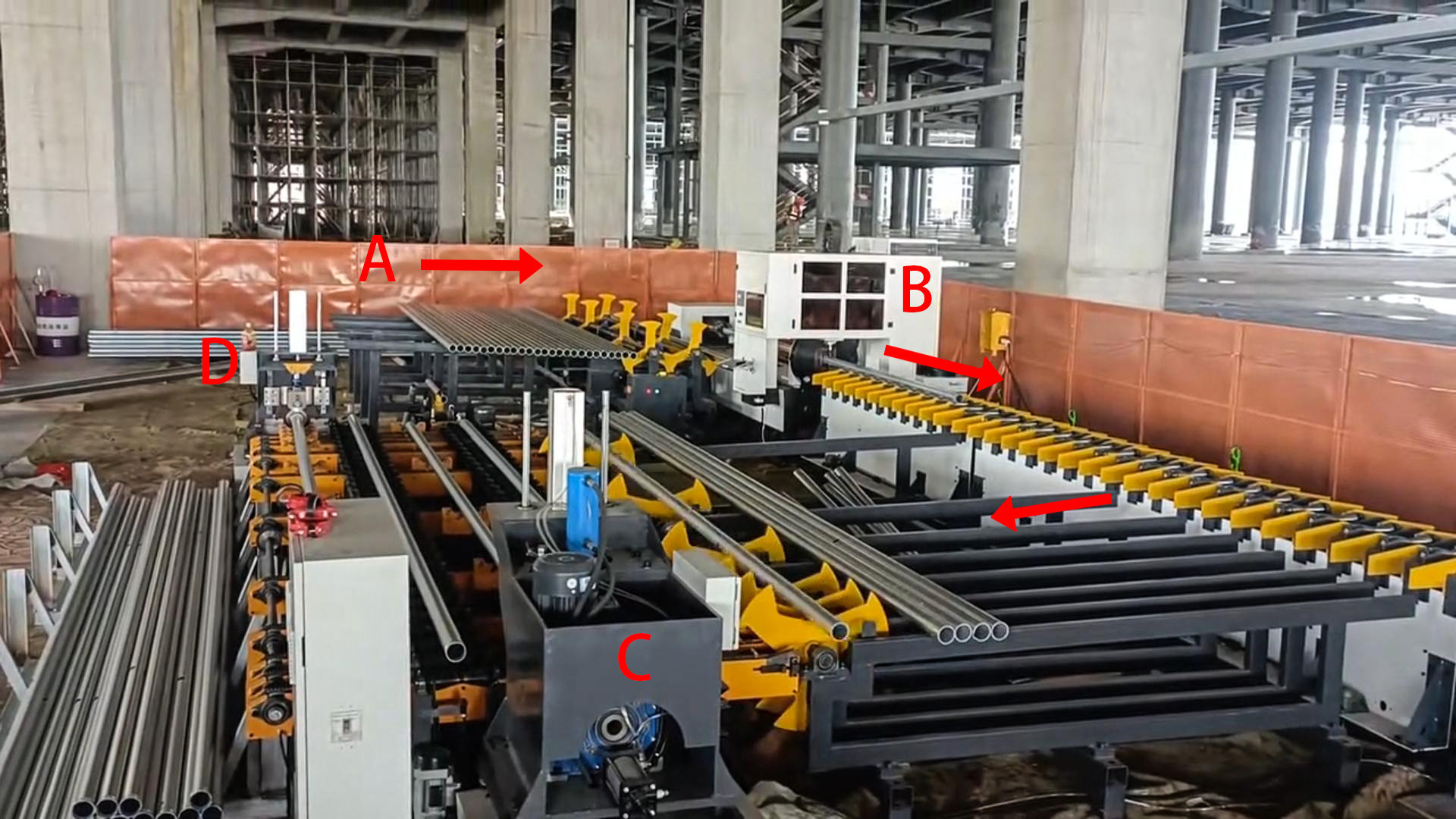

Automated Pipe Processing Workflow
Loading → Laser Cutting / Hole Cutting → First-End Grooving → Second-End Grooving → Discharge
1. "A" — Infeed Rack
Steel pipes are loaded and automatically transferred into the line.
2. "B" — Laser Processing Station
Pipes are conveyed for cut-to-length or hole cutting.
3. "C" — First-End Grooving Station
The first pipe end is automatically grooved.
4. "D" — Second-End Grooving Station
The opposite end is grooved before the finished pipe is discharged.
Working Video
See the Complete Production Line in Operation
Watch how steel pipes move through the complete workflow—from feeding and laser processing to automatic transfer and double-end grooving.
Estimated Production Cycle
| Pipe Outside Diameter | Estimated Cycle Time |
| Ø60–100 mm | Approx. 40 sec / pipe |
| Above Ø100 mm | Approx. 45 sec / pipe |
What the Line Can Do
Laser Cutting
Cut pipes to the required length.
Hole Cutting
Process required holes before grooving.
Double-End Grooving
Process both pipe ends in sequence.
Why Use an Integrated Processing Line?
1. Less Manual Handling
Reduces repeated pipe movement between separate machines.
2. Continuous Workflow
Connects loading, laser processing, grooving and discharge in sequence.
3. Multiple Processes in One Line
Cutting, hole processing and grooving are integrated into one system.
4. Better for Batch Production
Suitable for repetitive processing of similar pipe specifications.
Typical Applications
1. Fire Protection Pipe Fabrication
For batch cutting, hole processing and grooving of steel pipes.
2. Prefabricated Pipe Workshops
For repeated cutting and grooving in pipe prefabrication.
3.Steel Pipe Processing Factories
For standardized batch processing of steel pipes.
4.Pipe Spool Production
For pipe preparation before fitting assembly or installation.
FAQ
Can this line be customized for different pipe sizes?
Yes. The final configuration can be designed according to pipe diameter, wall thickness, length and processing requirements.
Can the laser station cut both pipe length and holes?
Yes. Depending on the configured laser system and processing program, it can support both cut-to-length processing and hole cutting.
What information is needed for a quotation?
Please provide pipe diameter, wall thickness, pipe length, material, cutting requirements, hole-processing requirements, groove specification and expected production capacity.
Need a Pipe Processing Line for Your Production?
Send us your pipe specifications, required processing steps and target production capacity. Our team can evaluate the workflow and recommend a suitable line configuration for your project.
Recommended information to provide: Pipe OD / Wall Thickness / Length / Material / Cutting Requirement / Hole Requirement / Groove Specification / Target Output
