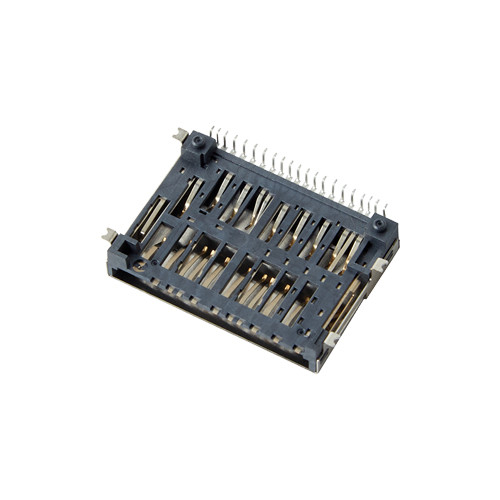

High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
group nameSD 7.0 Card Connector
-
Min Order1000 piece
brand nameMoarconn Card Connector Manufacturer
modelSD 7.0 Card Connector（SD500-T1250-01）
payment methodL/C, D/A, D/P, Western Union
-
update timeSat, 06 Dec 2025 03:45:47 GMT
Paramtents
Product Height 5.00mm
Usable Memory Card SD 7.0/SD 4.0/SD 3.0memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
Min Order1000 piece
Briefing
Detailed
Learn about Height 5.00mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.05mm Pitch SD 7.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 5.00mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. The product features a stand-off type design to accommodate customers' internal spatial requirements.
3.Incorporates a push-pull mechanism for easy SD card insertion and ejection,with a mechanical lifespan of 10,000 cycles.
4.Compliant with SD 7.0 standard, achieving transfer speeds up to 985MB/s to support 4K/8K ultra-HD video recording and high-speed photography applications requiring large-capacity storage.
Understand the Parameters of the Height 5.00mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 5.00mm SD 7.0 Card Connector
