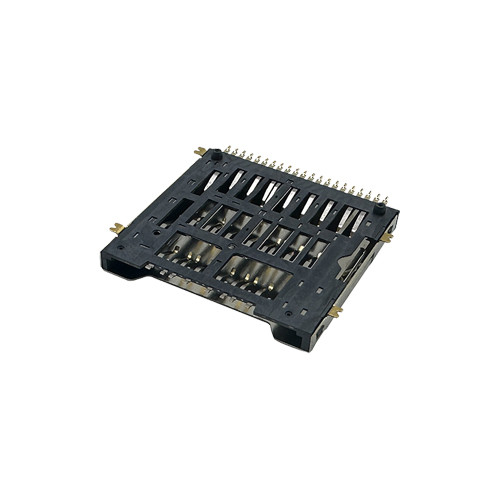

SD Card Socket Connector 4GB/s Top Mount Push-Pull Height 2.94mm
group nameSD 8.0 Card Connector
-
Min Order1000 piece
brand nameMoarconn Card Connector Manufacturer
modelSD 8.0 Card Connector（SD294-T6151-01）
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 31 Mar 2026 02:17:10 GMT
Paramtents
Product Height 2.94mm
Usable Memory Card SD 8.0/SD 7.0/SD 4.0/SD 3.0 memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
Min Order1000 piece
Briefing
Detailed
Learn about Height 2.94mm SD 8.0 Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
1.10mm Pitch SD 8.0 Memory Card Connector, Top Mount SMT Type, Push-Pull Structure, 2.94mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Supports SD 8.0 standard and is compatible with UHS-III protocol, delivering transfer speeds of up to 4GB/s to meet the demands of 4K/8K high-definition video, high-speed photography, and other large-capacity data storage applications.
3.The product boasts an insertion/extraction lifespan of over 10,000 cycles, with oxidation resistance and wear resistance to ensure long-term stable connectivity.
4.Backward compatible with older standards such as SD 7.0,4.0 and 3.0, supporting multiple types of memory cards for enhanced user flexibility.
Understand the Parameters of the Height 2.94mm SD 8.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
4 Gb/s
|
|
|
Number of pins:
|
29
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 2.94mm SD 8.0 Card Connector
