SIM Card Connector HingeType Top Mount Height 1.90mm
group nameMini SIM Card Connector
-
Min Order1000 piece
brand nameMoarconn Card Connector Manufacturer
modelSIM Card Connector (SM190-T6250-01-W) (473882001)
payment methodL/C, D/A, D/P, Western Union
-
update timeSat, 06 Dec 2025 09:16:20 GMT
Paramtents
Product Height 1.90mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
Min Order1000 piece
Briefing
Detailed
Learn about Height 1.90mm Mini SIM Card Connector

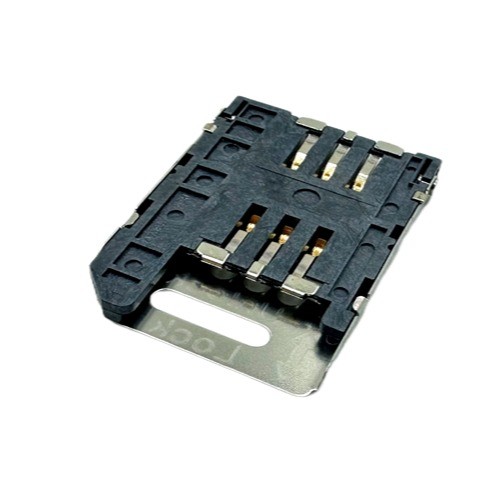

Mini SIM(Subscriber Identity Module) Card Connector
2.54mm Pitch SIM Card Connector,Top Mount SMT Type,Hinge Structure, 1.90mm Height
Advantage：
1. Hinge structure design,ensure to connect better for the terminals and a card.
2.Stronger locking on a SIM card,can keep better connection in the environment of vibration.
3. Slope-shaped terminals, prevent terminals to be damaged when the card is inserted and extracted.
4. Card polarization feature, unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.90mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Mobile Communication,Car Central Control System,Mobile Wifi | |
Detail Drawing of Height 1.90mm Mini SIM Card Connector
