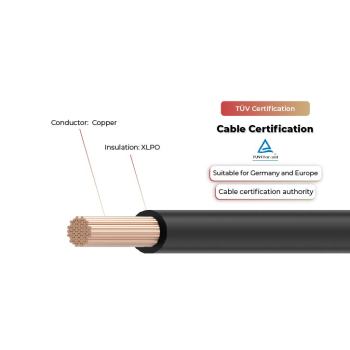

1kV Energy Storage Cable ESL10Z3-K/H TÜV
group nameTÜV Energy Storage Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelESL10Z3-K/H
payment methodT/T, L/C
-
update timeSat, 06 Dec 2025 05:08:35 GMT
Paramtents
Conductor Tinned or bare copper
Insulation XLPO
Rated temperature -40°C ~ +125°C
Rated voltage 1000V DC
Flame test IEC 60332-1
According to TÜV 2 PfG 2693/03.23
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 1×4~240mm²
Color: Black, Optional color
Color: Black, Optional color
Detailed
ESL10Z3-K/H Energy Storage cable Advantages
1kV Energy Storage Cable ESL10Z3-K/H TÜV
ESL10Z3-K/H energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· Resistan to battery acid
· High flame retardant
· High flexibility
· Easy to install
ESL10Z3-K/H Energy Storage cable Technical Data
|
Conductor
|
Tinned or bare copper
|
|
|
Insulation
|
XLPO |
|
|
Rated temperature
|
-40°C ~ +125°C
|
|
|
Rated voltage
|
1000V DC
|
|
According to | TÜV 2 PfG 2693/03.23 | |
Flame test | IEC 60332-1 | |
ESL10Z3-K/H Energy Storage cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Nom Thickness
(mm) |
Cable Max O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
TÜV ESL10Z3-K/H |
4 |
0.70 |
4.60 |
4.95 |
|
6
|
0.70
|
5.20
|
3.30 | |
10 | 0.70 | 6.60 | 1.91 | |
16 | 0.70 | 7.80 | 1.21 | |
25 | 0.90 | 9.60 | 0.780 | |
35 | 0.90 | 11.50 | 0.554 | |
50 | 1.00 | 13.50 | 0.386 | |
70 | 1.10 | 15.50 | 0.272 | |
95 | 1.10 | 17.50 | 0.206 | |
120 | 1.20 | 19.50 | 0.161 | |
150 | 1.40 | 22.00 | 0.129 | |
185 | 1.60 | 24.00 | 0.106 | |
240 | 1.70 | 27.50 | 0.0801 |
