600V Solar Cable AL-CVT (PS)E & S-JET Certified
group namePSE Solar Cable
-
Min Order10000 meter
brand nameSUNKEAN Solar Manufacturer
modelCVT
payment methodT/T, L/C
-
update timeSat, 06 Dec 2025 12:12:28 GMT
Paramtents
Rated temperature -15°C~90°C
Tested voltage 2.5kV/1min AC, 3.0kV/1min AC
Rated voltage 600V
Reference Standard JCS 4348, JIS C 3005
Conductor Aluminum copper
Insulation XLPE, Natural color
Jacket PVC, Blue
Packging & Delivery
Min Order10000 meter
Briefing
Conductor: 38~100mm²
Insulation Color: Natural
Jacket Color: Blue
Insulation Color: Natural
Jacket Color: Blue
Detailed
600V AL-CVT Cable (PS)E & S-JET Certified Advantages
600V AL-CVT Cable (PS)E & S-JET Certified

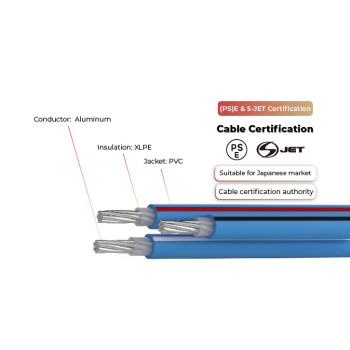

The T in the name of 600V Solar Cable AL-CVT cable means triple, i.e. three cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and aluminum conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.
· Good flexibility
· Damp heat-resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
600V AL-CVT Cable (PS)E & S-JET Certified Technical Data
|
Rated temperature
|
-15°C~90°C
|
|
Tested voltage | 2.5kV/1min AC，3.0kV/1min AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JCS 4348, JIS C 3005 | |
600V AL-CVT Cable (PS)E & S-JET Certified Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D. Range
(mm) |
Approximate Weight (kg/km) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable AL-CVT (PS)E & S-JET | 38 | 1.20 | 1.50 | 28.50±1.50 | 644 | 0.805 |
60 | 1.50 | 1.50 | 34.00±1.50 | 945 | 0.510 | |
100 | 2.00 | 1.50 | 41.90±1.50 | 1480 | 0.306 |
