92Ω High Speed Cable 112Gbps UL Certified
group nameAI Interconnection Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
model112Gbps
payment methodT/T, L/C
-
update timeWed, 19 Aug 2026 19:40:09 GMT
Paramtents
Rated temperature 80°C
Rated voltage 30V
Insulation FEP+FEP/PE FEP+ePTFE
Environmental Standards Compliance RoHS 2.0
File Number E522621
Supports Up to 67 GHz
Packging & Delivery
Min Order1 piece
Briefing

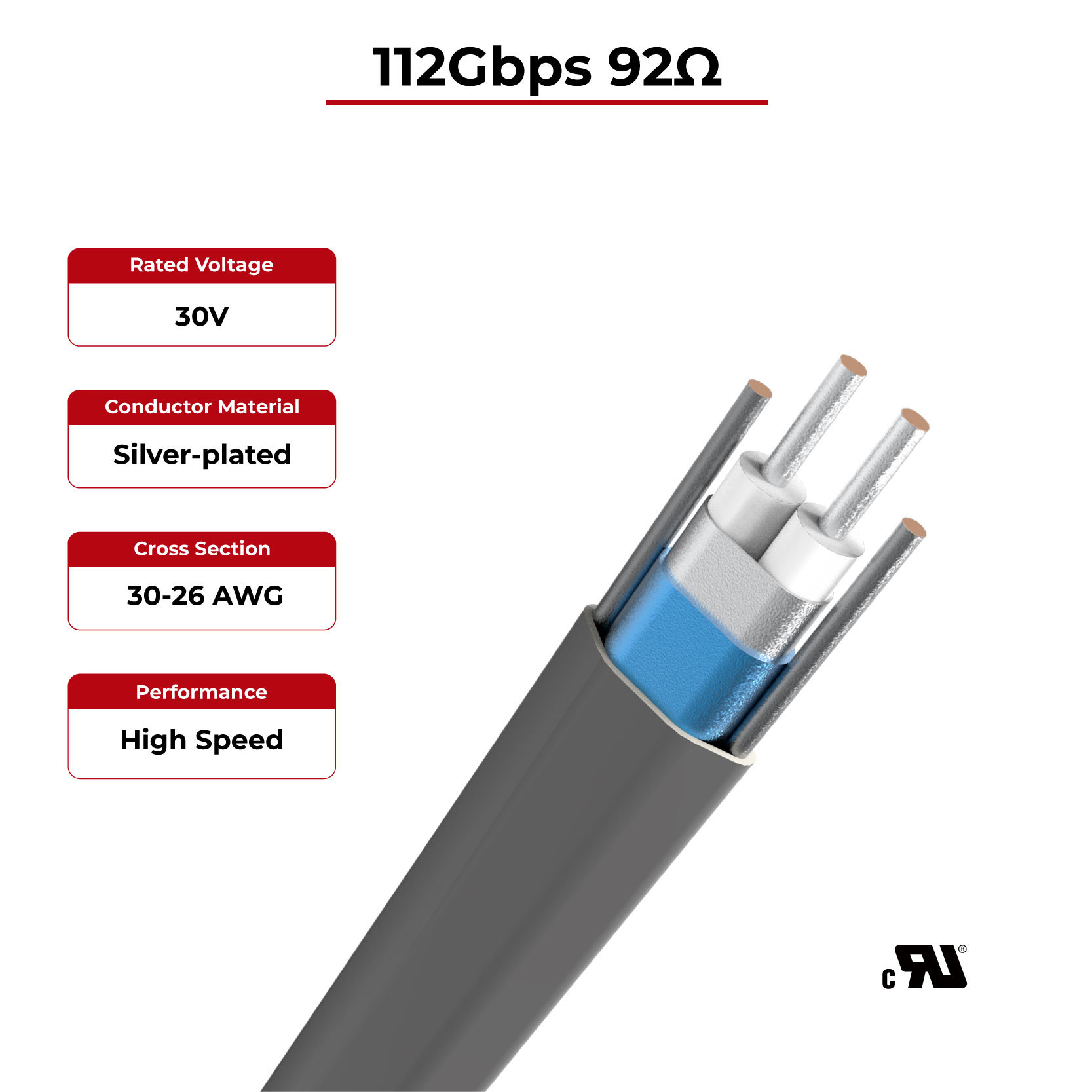

Conductor: 30AWG, 28AWG, 26AWG
Insulation: FEP+FEP/PE FEP+ePTFE
Insulation: FEP+FEP/PE FEP+ePTFE
Detailed
92Ω High Speed Cable 112Gbps Advantages
92Ω High Speed Cable 112Gbps
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
92Ω High Speed Cable 112Gbps Technical Data
Insulation | FEP+FEP/PE FEP+ePTFE |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
92Ω High Speed Cable 112Gbps Product description
Cable Name |
Cross Section
(AWG) |
Insulation
| Insulation OD (mm) | Cable O.D. (mm) | Insertion Loss (26.56GHz) | Delay |
92Ω High Speed Cable 112Gbps | 30 | FEP+FEP/PE FEP+ePTFE | 0.48 0.55 | 1.02*1.75 1.0*1.8 | 7.6dB | 7ns |
28 | FEP+ePTFE
| 0.75 | 1.25*2.25
| 6.1dB | 7ns | |
26 | FEP+ePTFE
| 0.92 | 1.42*2.6
| 5.8dB | 7ns |
