RAE-109 Portable USB Veterinary Gastroscope | Two Working Channels | 1200 mm
FOB Price
- US $4500.0
1 - 1 piece
group nameVeterinary Gastroscope
-
Min Order1 piece
brand nameJeetVet
modelRAE-109
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 05 Dec 2025 18:10:02 GMT
Paramtents
Image Resolution: High Definition (HD)
Working Length 1200 mm
Pixels 1,000,000
Water & Air Supply, Suction Available
Two Working Channels Available
Foreign Body Removal Available
Packging & Delivery
Size53cm x44cm x18cm
Weight2kg / piece
Min Order1 piece
Briefing
RAE-109 portable veterinary endoscope features highly sensitive angulation controller, 360° steering and 180°bending, independent water & air supply channel, which is ideal for examining stomach and duodenum, foreign body removal of animals.
Detailed
Introduction to RAE-109 Portable USB Veterinary Gastroscope
The RAE-109 is a compact and lightweight portable veterinary endoscope, its flexible and slender insertion tube navigates the animal's gastrointestinal tract with minimal discomfort, ensuring comprehensive coverage. This pet endoscope built with high-quality materials, making it a long-lasting diagnostic tool for veterinarians and is suitable for lung lavage, foreign body removal, respiratory endoscopy, biopsy, minimally invasive surgery, gastric and duodenal examinations of small animals weighing less than 50KG, such as cats and dogs.

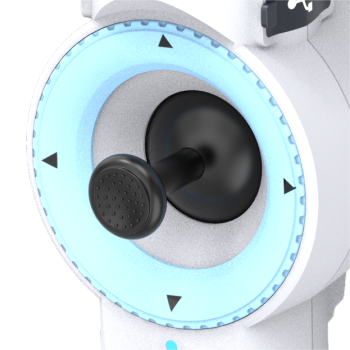

Joystick design enables 360° directional rotation
360° rotation and 180° bending
Four-layer medical grade material
Main Features
High-quality optical system
Provides HD resolution to ensure clear endoscopic images. 120° wider observation range. The depth of field from 7 mm to 100 mm makes it adaptable to different inspection depths.
Power source
The endoscope operates without internal electric power, drawing power from the user’s mobile phone. Compatible with Android, Windows, IOS system.
Convenient operation
The weight is less than 1KG. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures and provide top-notch diagnostic services wherever needed.
Durability & Efficiency
Flexible tube undergoes rigorous aging tests. Designed for over 25,000 bends, guaranteeing long-term reliability. Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.
Detailed Image of RAE-109 Portable USB Veterinary Gastroscope
Portable Veterinary Gastroscope Technical Parameters
General Parameters |
Brand
|
JeetVet
|
|
|
Model
|
RAE-109
|
||
|
Purpose
|
Veterinary endoscopy, mainly used for stomach and digestive tract examination of small and medium size animals
|
||
Optical Parameters | Depth of field | 7 mm - 100 mm | |
Viewing angle | 120° | ||
Pixels | 1,000,000 | ||
Resolution | HD | ||
Mechanical Parameters | Working length | 1200 mm | |
Outer diameter of the tube | 5.8 mm | ||
Inner diameter of the channel | 2.0 mm | ||
Independent water & air supply channel | 1.2 mm | ||
Insertion tube material | Four layer medical grade flexible material polyurethane, corrosion-resistant and antibacterial | ||
Bending angle | 180° | ||
Operation and Control | Control method | Handheld controller with joystick for 360° directional rotation control | |
Display | Displayed by user's smart phone, tablet or computer | ||
Lighting System | Light source type | Endoscope operates without internal electric power, drawing power from the user's mobile phone. | |
Illumination | LED light | ||
Connection and Compatibility | Connection interface | Use USB cable to connect with smart phones, tablet or computer | |
Compatible devices | Support connection to smart phone, tablet, computer for data transmission and real-time monitoring | ||
Other Functions | Disinfection method | Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection | |
Portability | Lightweight design, equipped with a portable case, convenient for carrying and use | ||
Memory | Internal memory of mobile phone | ||
User interface | Friendly operation interface | ||
Accessories | alligator forceps, tripod forceps, grasping forceps with net, cleaning brush and etc. | ||
Related Videos of RAE-109 Portable Veterinary Endoscope
JeetVet Veterinary Endoscopes 360° Directional Rotation vs. Traditional Endoscopes Two Directions
Compared to traditional endoscopes, JeetVet veterinary endoscopes with 360° rotation control offers more convenient and flexible operation. It's a shorter learning curve that veterinarians can quickly master its use.
Detailed Unpacking and Installation Instructions and Precautions
JeetVet portable veterinary gastroscope is a high-performance endoscopic device designed for veterinary use to meet the needs of animal gastrointestinal examinations. Animal endoscope has become an important tool for veterinary clinical diagnosis.
Connecting Endoscope with Tablet and Accessories
JeetVet portable veterinary gastroscope empowers veterinarians with enhanced visibility within an animal's gastrointestinal tract and enabling accurate diagnosis of gastrointestinal conditions. It is an essential tool in veterinary diagnostics.
Download RAE-109 Portable Veterinary Endoscope Brochure
Portable Veterinary Gastroscope Application Scenario
Applicable Scenarios
Veterinary Clinics: Ideal for routine gastrointestinal examinations, the RAE-109 provides veterinarians with the necessary tools to diagnose and treat a wide range of conditions effectively.
Veterinary Hospitals: Essential for high-volume settings where reliable and efficient diagnostic tools are crucial for patient care.
Field Services: Its portability makes the RAE-109 an excellent choice for mobile veterinary services, ensuring that high-quality diagnostics are available in remote and rural areas.
Specialty Practices: Perfect for specialized veterinary clinics focusing on gastroenterology, providing precise and detailed imaging for specialized care.
Precautions
The following actions are strictly prohibited during the use of veterinary gastroscopes.
Fold the joint between the handle and the tube
Coil the flexible tube
Fold the bending section by hands
Portable Veterinary Gastroscope Packaging Display
After-Sales Guarantee
- Warranty: Comprehensive warranty and support.
- Customer service: Get technical support and training from the manufacturer.
- We are committed to ensuring your complete satisfaction with our products. Our After-Sales Service Guarantee provides you with comprehensive support, including prompt responses to inquiries, technical assistance. Should you encounter any issues, our dedicated customer service team is available to resolve them efficiently and effectively. We stand by the quality of our products and are here to ensure that your experience with us is nothing short of excellent.
